Yaw Rate Sensor Communication Stop Mode

Yaw Rate Sensor Communication Stop Mode

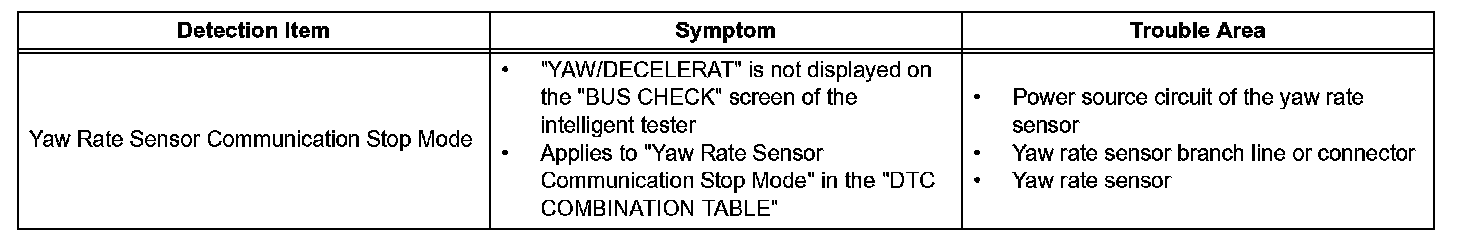

Detection Item:




DESCRIPTION

HINT: "YAW/DECELERATE" refers to the circuit that includes the yaw rate sensor.

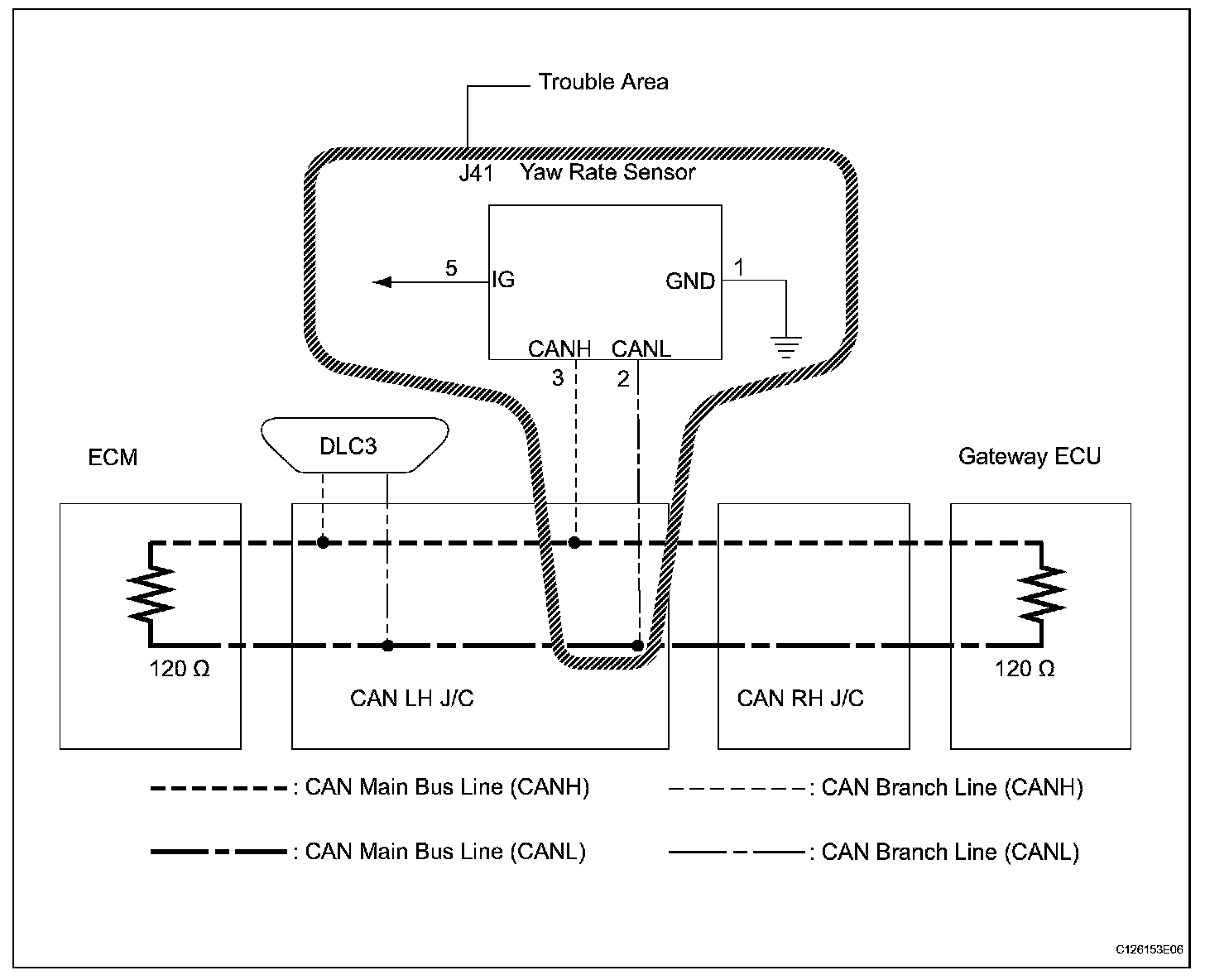

Wiring Diagram:

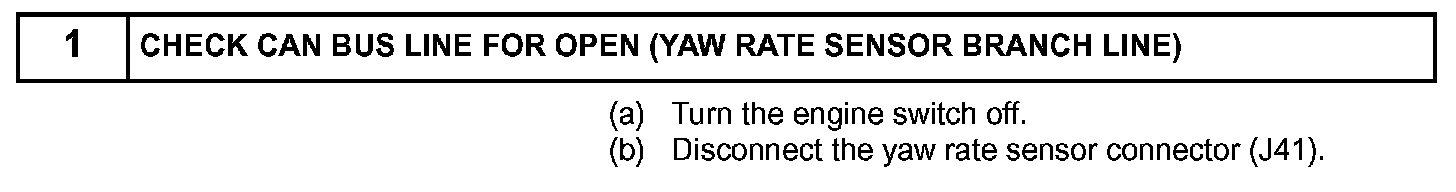

Step 1:

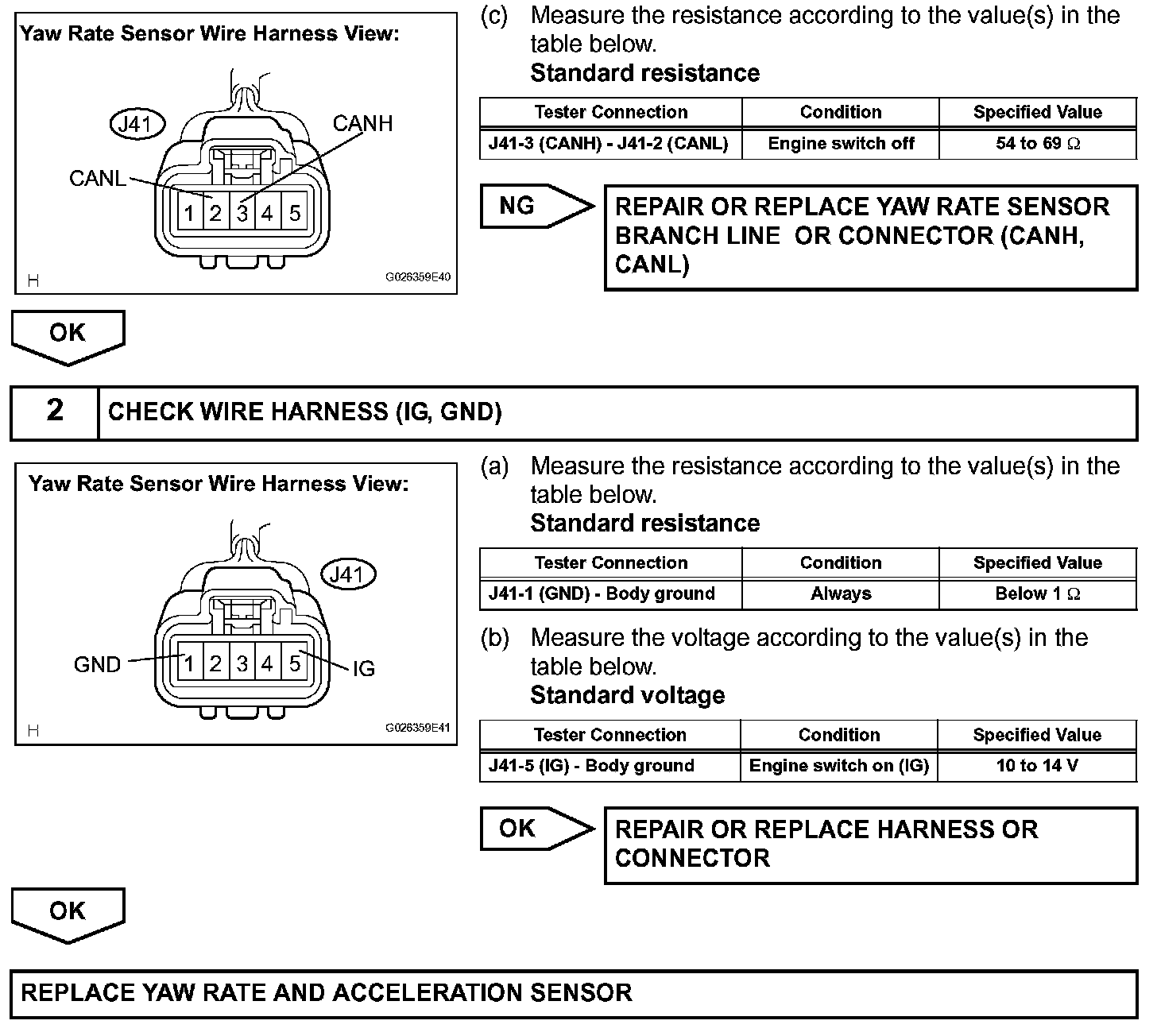

Step 1(continued)-2:




INSPECTION PROCEDURE
