Diagnosis System
- DESCRIPTION
- Smart access system with push-button start data and the Diagnostic Trouble Codes (DTCs) can be read in the Data Link Connector 3 (DLC3) of the vehicle. When the system seems to be malfunctioning, use the intelligent tester to check for malfunctions and perform repairs.
- CHECK DLC3

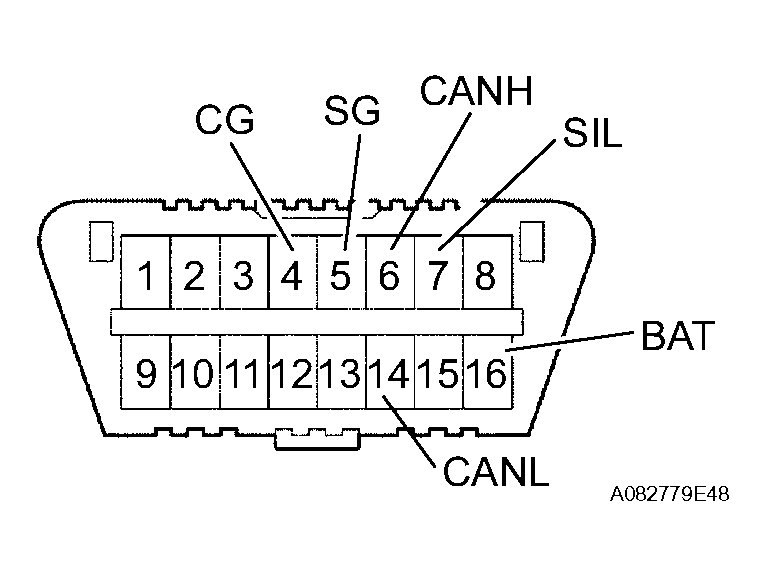

The vehicle uses ISO 15765-4 for communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.
WIRING COLOR TERMINAL DESCRIPTION
| Symbols (Terminal No.) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| SIL (7) - SG (5) | Bus "+" line | During transmission | Pulse generation |
| CG (4) - Body ground | Chassis ground | Always | Below 1 Ω |
| SG (5) - Body ground | Signal ground | Always | Below 1 Ω |
| BAT (16) - Body ground | Battery positive | Always | 11 to 14 V |
| CANH (6) - CANL (14) | HIGH-level CAN bus line | Engine switch OFF | 54 to 69 Ω |
| CANH (6) - Battery positive (+) | HIGH-level CAN bus line | Engine switch OFF | 1 MΩ or higher |
| CANH (6) - CG (4) | HIGH-level CAN bus line | Engine switch OFF | 1 kΩ or higher |
| CANL (14) - Battery positive (+) | LOW-level CAN bus line | Engine switch OFF | 1 MΩ or higher |
| CANL (14) - CG (4) | LOW-level CAN bus line | Engine switch OFF | 1 kΩ or higher |
If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.
HINT:
Connect the cable of the intelligent tester (with CAN VIM) to the DLC3, turn the engine switch on (IG) and attempt to use the tester. If the display indicates that a communication error has occurred, there is a problem either with the vehicle or with the tester.
- If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
- If communication is still not possible when the tester is connected to another vehicle, the problem may be in the tester itself. Consult the Service Department listed in the tester's instruction manual.
