Entry Lock Switch Circuit: Description: Wiring Diagram

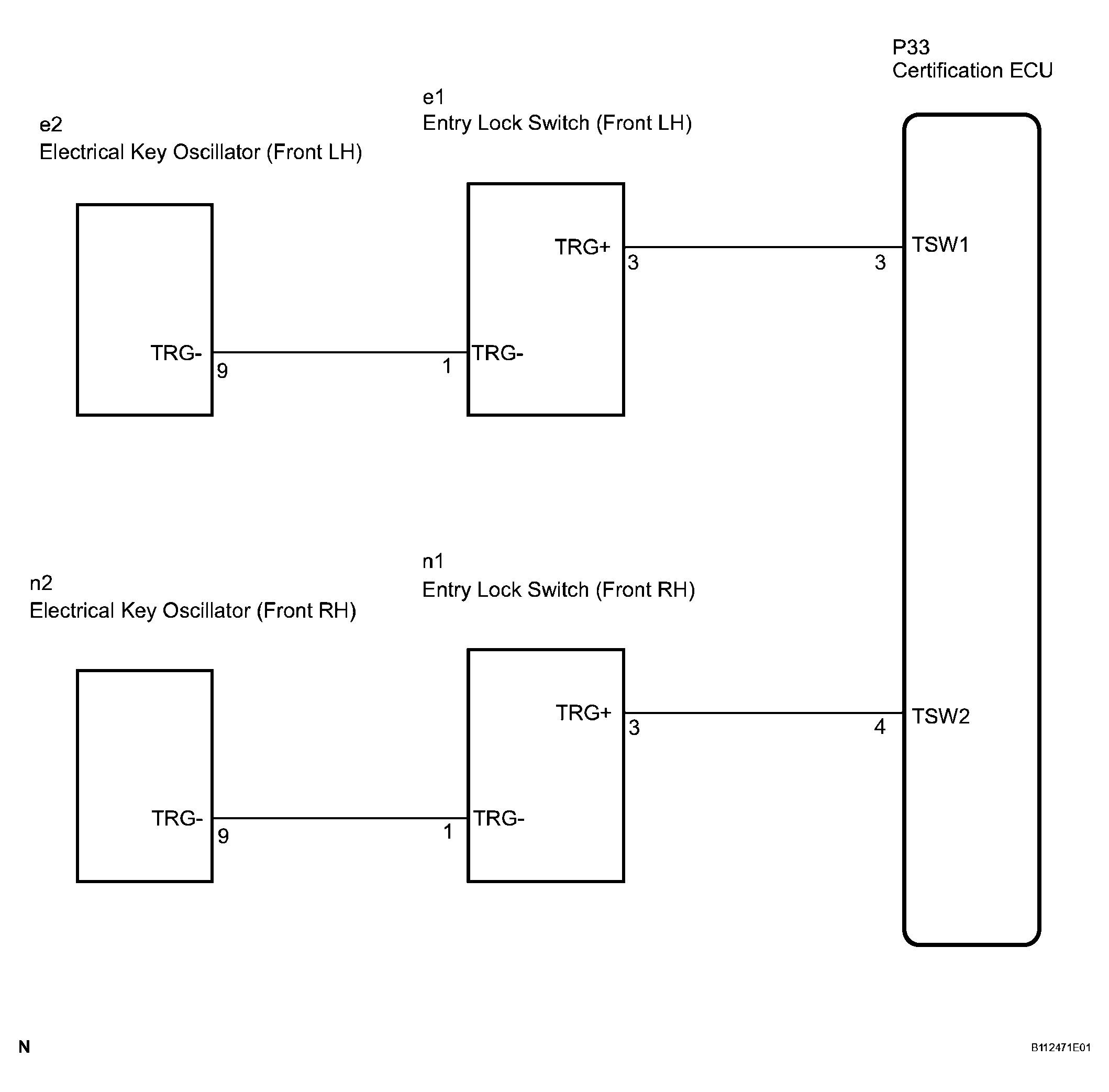

Fig 1: Wiring Diagram - Entry Lock Switch

G04049902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT ENTRY LOCK SWITCH

Remove the outside handle.
Disconnect the connectors.
Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection (Symbols)	Condition	Specified Condition
e1-1 (TRG-) - e1-3 (TRG+)	Lock switch not pushed	10 kΩor higher
e1-1 (TRG-) - e1-3 (TRG+)	Lock switch pushed	Below 1 Ω
n1-1 (TRG-) - n1-3 (TRG+)	Lock switch not pushed	10 kΩor higher
n1-1 (TRG-) - n1-3 (TRG+)	Lock switch pushed	Below 1 Ω

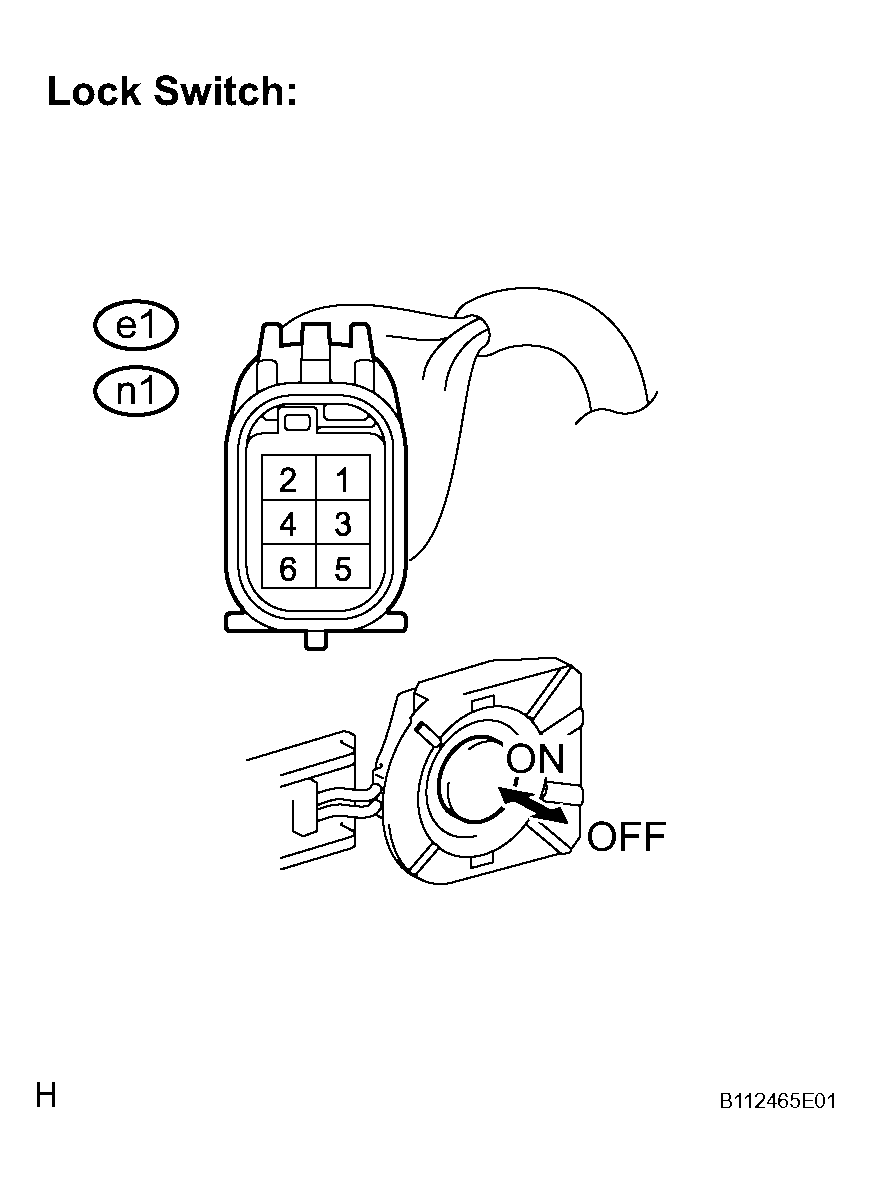

Fig 2: Identifying Lock Switch E1 And N1 Connector Terminal

G04049903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPLACE OUTSIDE HANDLE ASSEMBLY

OK: Go to next step

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - ENTRY LOCK SWITCH)

Disconnect the P33 ECU connector.
Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection (Symbols)	Condition	Specified Condition
P33-3 (TSW1) - e1-3 (TRG+)	Always	Below 1 Ω
P33-4 (TSW2) - n1-3 (TRG+)	Always	Below 1 Ω
P33-3 (TSW1) - Body ground	Always	10 kΩor higher
P33-4 (TSW2) - Body ground	Always	10 kΩor higher

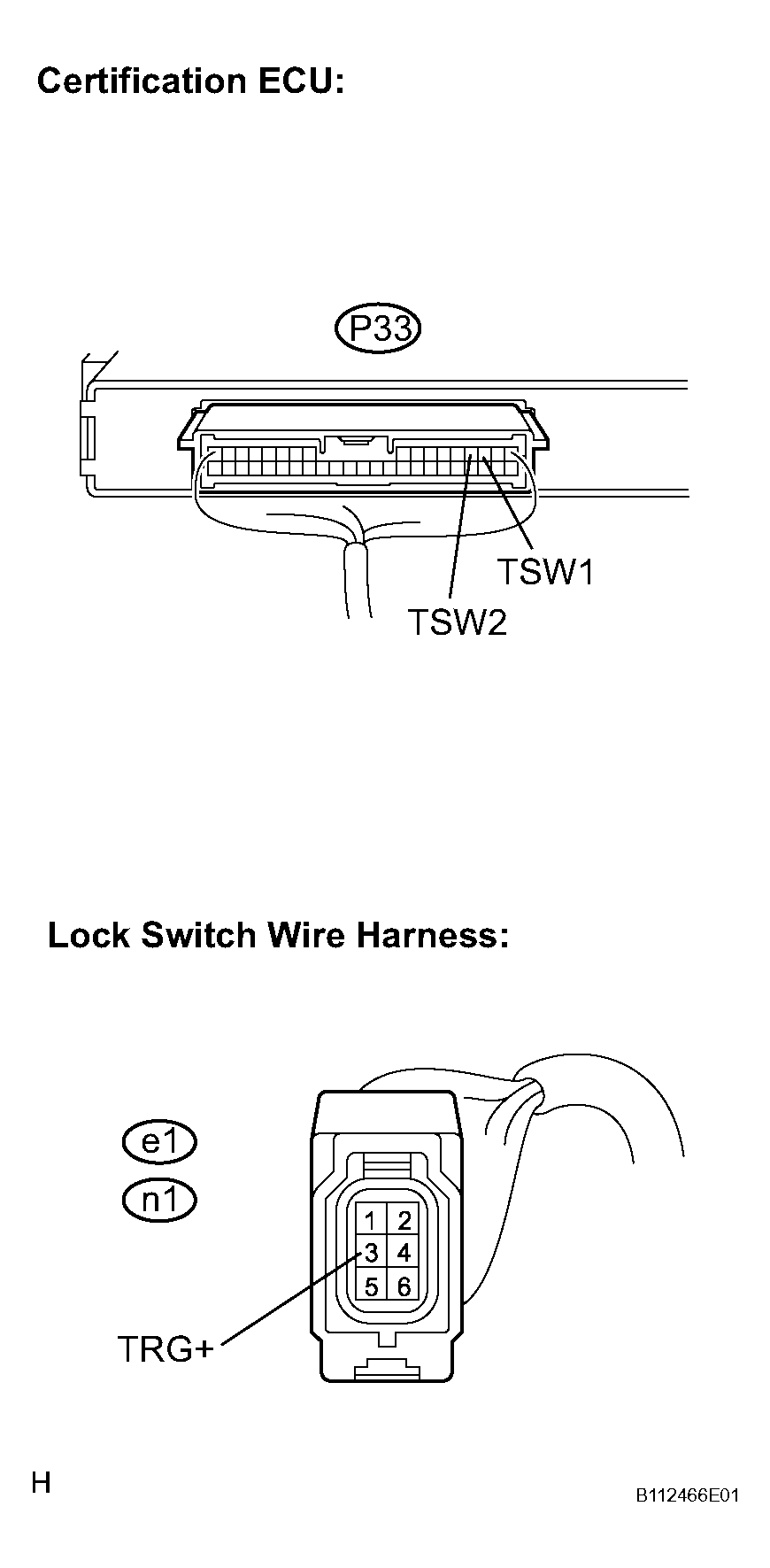

Fig 3: Identifying P33 Connector Terminal Lock Switch E1 And N1 Connector

G04049904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

CHECK HARNESS AND CONNECTOR (ELECTRICAL KEY OSCILLATOR - ENTRY LOCK SWITCH)

Disconnect the door oscillator connector.
Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION

Tester connection	Condition	Specified condition
e2-9 (TRG-) - e1-1 (TRG-)	Always	Below 1 Ω
n2-9 (TRG-) - n1-1 (TRG-)	Always	Below 1 Ω
e2-9 (TRG-) - Body ground	Always	10 kΩor higher
n2-9 (TRG-) - Body ground	Always	10 kΩor higher

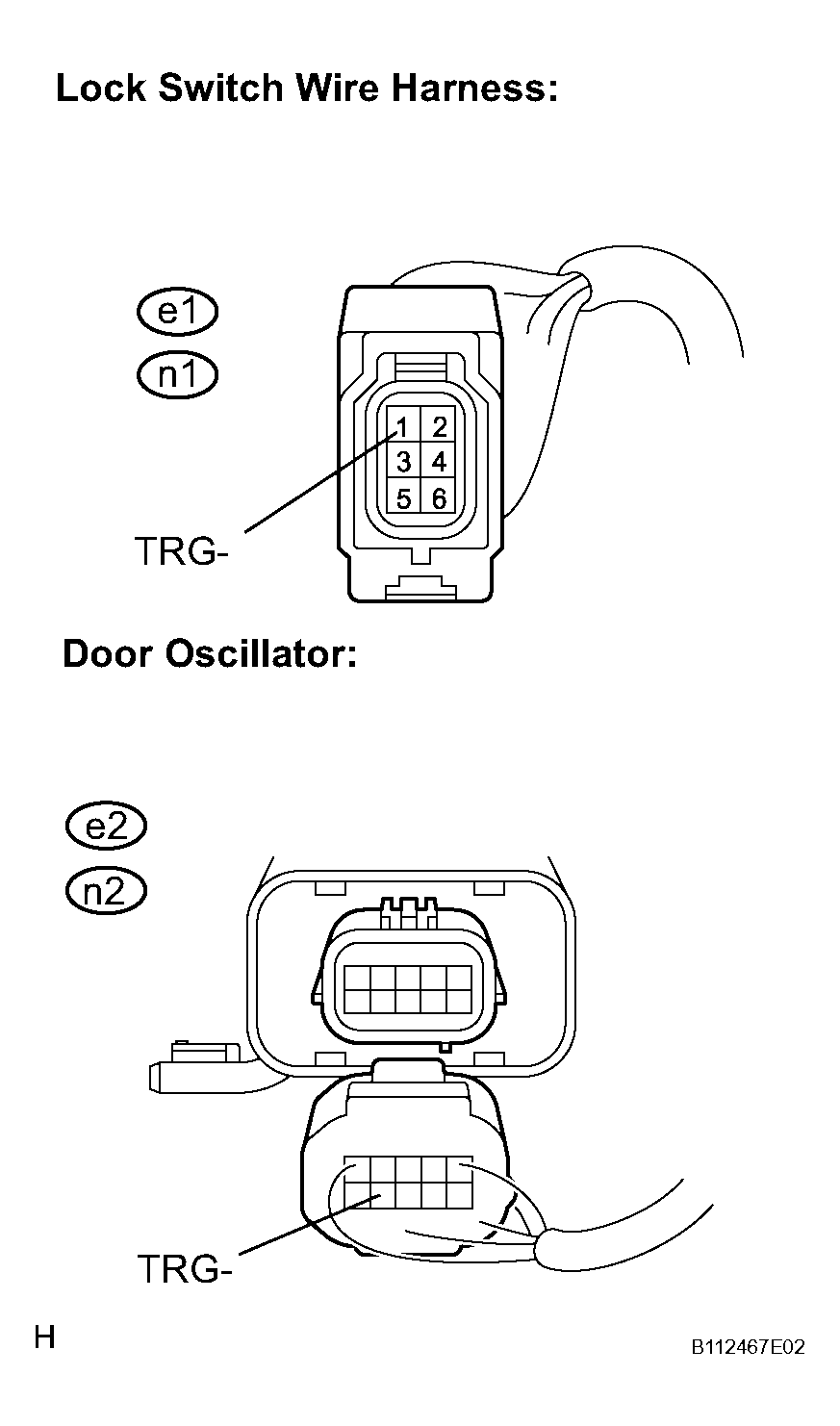

Fig 4: Identifying Harness And Connector (Electrical Key Oscillator - Entry Lock Switch)

G04049905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

CHECK AND REPLACE ELECTRICAL KEY OSCILLATOR
1. Replace the electrical key oscillator.
2. Check that the entry LOCK/UNLOCK function operates normally.
OK:

Entry LOCK/UNLOCK function operates normally.

NG : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

OK : END (ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)
