Accelerator Pedal: Removal

  1. REMOVE ACCELERATOR PEDAL
    1. Disconnect the accelerator pedal position sensor connector.
    2. Remove the 2 bolts and accelerator pedal.
    NOTE:
    • Avoid physical shock to the accelerator pedal.
    • Do not disassemble the accelerator pedal assembly.

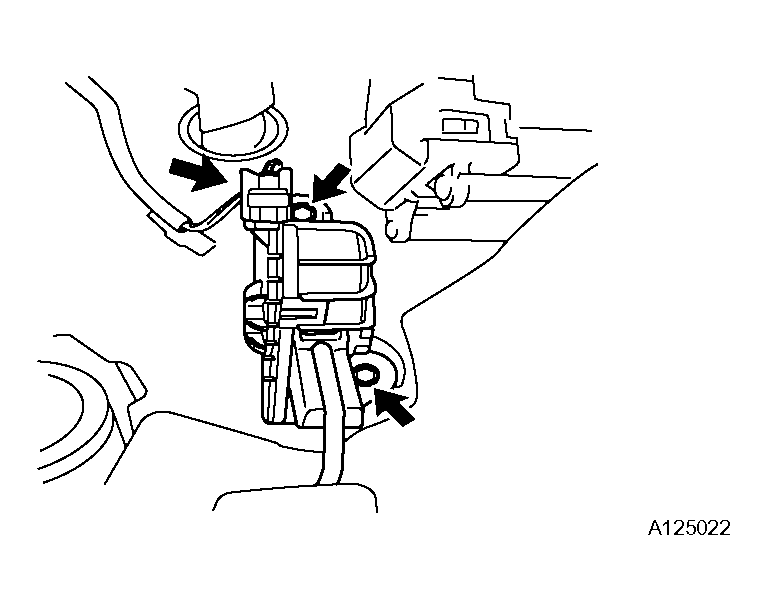

    Fig 1: Identifying Accelerator Pedal Bolts
    G04043969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
