Engine Coolant Temperature Sensor: Installation

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
   1. Install a new gasket to the engine coolant temperature sensor.
   2. Install the engine coolant temperature sensor.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

   3. Connect the engine coolant temperature sensor connector.
2. INSTALL INTAKE MANIFOLD (See  INSTALLATION  )
3. INSTALL INTAKE AIR SURGE TANK ASSEMBLY (See  INSTALLATION  )
4. INSTALL COLD START INJECTOR (See  INSTALLATION  )
5. INSTALL THROTTLE BODY (See  INSTALLATION   )
6. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (See  INSTALLATION   )
7. CONNECT NO. 2 VENTILATION HOSE (See  INSTALLATION   )
8. ADD ENGINE COOLANT (See  ON-VEHICLE INSPECTION  )
9. CHECK FOR ENGINE COOLANT LEAKS (See  ON-VEHICLE INSPECTION  )
10. CHECK FOR FUEL LEAKS (See  ON-VEHICLE INSPECTION  )
11. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  INSTALLATION  )
12. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (See  INSTALLATION  )
13. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (See  INSTALLATION  )
14. INSTALL FRONT WIPER ARM HEAD CAP (See  INSTALLATION  )
15. INSTALL ROOF DRIP SIDE FINISH MOULDING RH
16. INSTALL ROOF DRIP SIDE FINISH MOULDING LH
17. INSTALL FRONT FENDER PROTECTOR UPPER RH (See  INSTALLATION  )
18. INSTALL FRONT FENDER PROTECTOR UPPER LH (See  INSTALLATION  )
19. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSTALLATION  )
20. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
21. INSTALL ENGINE ROOM SIDE COVER RH (See  INSTALLATION  )
22. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )

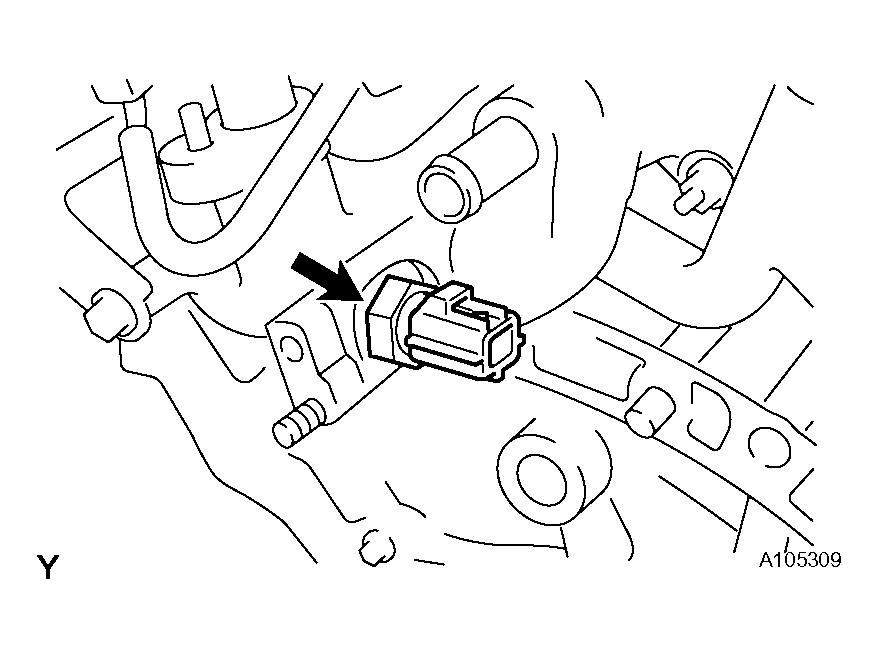

Fig 1: Identifying Engine Coolant Temperature Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
