Integration Relay: Installation

  1. INSTALL INTEGRATION RELAY
    1. Connect the 3 connectors.
    2. Attach the integration relay to the engine room No. 2 relay block.
    3. Install the No. 2 relay block cover.
  2. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
  3. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )

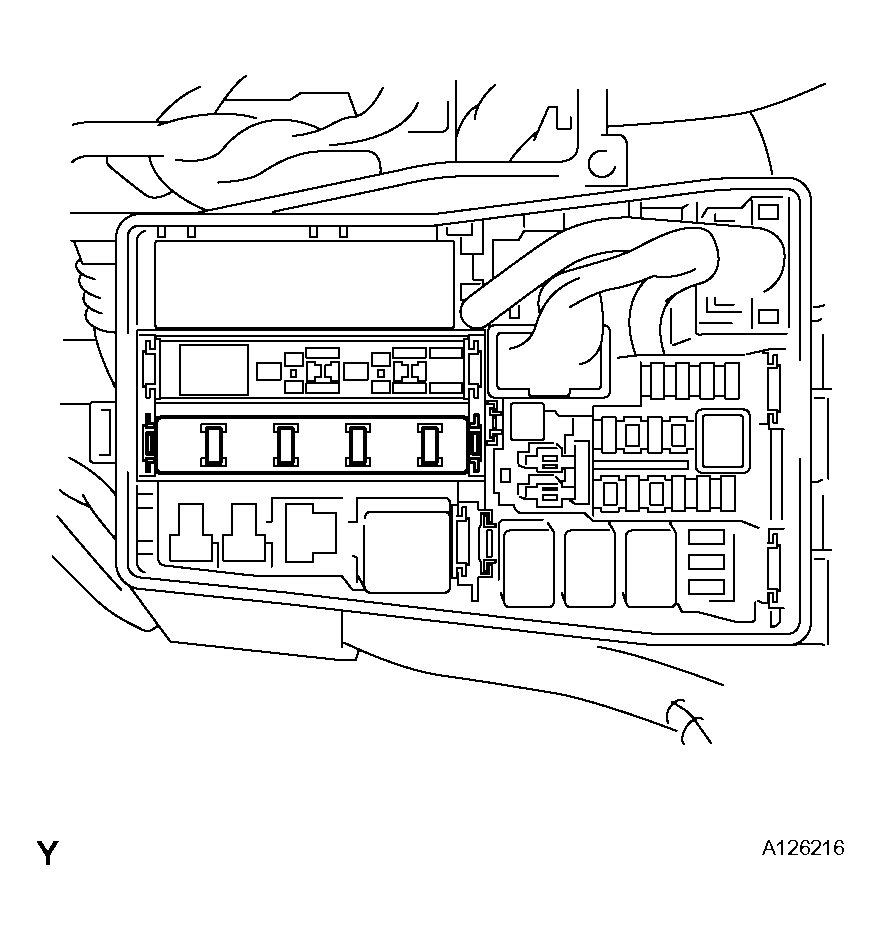

Fig 1: Identifying Integration Relay Location
G04043957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
