Knock Sensor: Inspection

1. INSPECT KNOCK SENSOR
   1. Measure the resistance between the terminals.

Standard resistance:

120 to 280 kΩ at 20°C (68°F)

If the result is not as specified, replace the sensor.

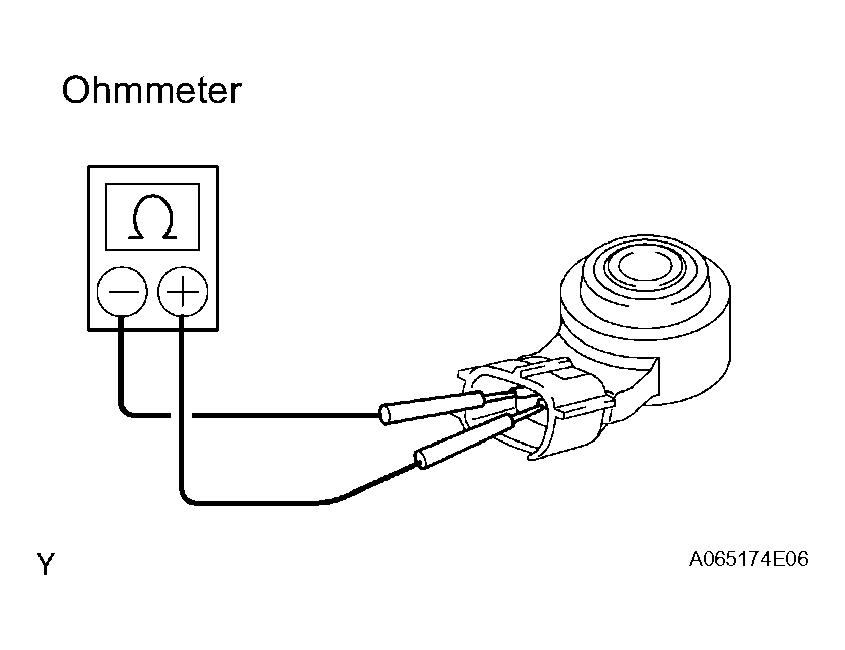

Fig 1: Measuring Resistance Between Knock Sensor Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
