Knock Sensor: Installation

  1. INSTALL KNOCK SENSOR
    1. Install the 2 knock sensors so that they are horizontal as shown in the illustration. Then install the 2 bolts.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      HINT:

      It is acceptable for the knock sensor to be tilted +10° to -5°.

    2. Connect the 2 knock sensor connectors.

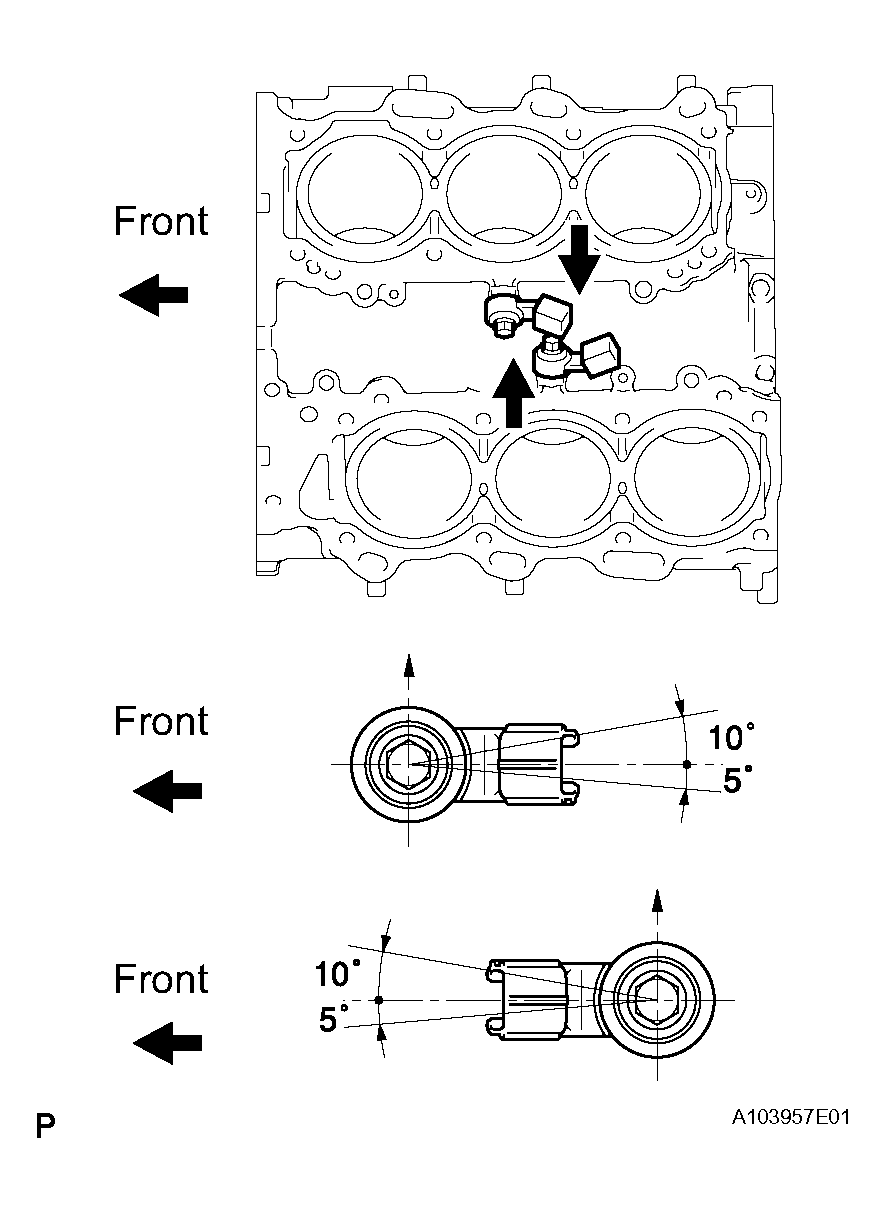

    Fig 1: Identifying Knock Sensors
    G04043949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL INJECTOR SEAL (See  INSTALLATION  )
  3. INSTALL INJECTOR (See  INSTALLATION  )
  4. INSTALL NO. 2 FUEL DELIVERY PIPE (See  INSTALLATION  )
  5. INSTALL NO. 1 FUEL DELIVERY PIPE (See  INSTALLATION  )
  6. INSTALL NO. 3 FUEL PIPE (See  INSTALLATION  )
  7. CONNECT NO. 2 FUEL PIPE (See  INSTALLATION  )
  8. INSTALL FUEL PUMP ASSEMBLY (See  INSTALLATION  )
  9. INSTALL NO. 2 FUEL PIPE (See  INSTALLATION  )
  10. INSTALL NO. 1 FUEL PIPE (See  INSTALLATION  )
  11. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY (See  INSTALLATION  )
  12. INSTALL INTAKE MANIFOLD (See  INSTALLATION  )
  13. INSTALL INTAKE AIR SURGE TANK (See  INSTALLATION  )
  14. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (See  INSTALLATION   ))
  15. CONNECT NO. 2 VENTILATION HOSE (See  INSTALLATION   )
  16. ADD ENGINE COOLANT (See  ON-VEHICLE INSPECTION  )
  17. CHECK FOR ENGINE COOLANT LEAKAGE (See  ON-VEHICLE INSPECTION  )
  18. CHECK FOR FUEL LEAKAGE (See  ON-VEHICLE INSPECTION  )
  19. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  INSTALLATION  )
  20. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (See  INSTALLATION  )
  21. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (See  INSTALLATION  )
  22. INSTALL FRONT WIPER ARM HEAD CAP (See  INSTALLATION  )
  23. INSTALL ROOF DRIP SIDE FINISH MOULDING RH
  24. INSTALL ROOF DRIP SIDE FINISH MOULDING LH
  25. INSTALL FRONT FENDER PROTECTOR UPPER RH (See  INSTALLATION  )
  26. INSTALL FRONT FENDER PROTECTOR UPPER LH (See  INSTALLATION  )
  27. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSTALLATION  )
  28. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
  29. INSTALL ENGINE ROOM SIDE COVER RH (See  INSTALLATION  )
  30. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
  31. CHECK FUNCTION THROTTLE BODY (See  ON-VEHICLE INSPECTION   )
