Camshaft Timing Oil Control Valve Assembly: Components

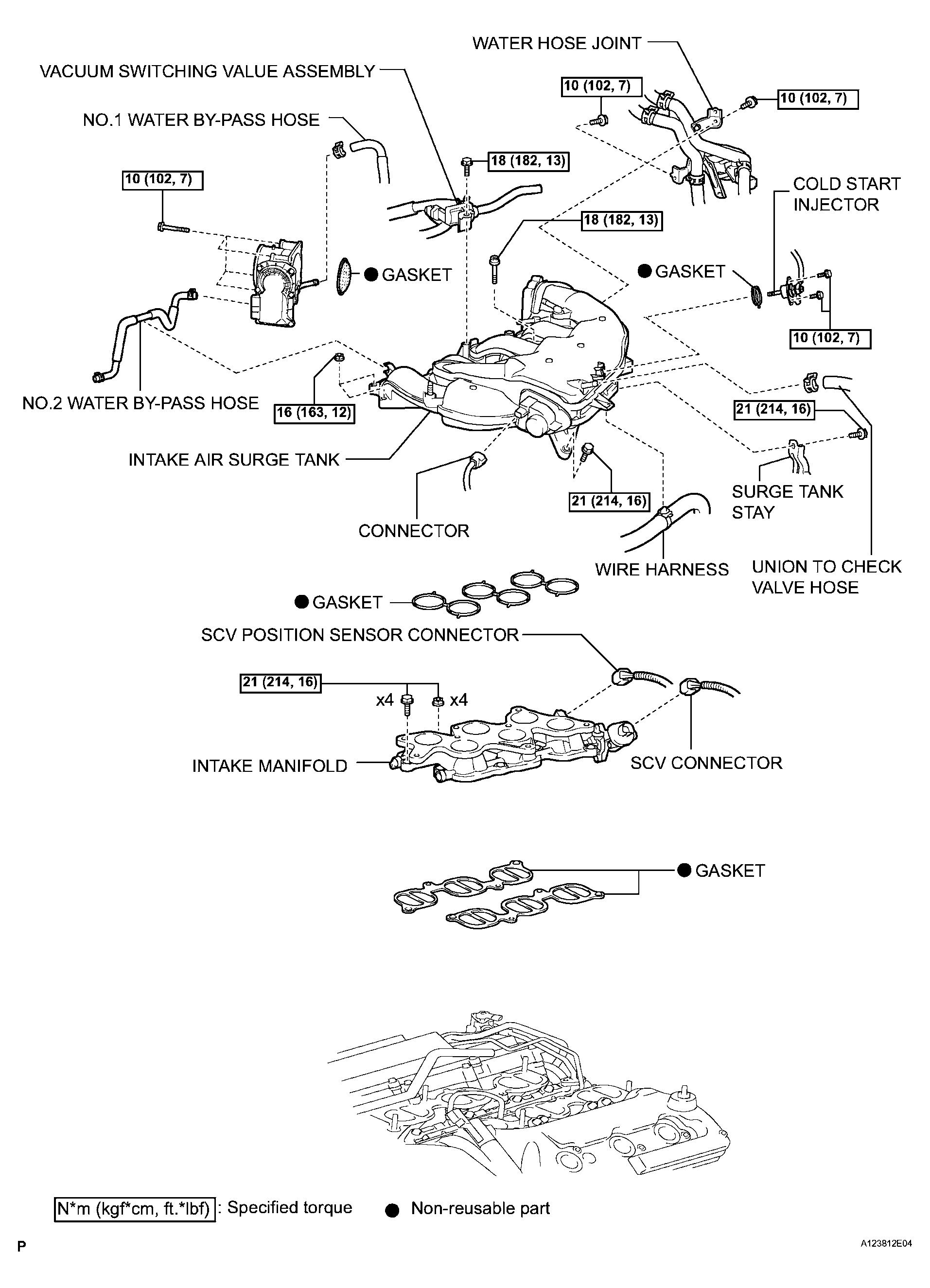

Fig 1: Exploded View Of Camshaft Timing Oil Control Valve Assembly With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

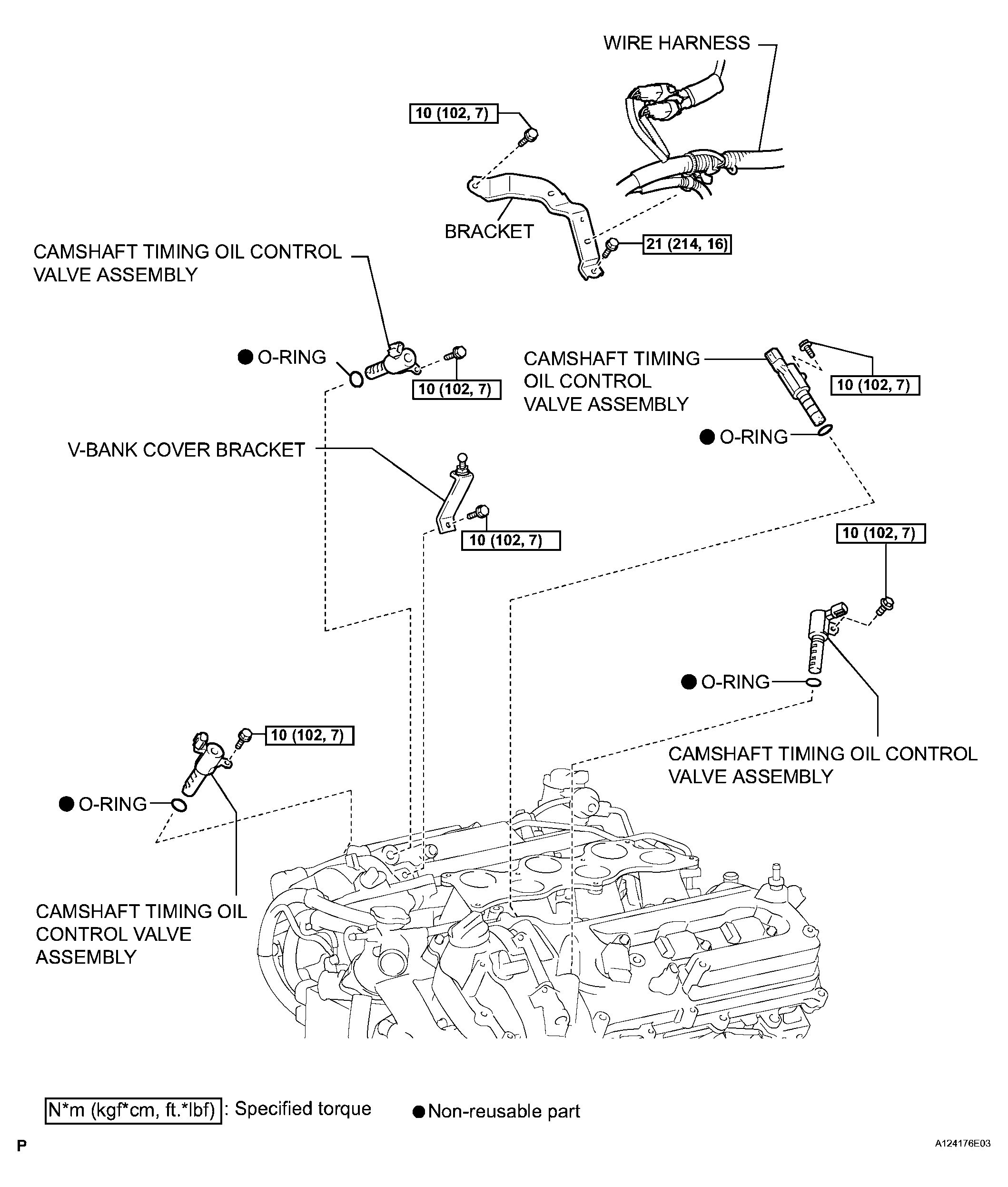

Fig 2: Exploded View Of Camshaft Timing Oil Control Valve Assembly With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

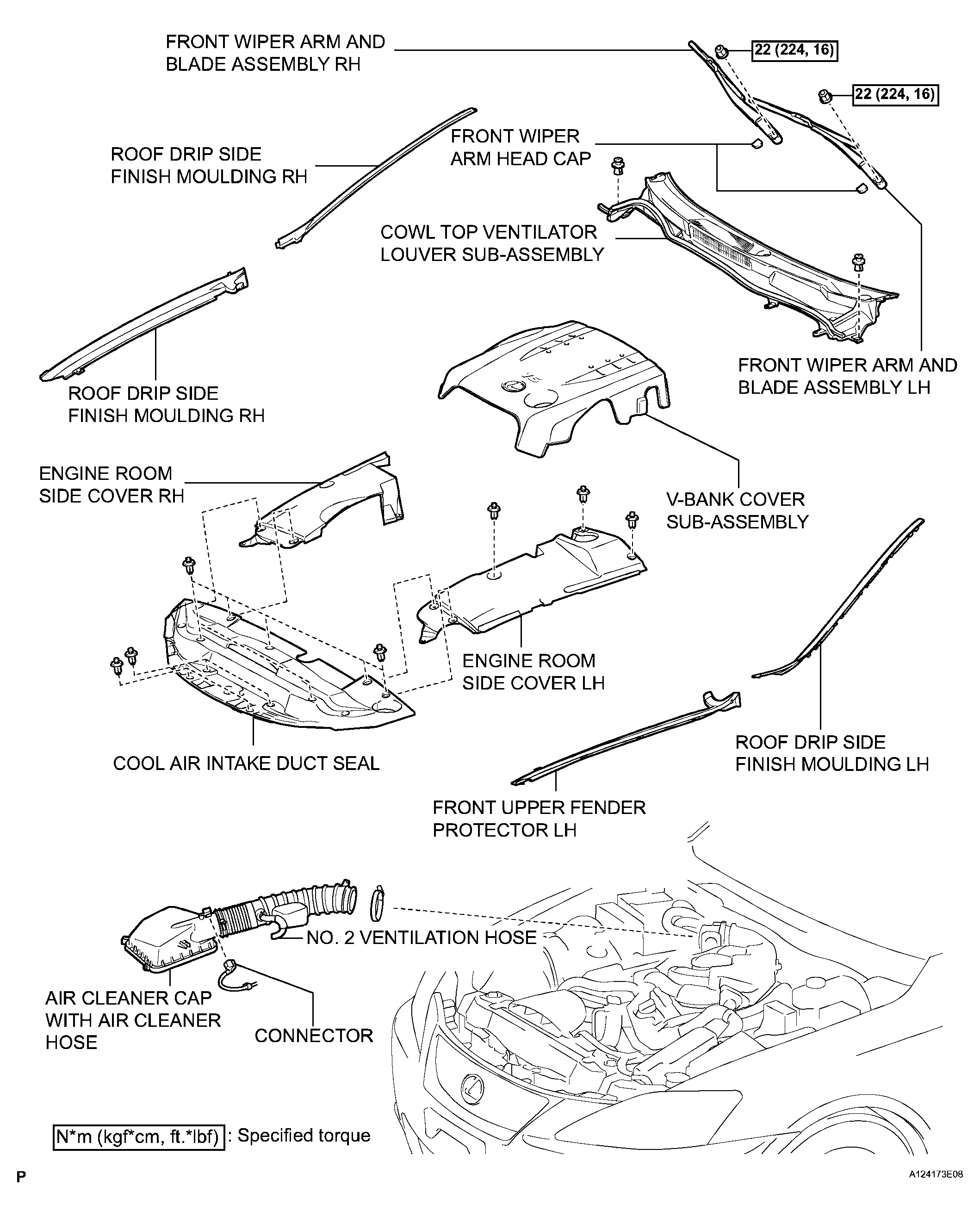

Fig 3: Exploded View Of Camshaft Timing Oil Control Valve Assembly With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
