Power Seat Control Module: Locations

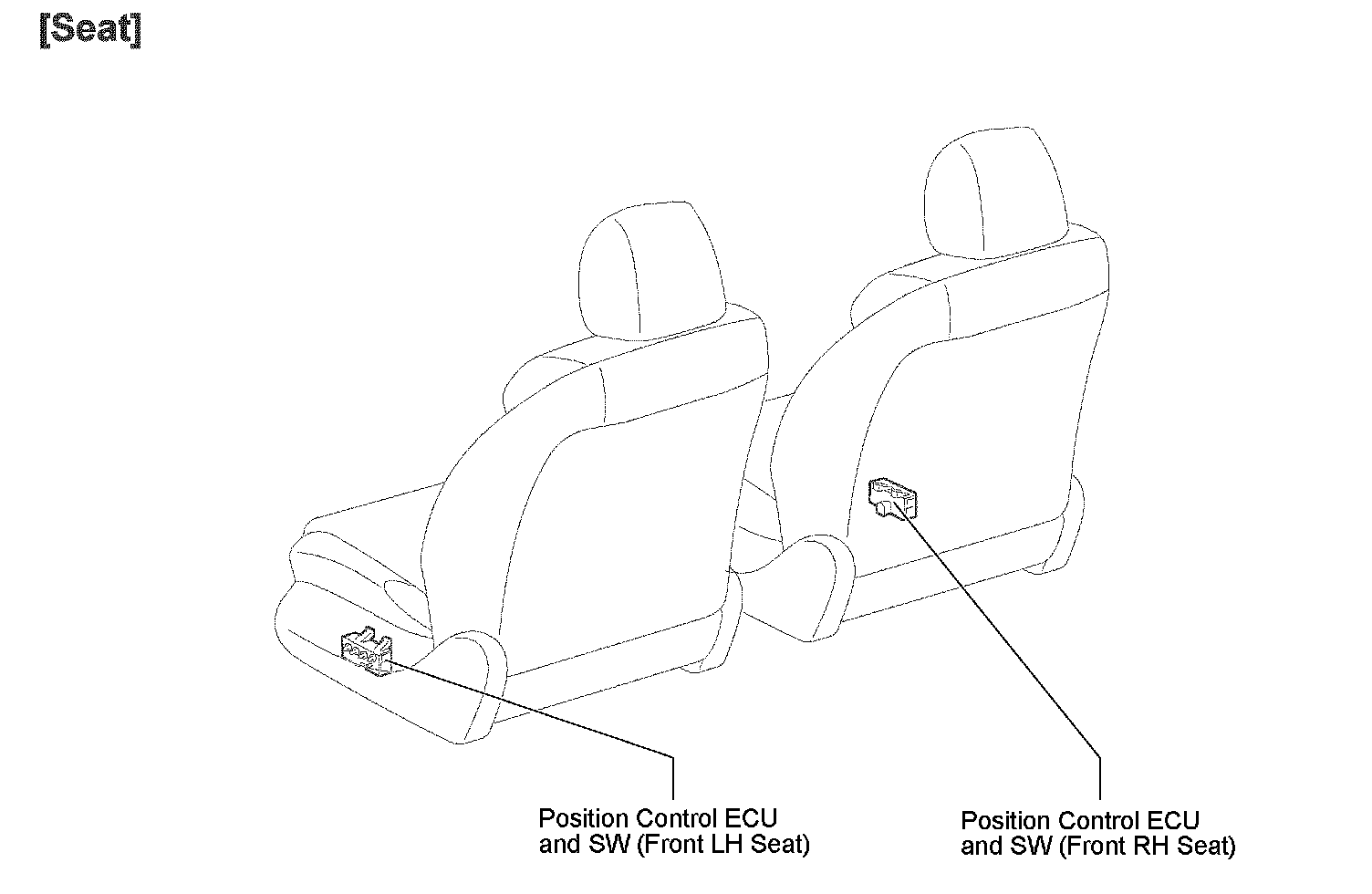

Seat:



Front Power Seat Control System(w/ Seat Position Memory System):



Front Power Seat Control System(w/ Seat Position Memory System):

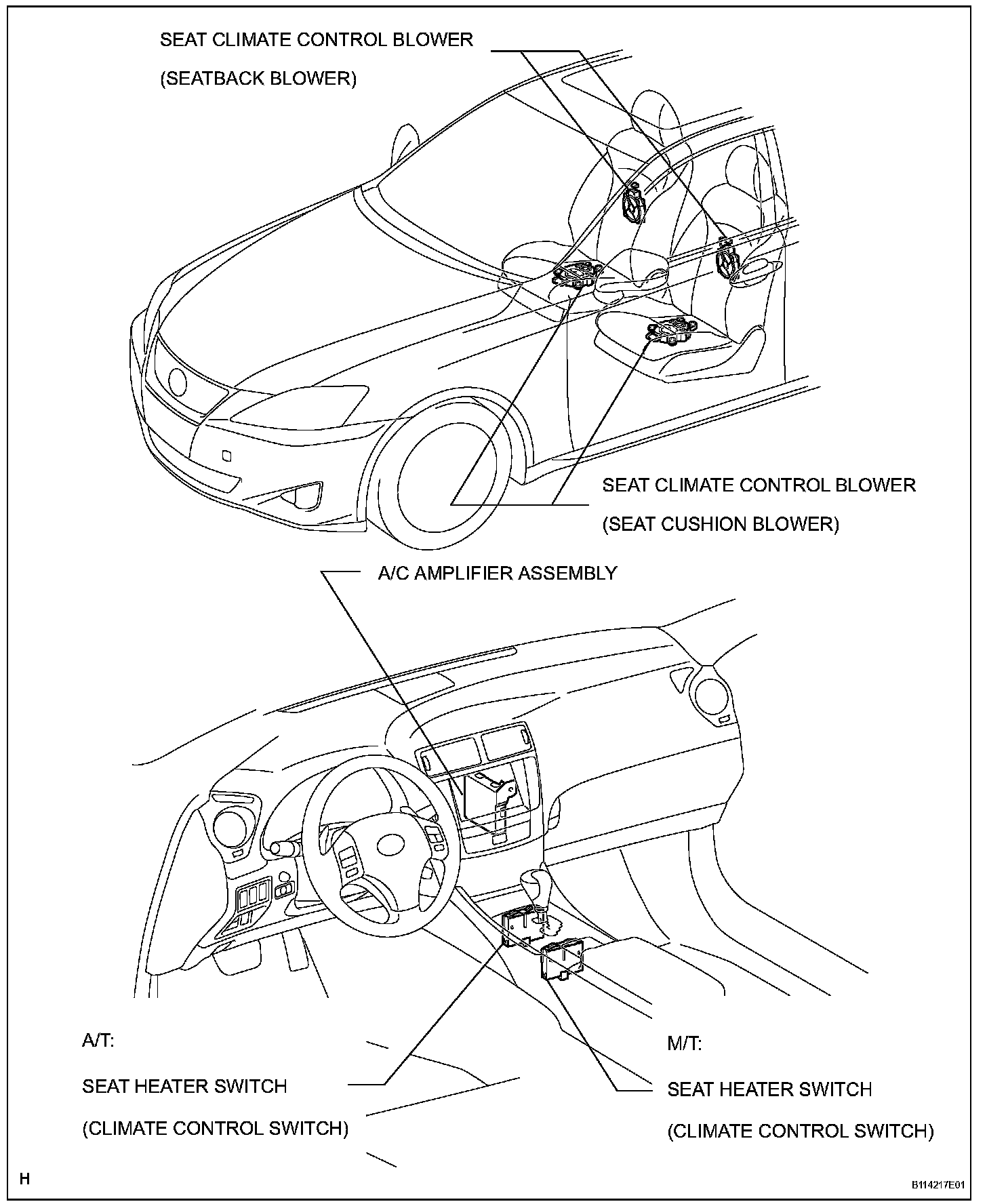

Climate Control Seat System:
