System Diagram

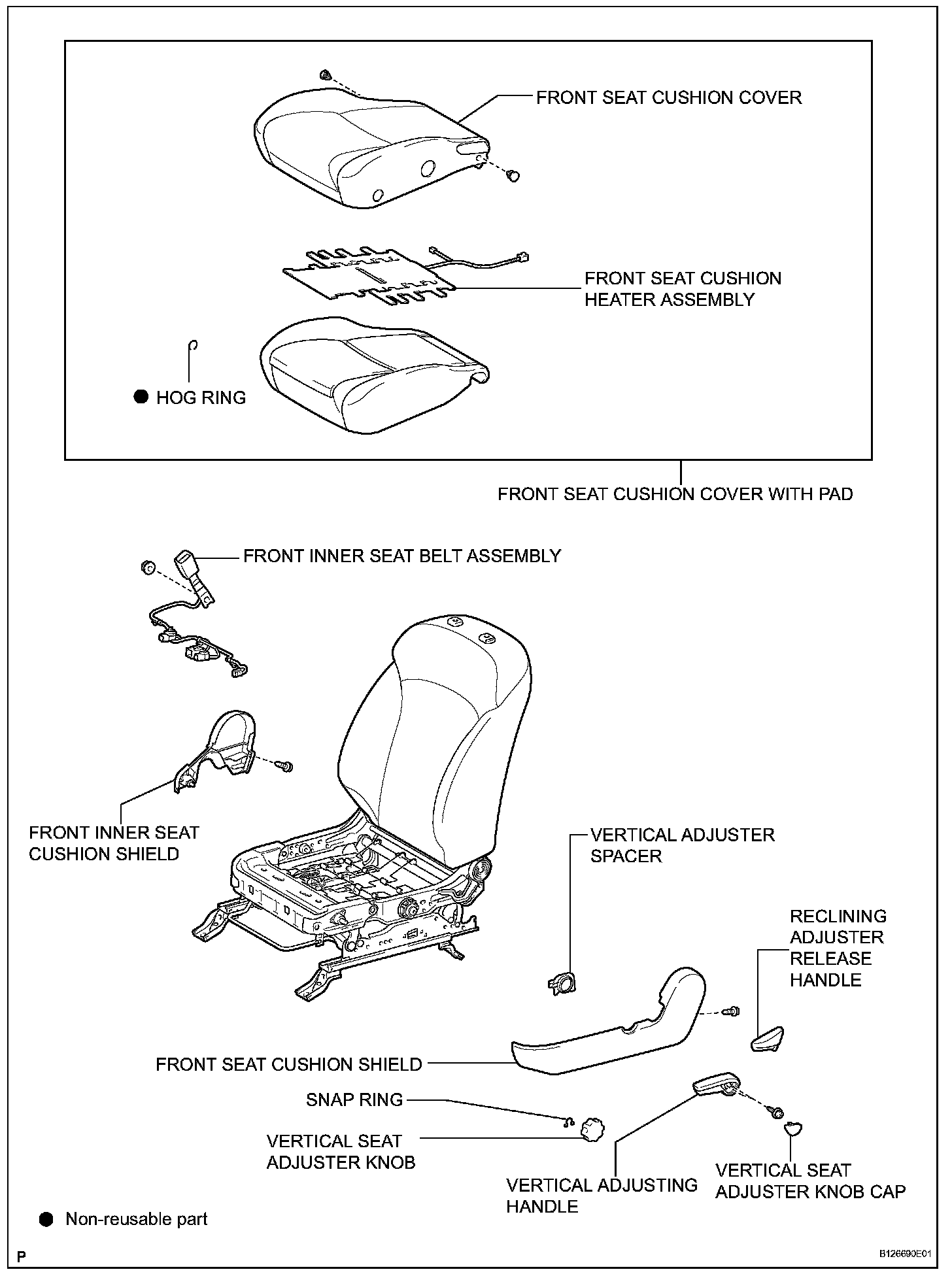

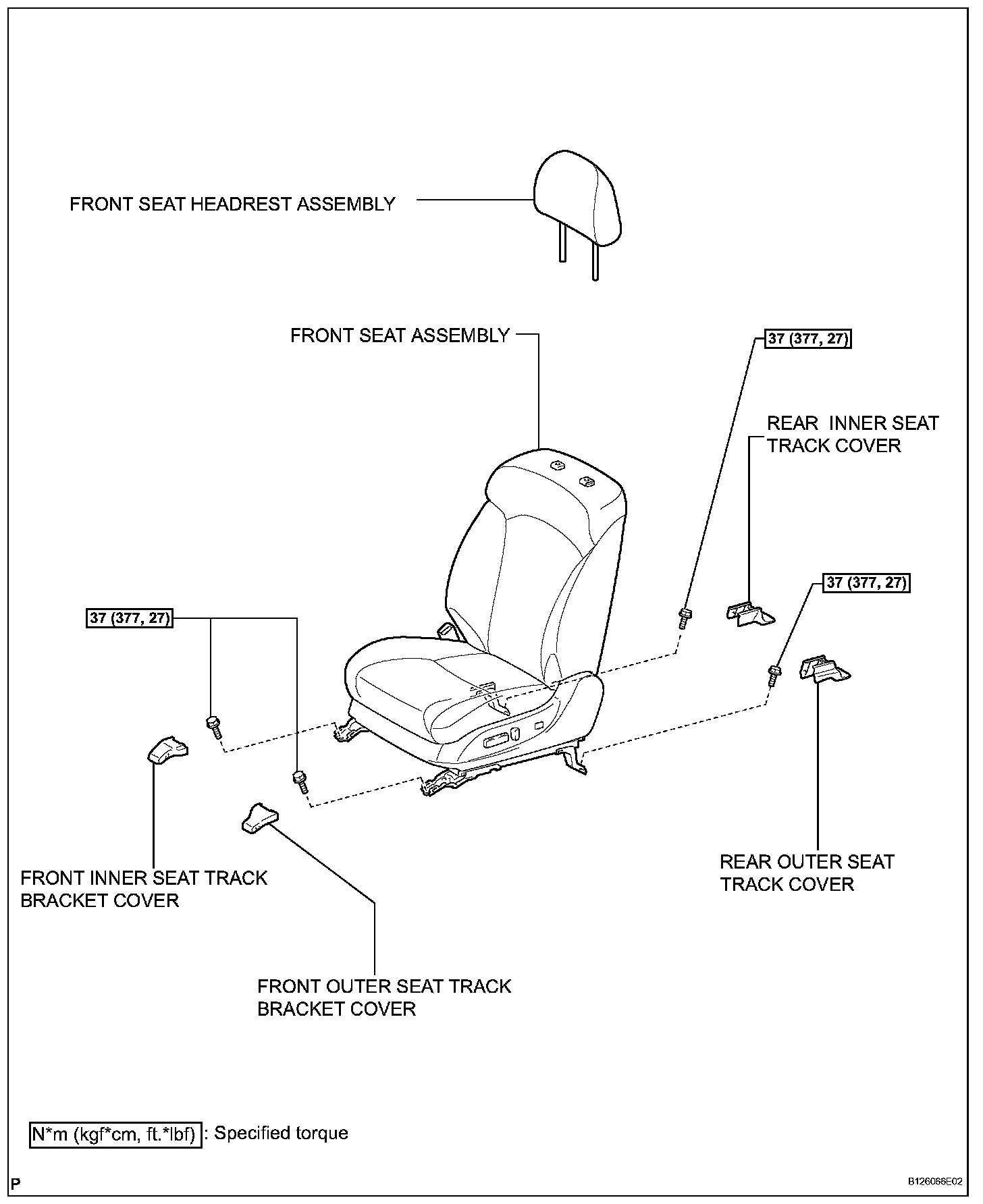

Front Seat Assembly (for Manual Seat):

Front Seat Assembly (for Manual Seat):

Front Seat Assembly (for Manual Seat):

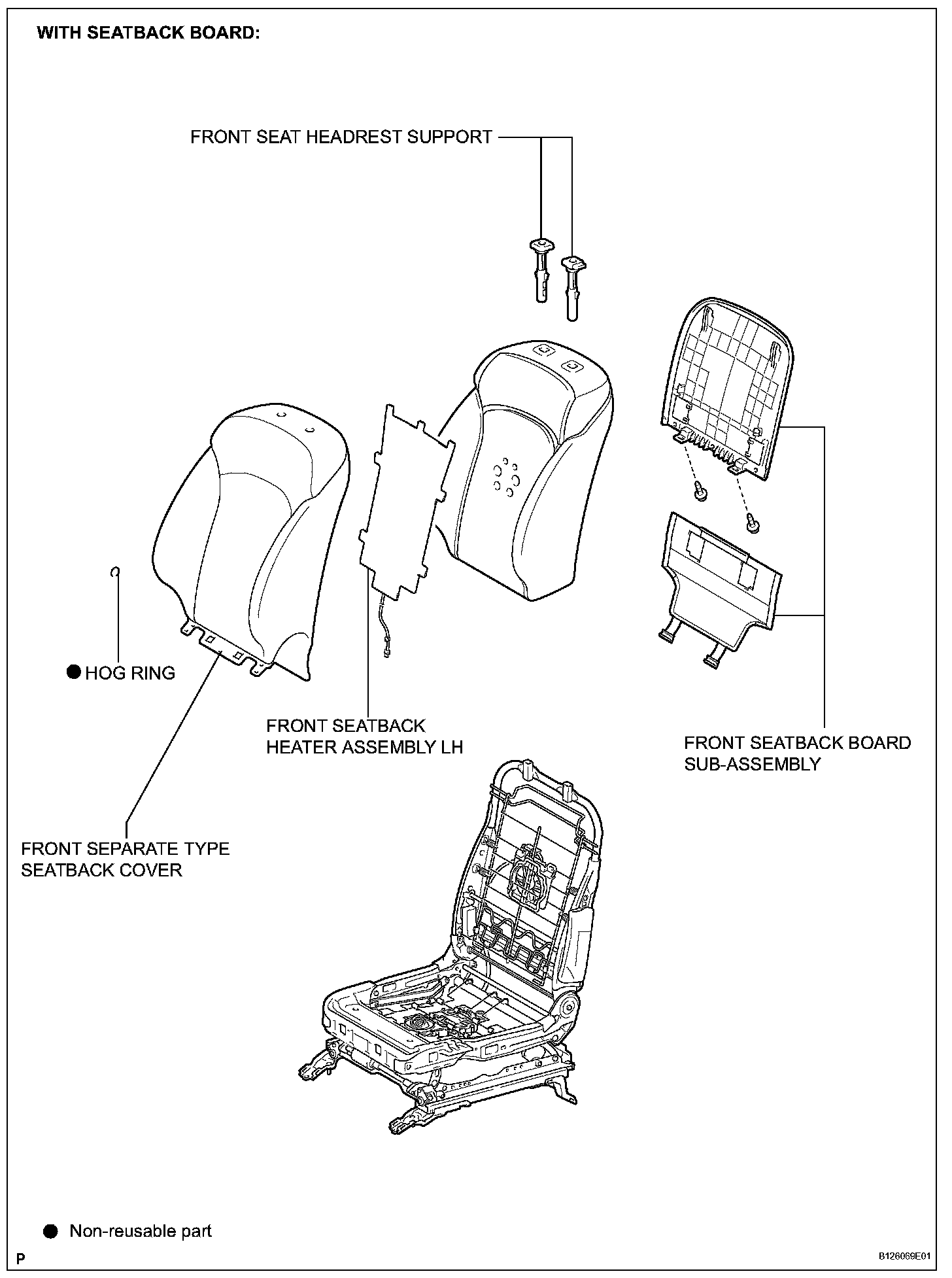

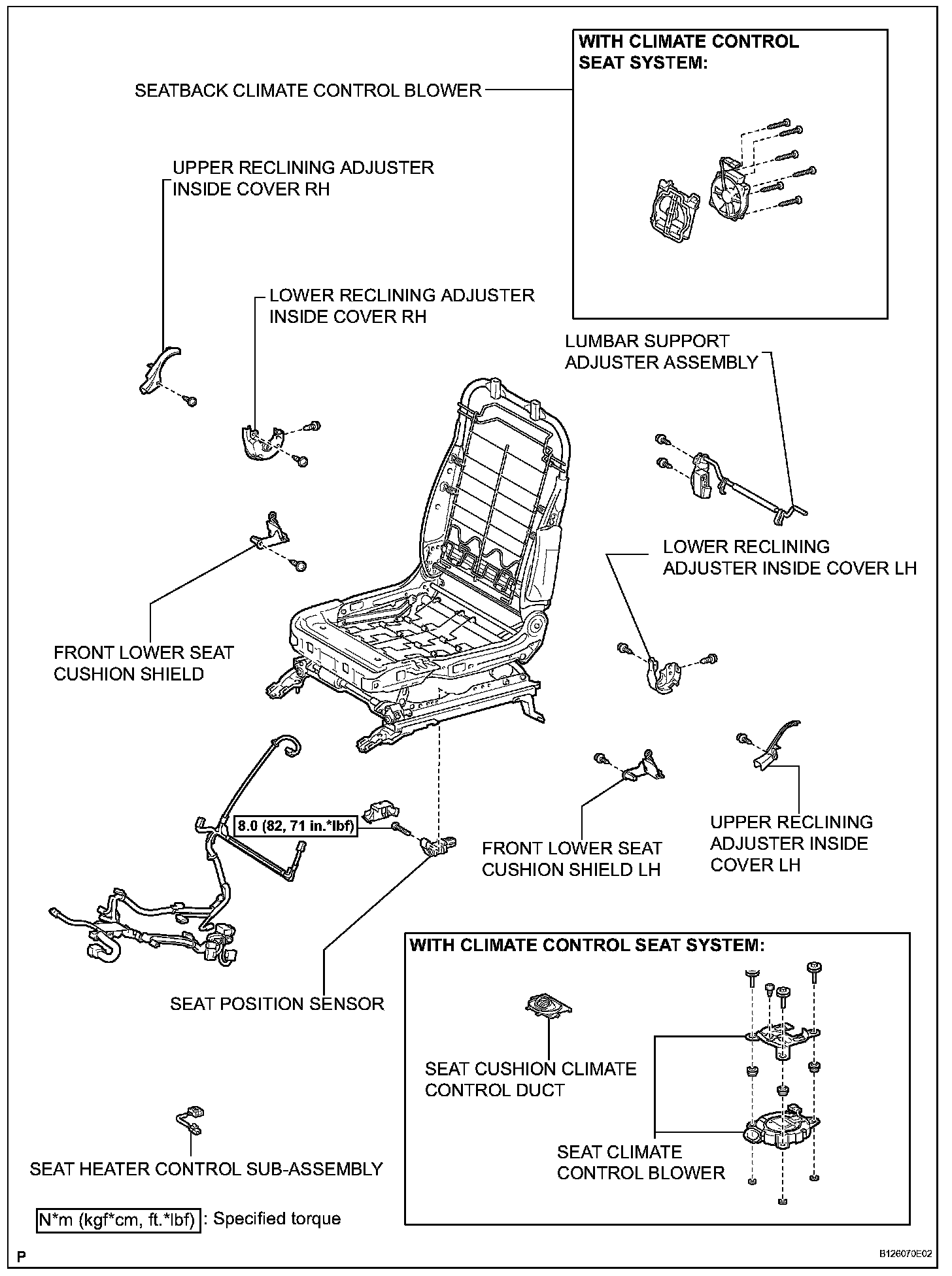

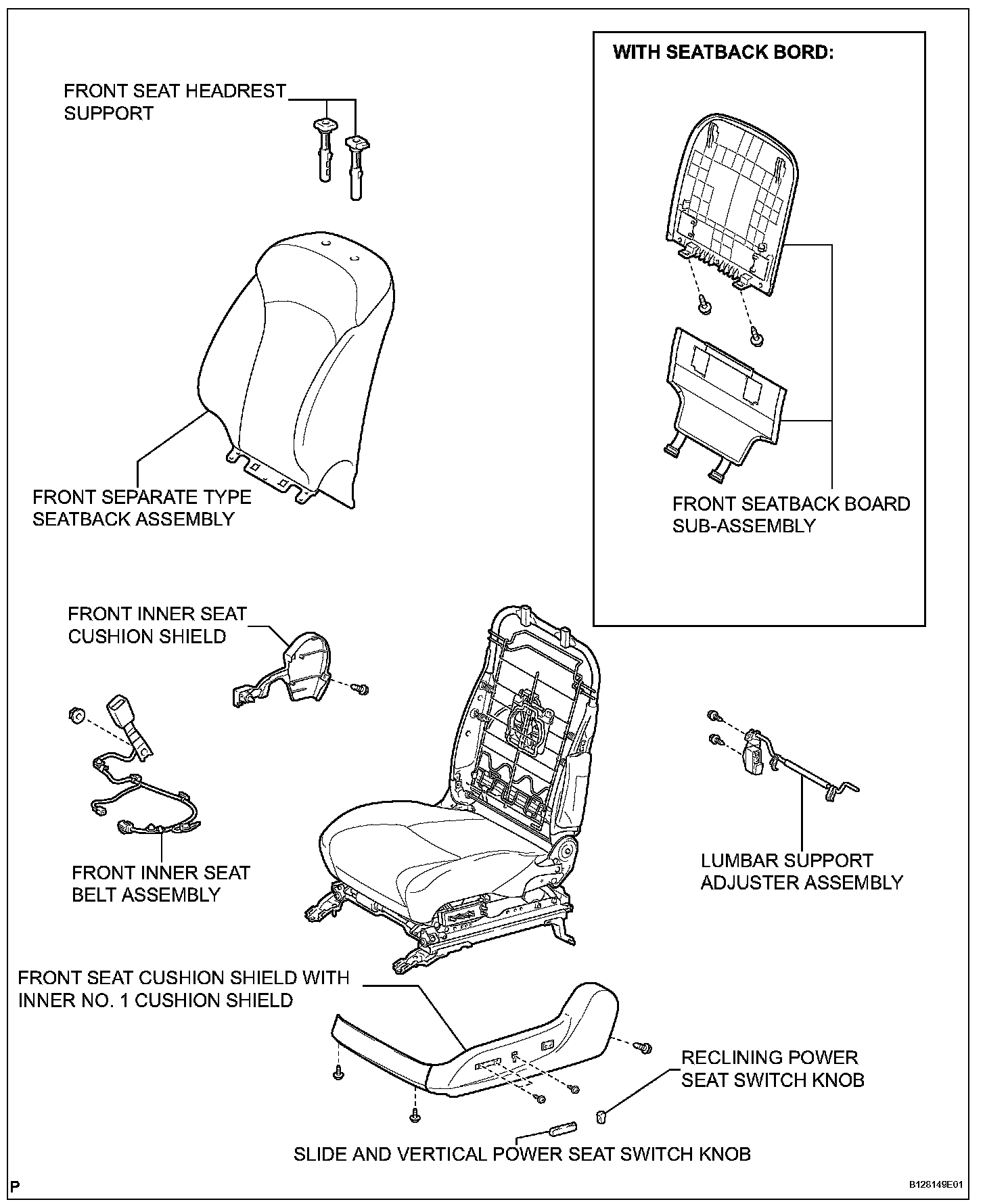

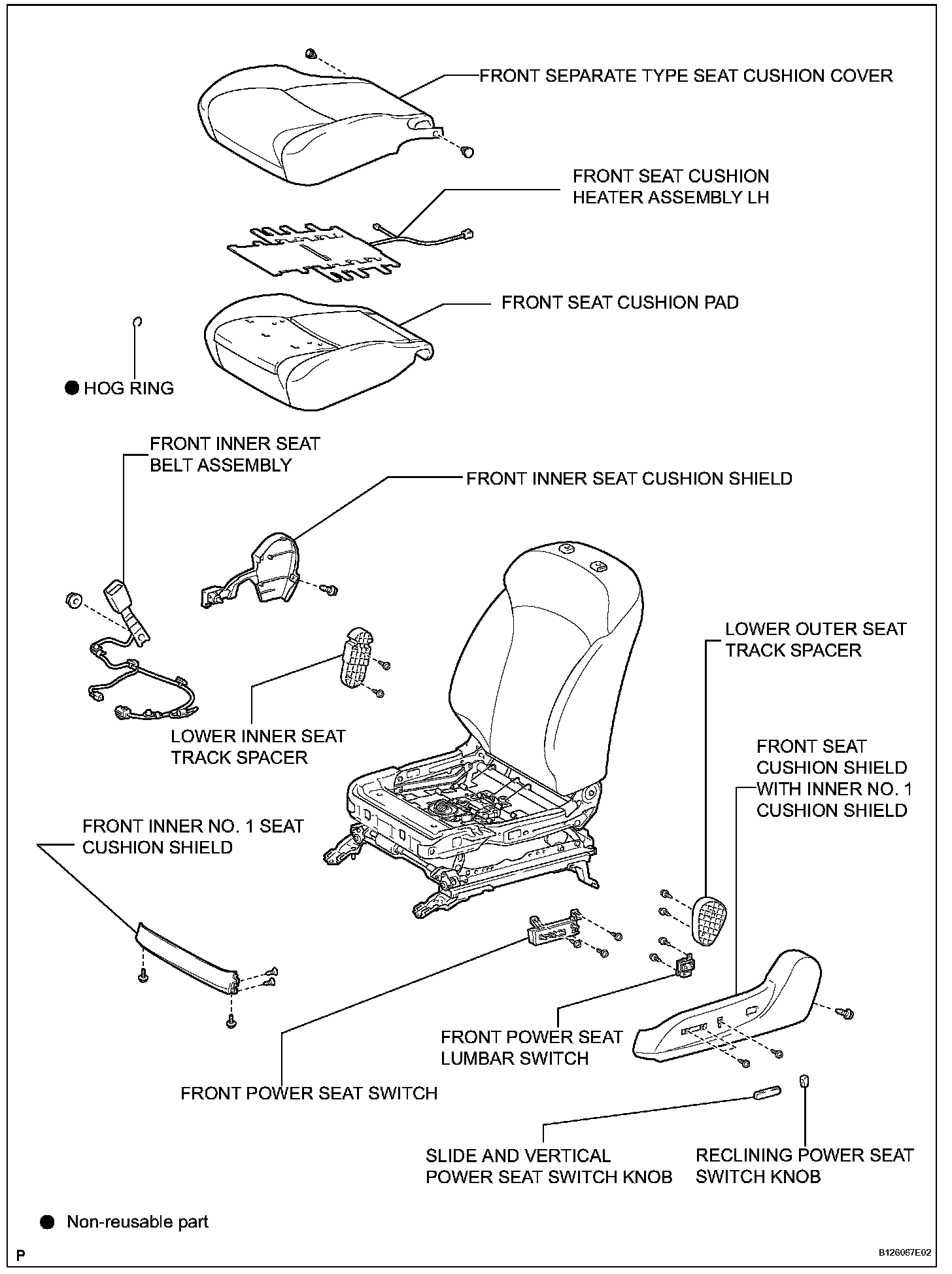

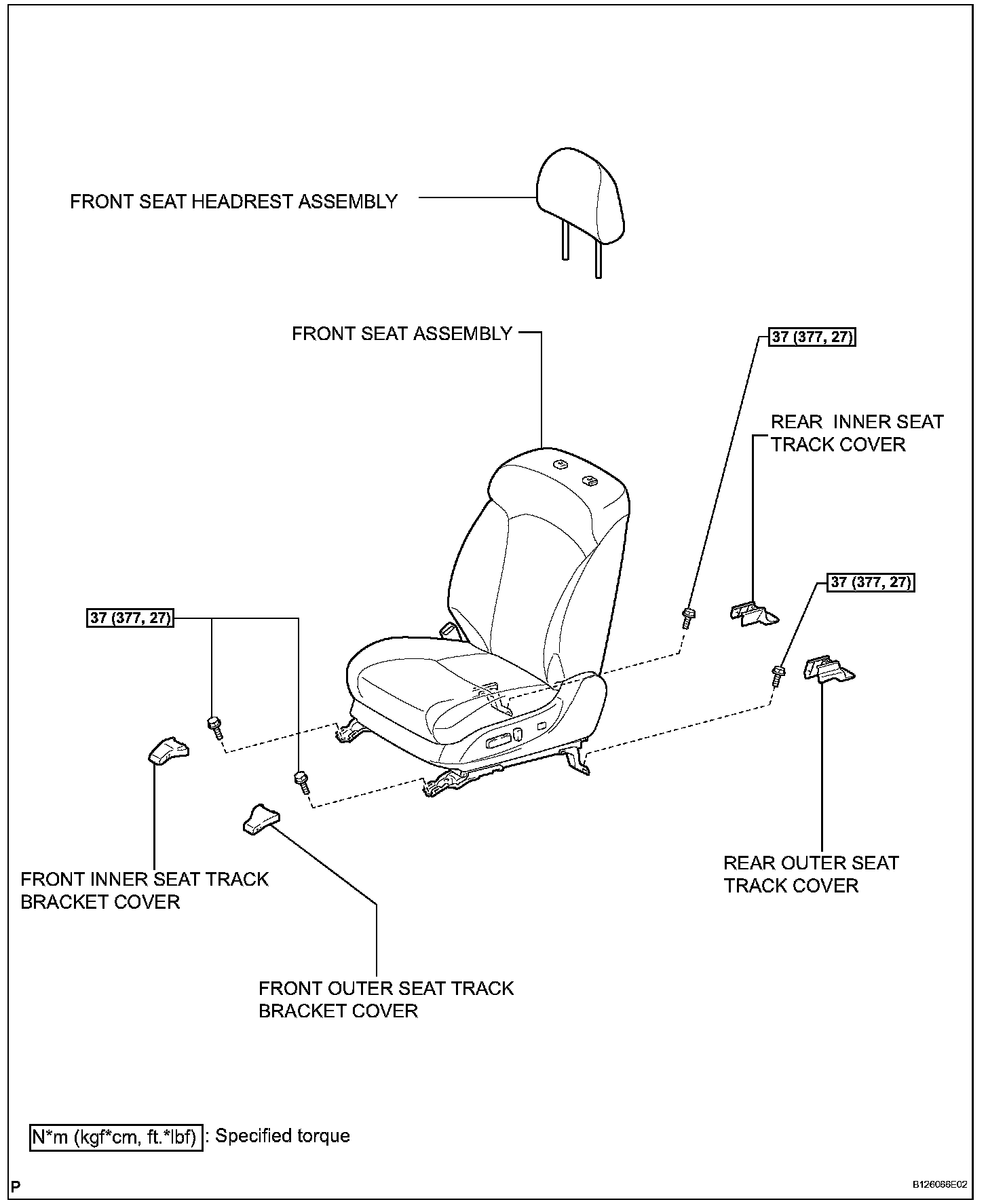

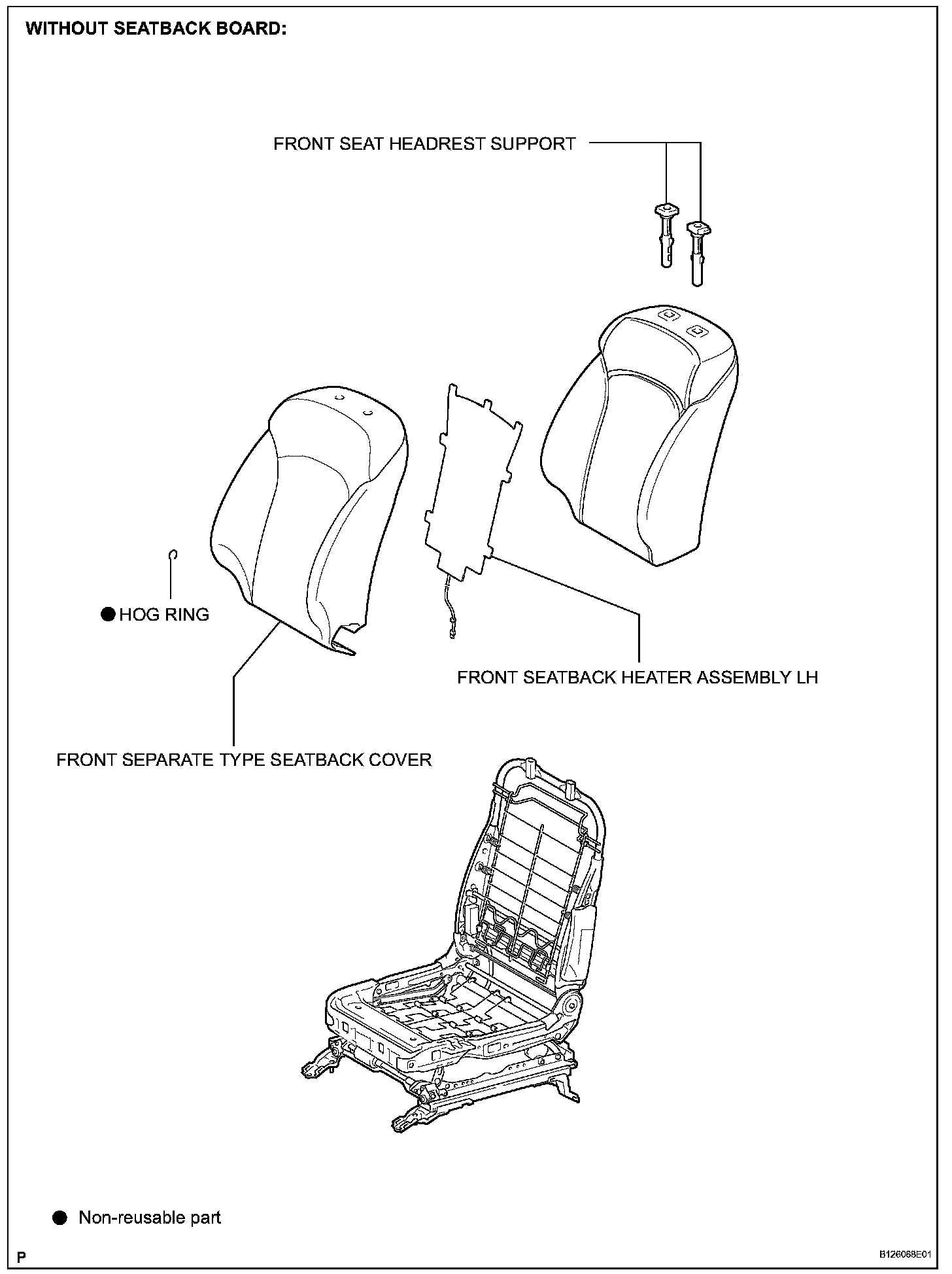

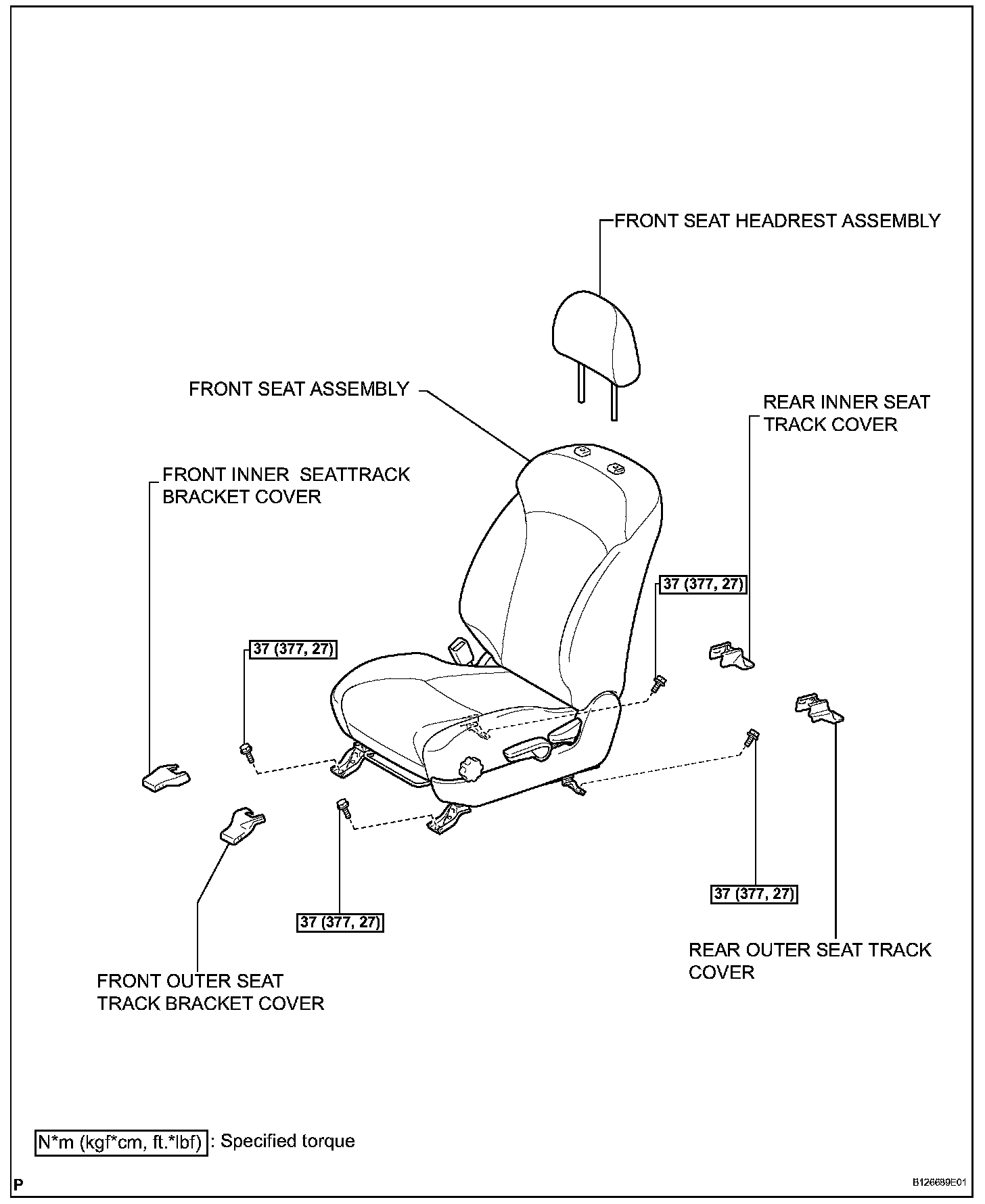

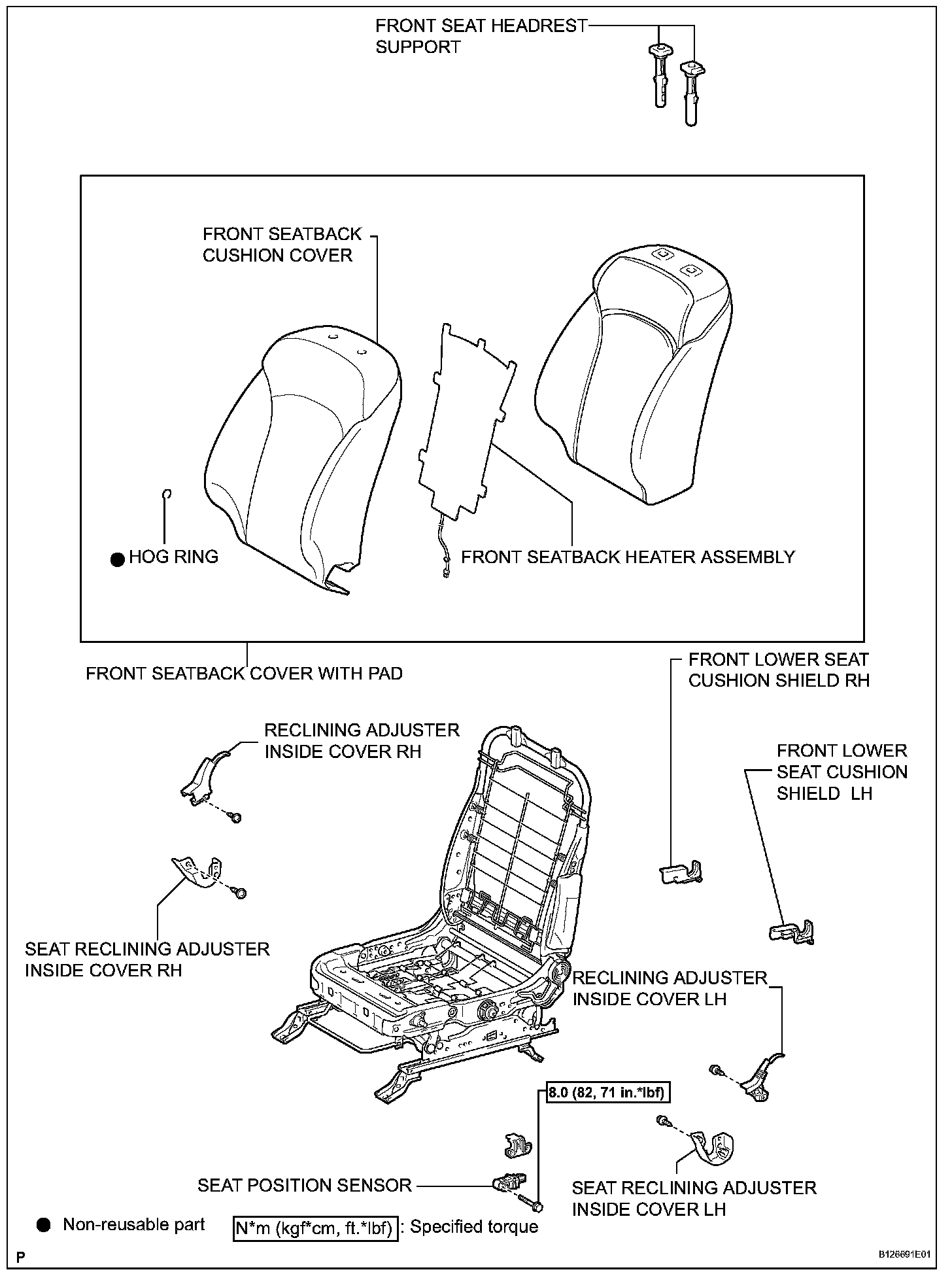

Front Seat Assembly (for Power Seat):

Front Seat Assembly (for Power Seat):

Front Seat Assembly (for Power Seat):

Front Seat Assembly (for Power Seat):

Front Seat Assembly (for Power Seat):

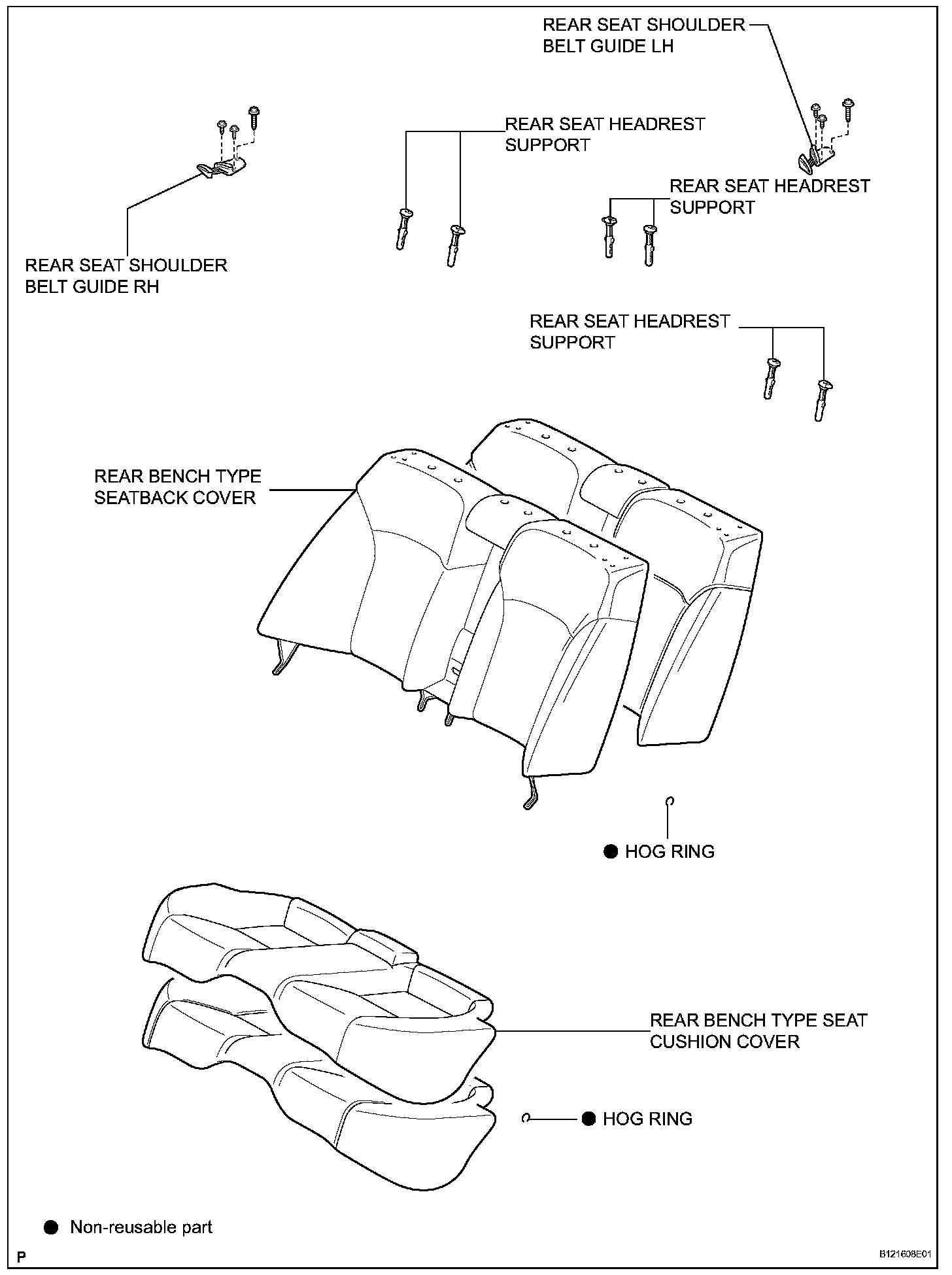

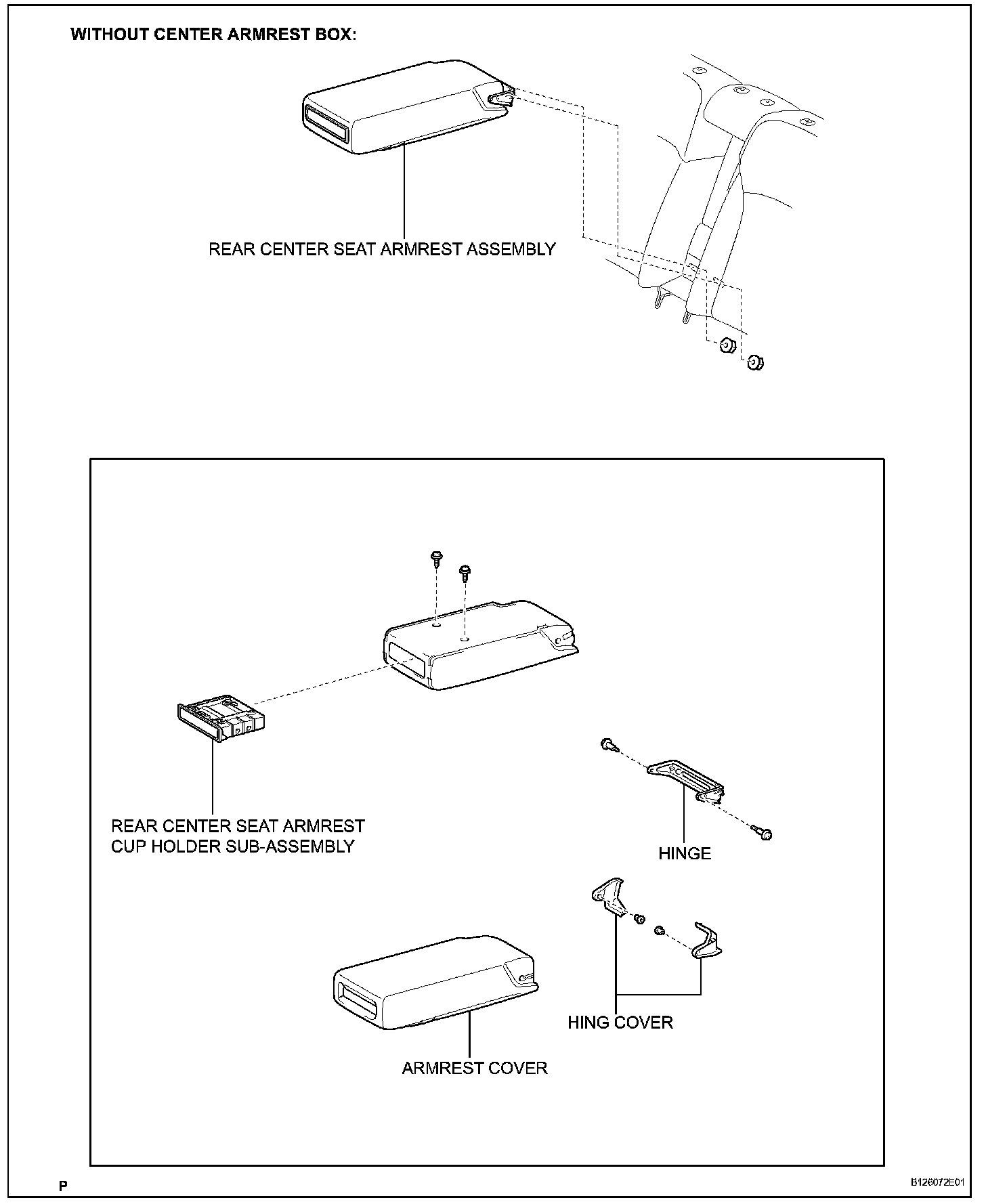

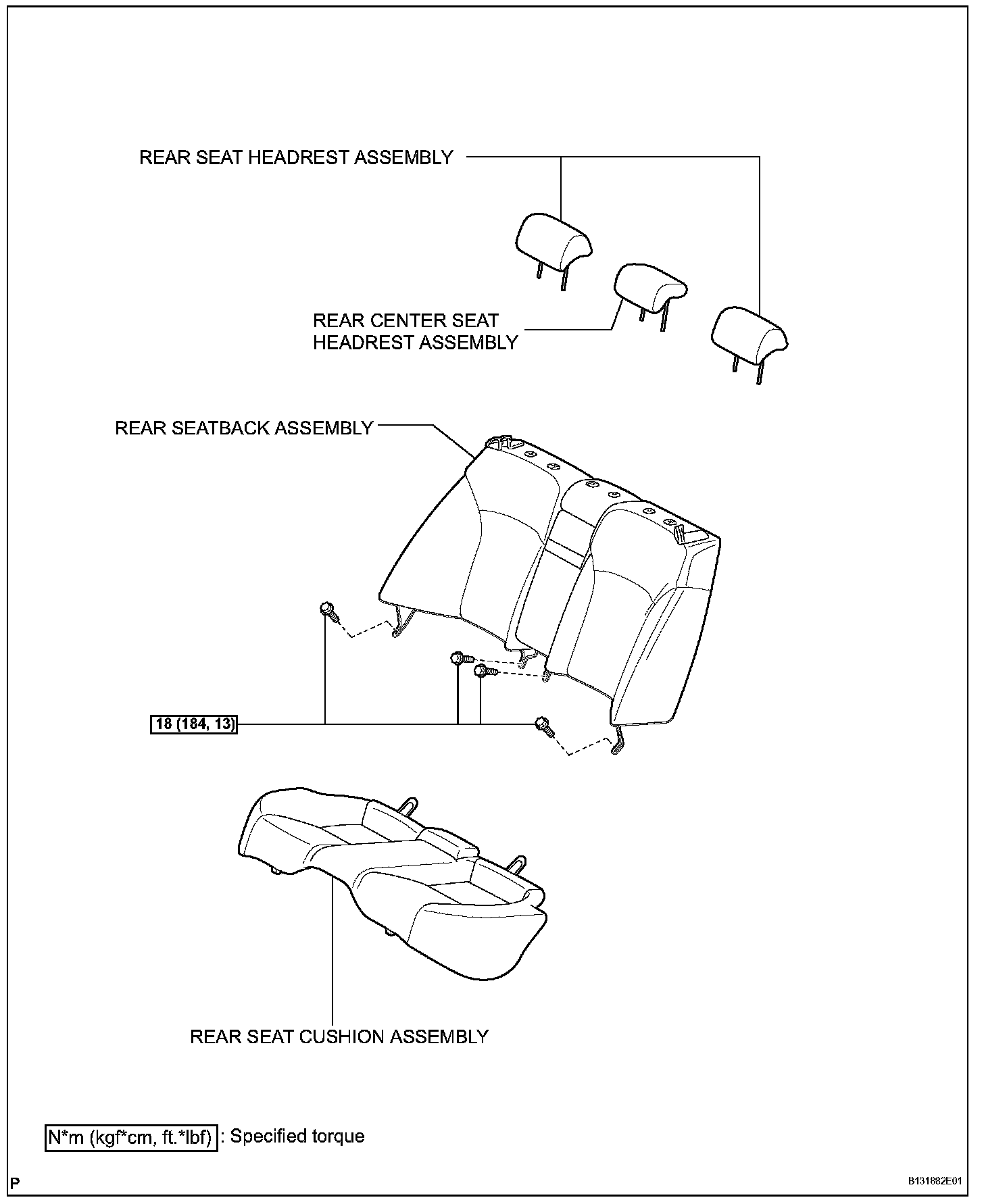

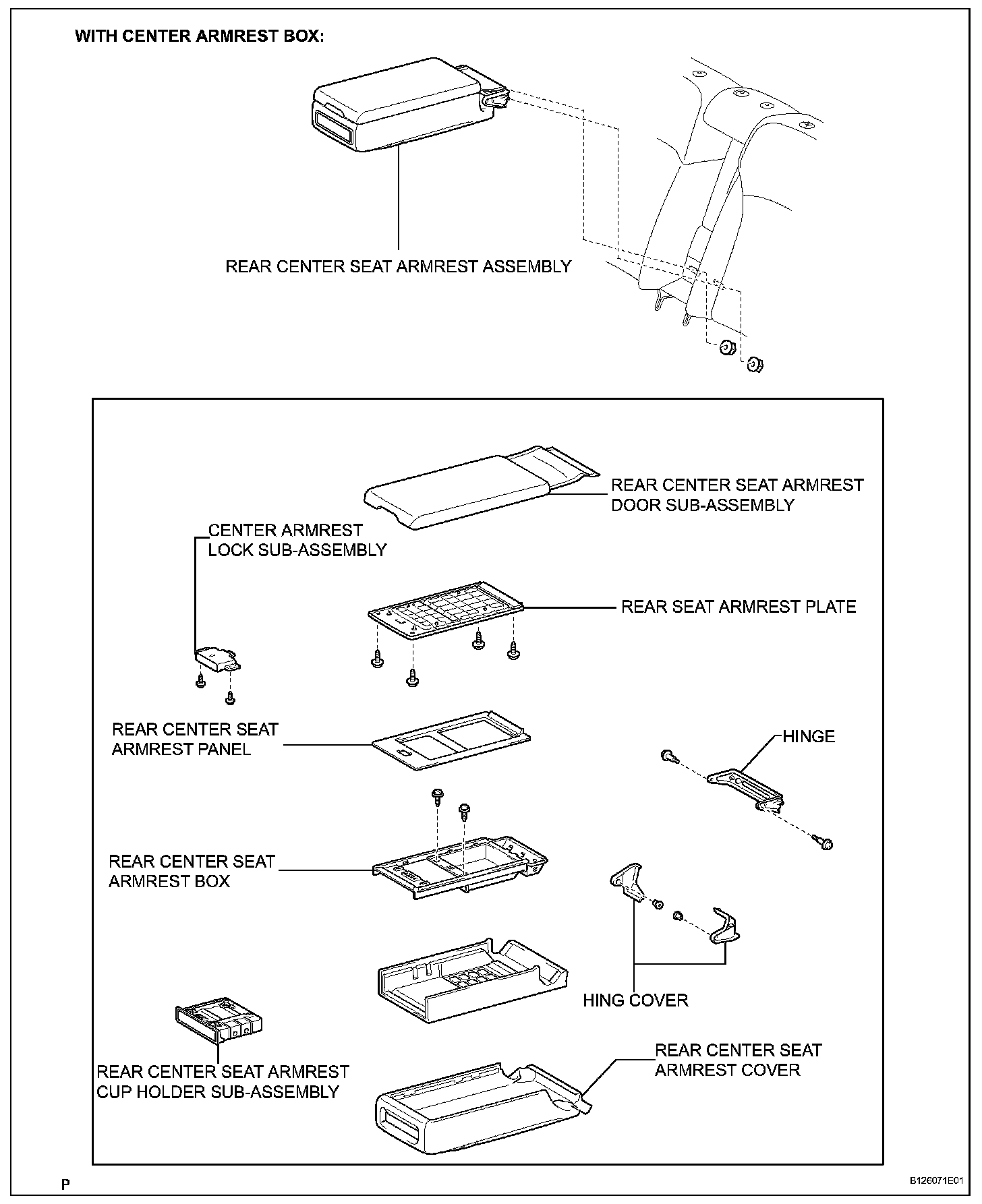

Rear Seat Assembly:

Rear Seat Assembly:

Rear Seat Assembly:

Rear Seat Assembly:

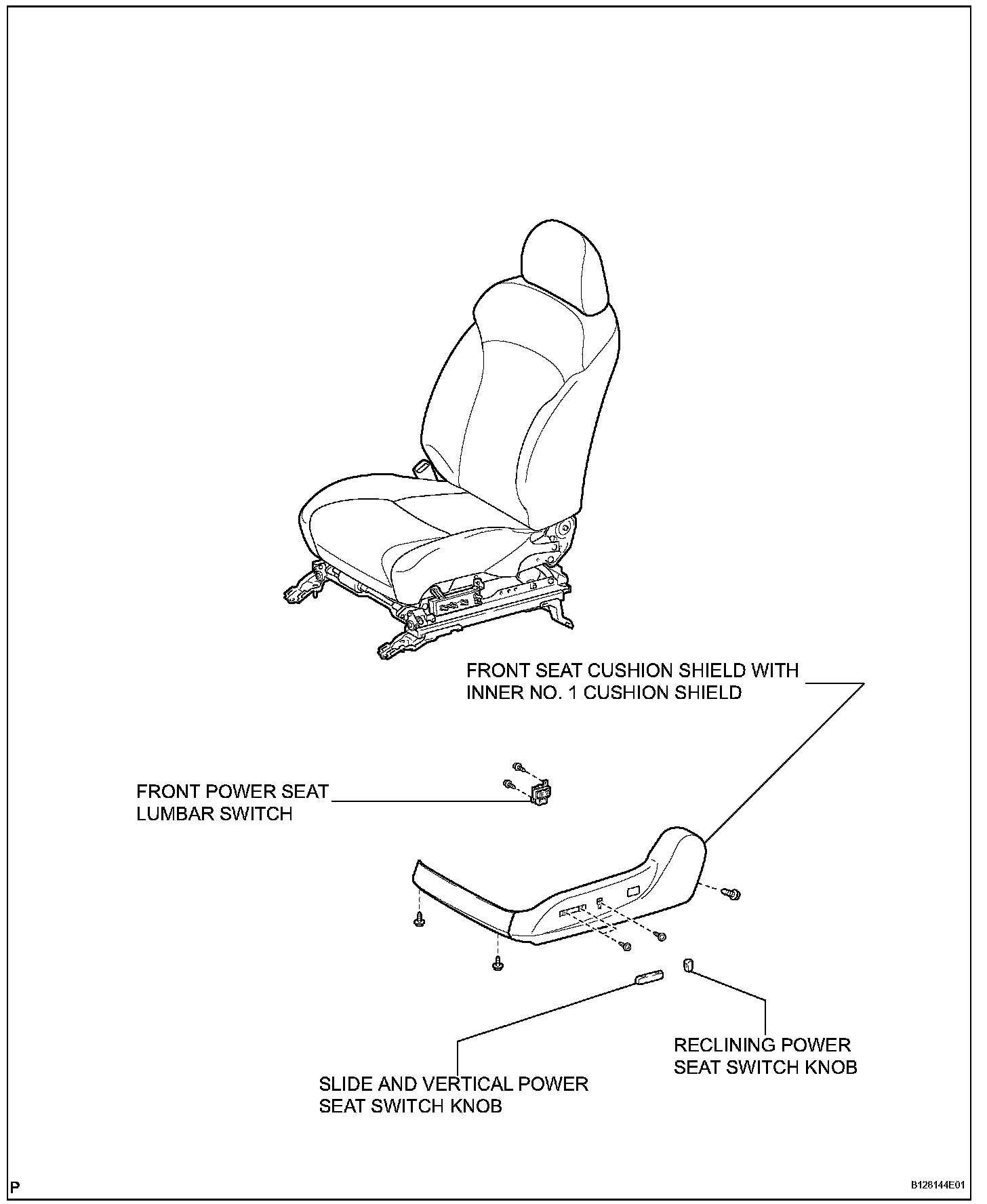

Front Power Seat Lumbar Switch:

Lumbar Support Adjuster Assembly:

Lumbar Support Adjuster Assembly:
