Trunk / Liftgate Switch

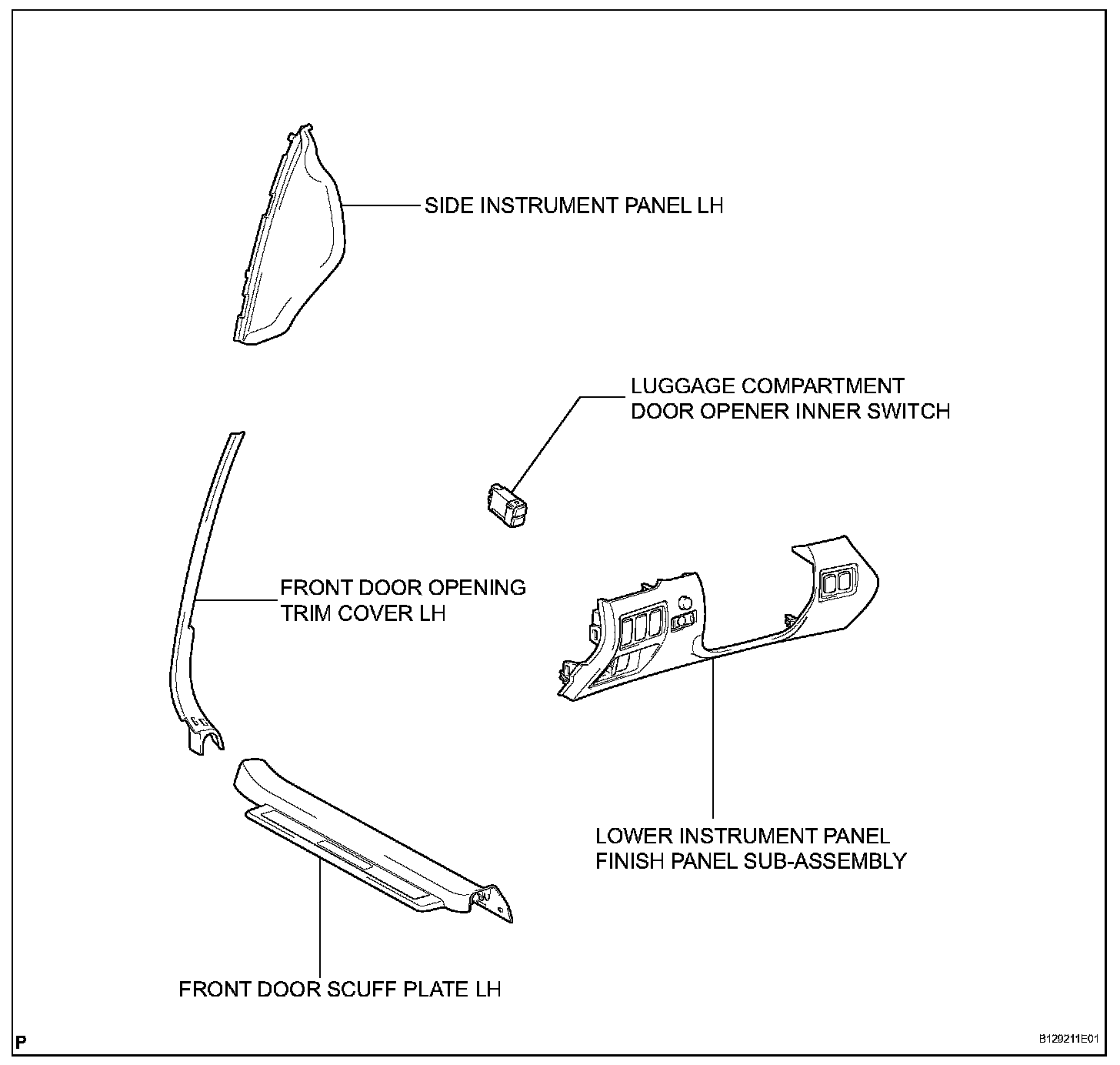

Luggage Compartment Door Opener Inner Switch:

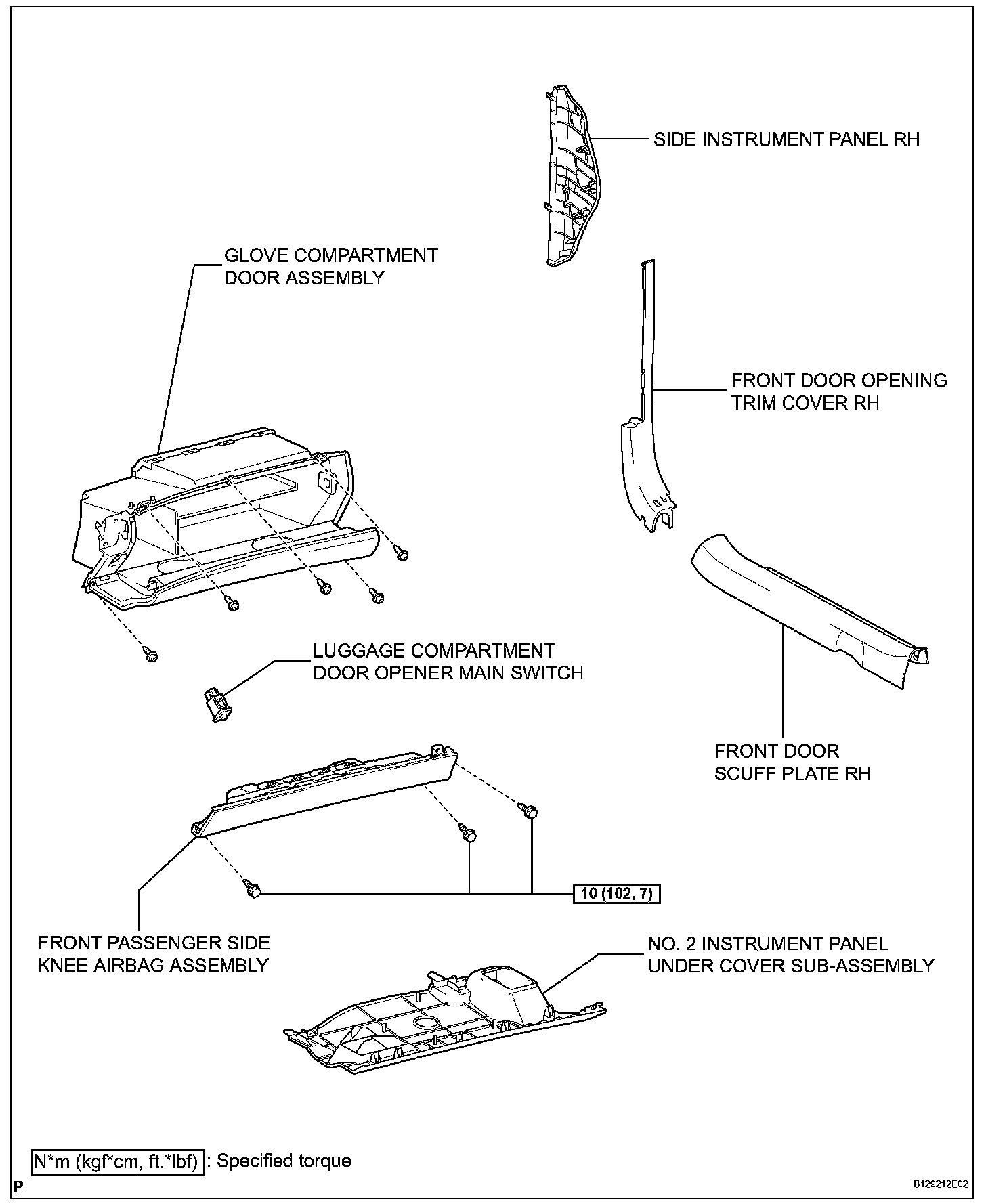

Luggage Compartment Door Opener Main Switch:

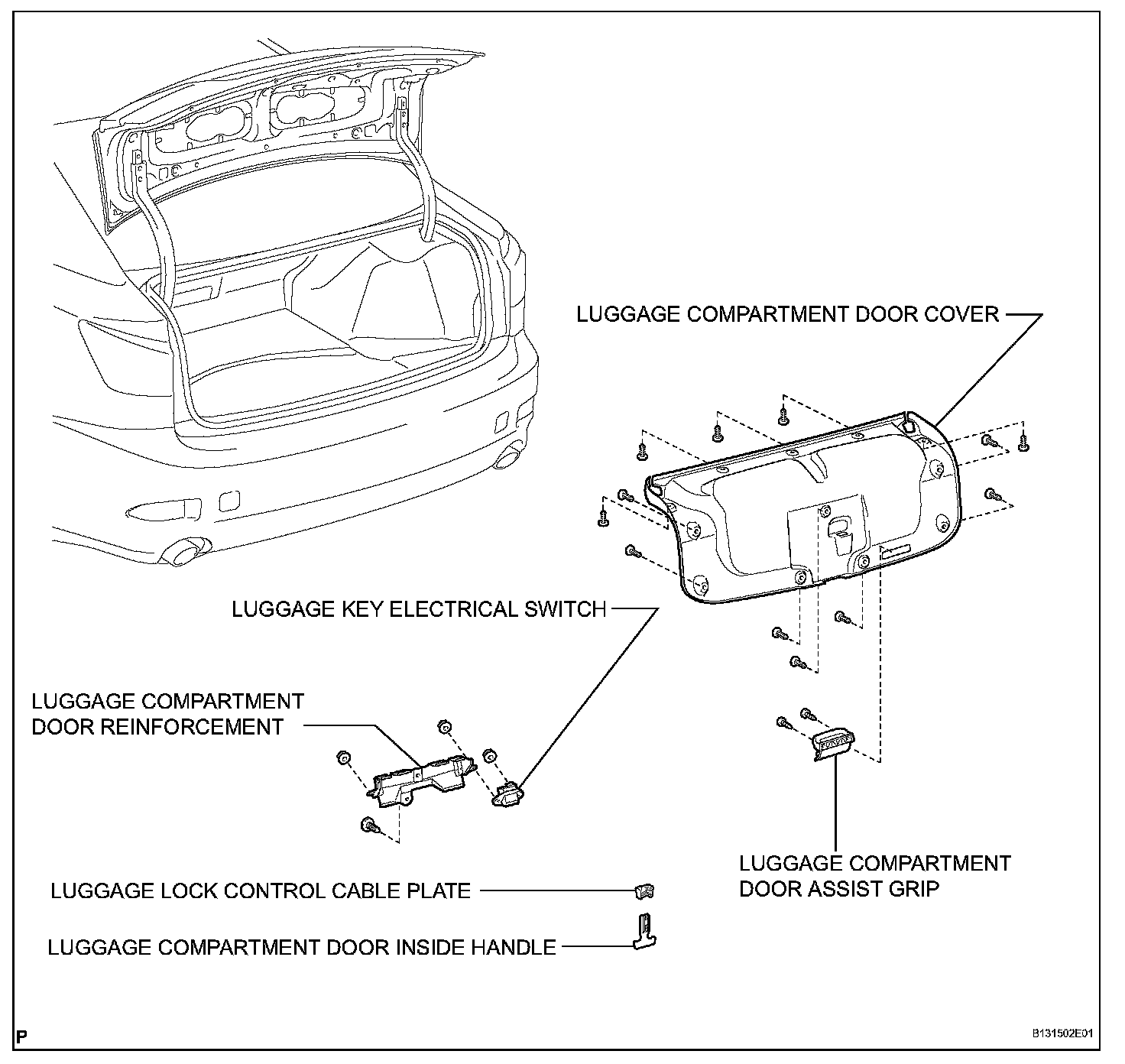

Luggage Compartment Door Opener Outer Switch:
