Yaw Rate And Acceleration Sensor: Components

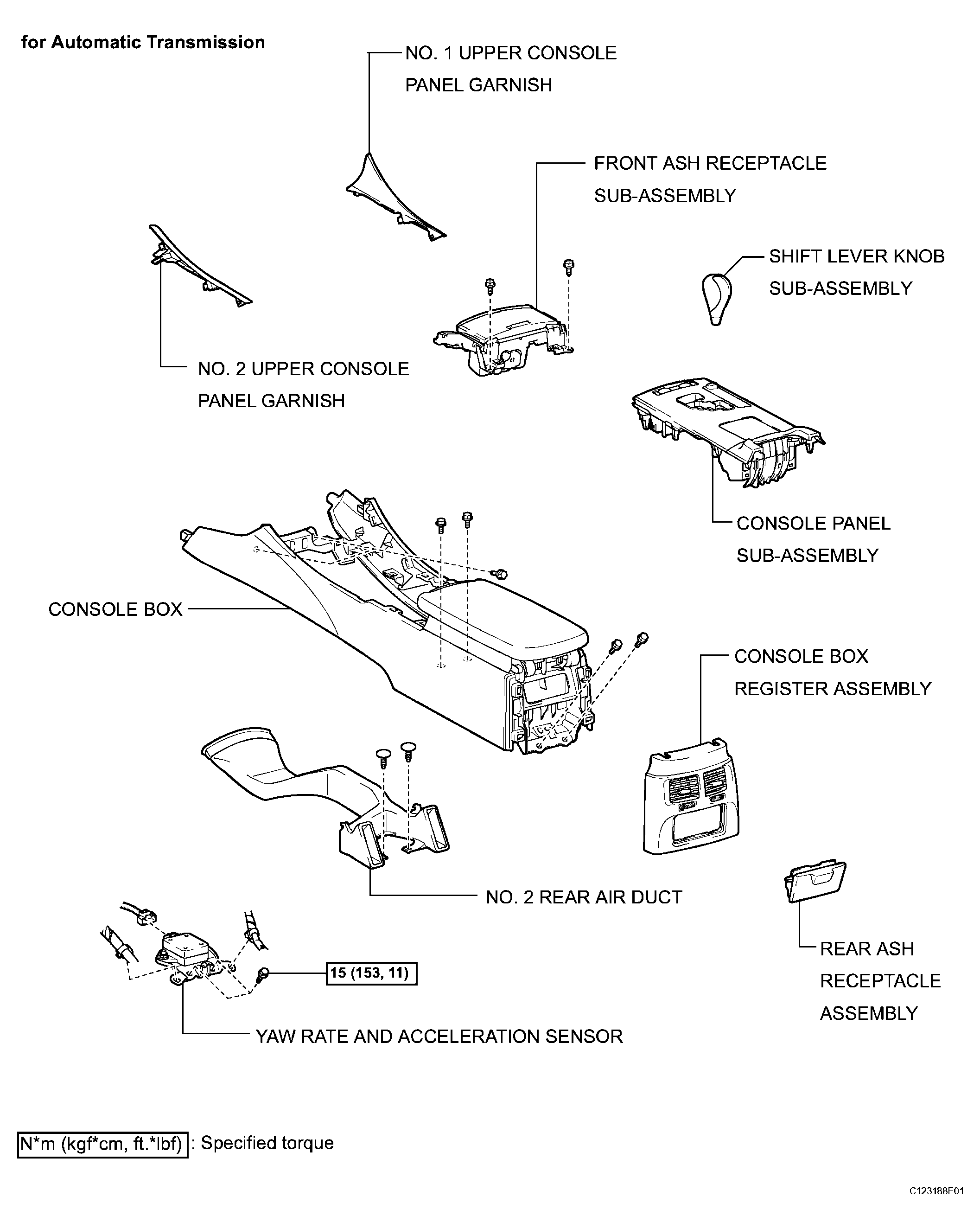

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (1 Of 2)
G04052203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

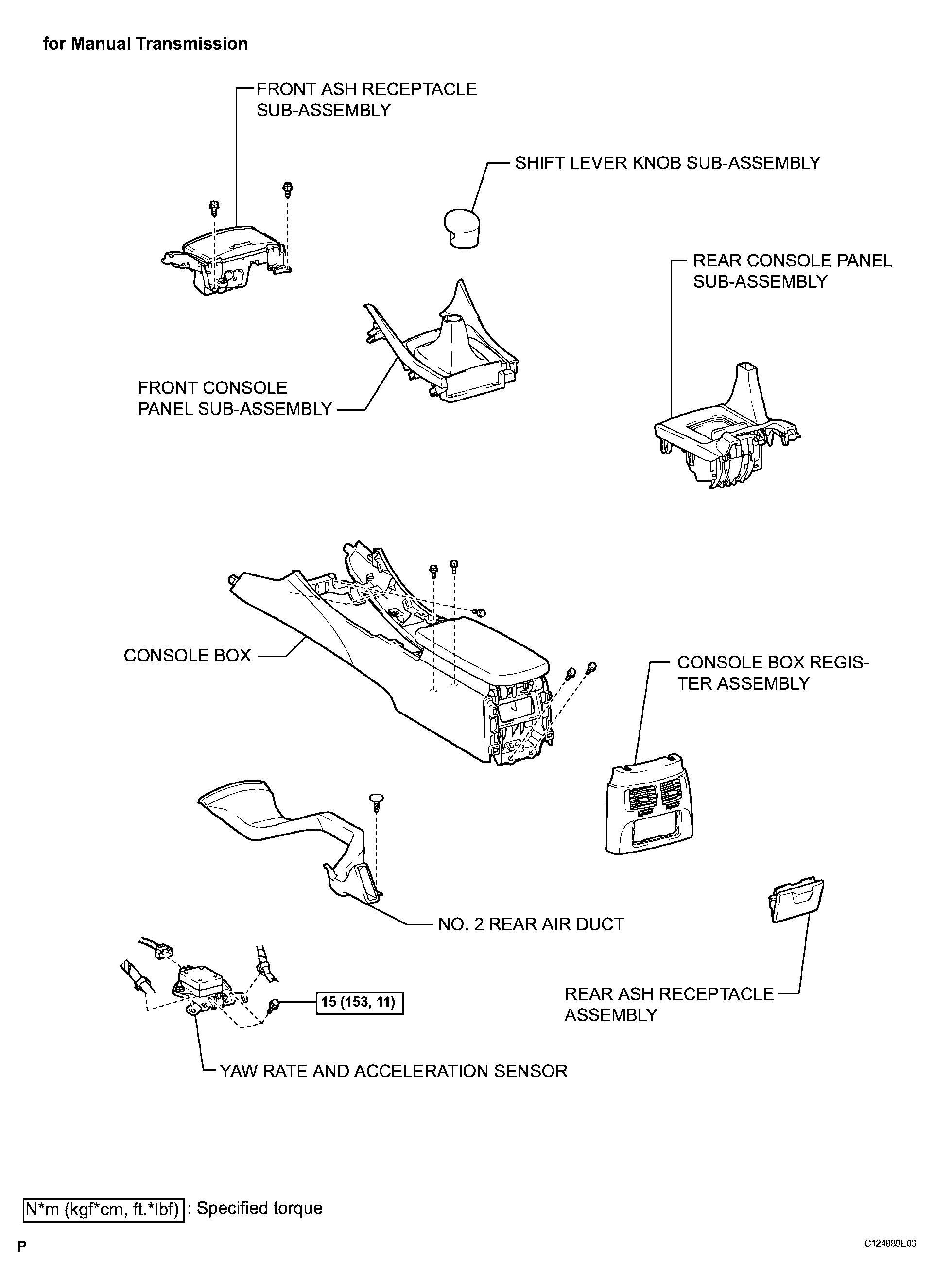

Fig 2: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (2 Of 2)
G04052204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
