On-Vehicle Inspection

  1. INSPECT FUEL PUMP RELAY (Marking: F/PMP)
    1. Remove the No. 2 relay block cover.
    2. Remove the fuel pump from the engine room No. 2 junction block.
    3. Measure the fuel pump relay resistance.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Condition Specified Condition
      1 - 2 63 to 91 Ω
      3 - 5 Below 1 Ω
      3 - 5 10 kΩ or higher (when battery voltage is applied to terminals 1 and 2)

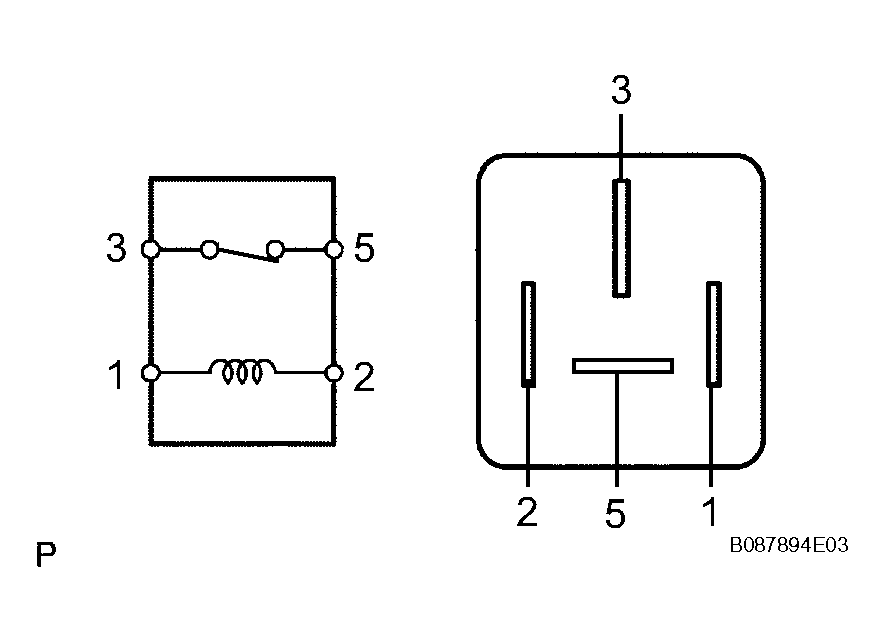

      Fig 1: Measuring Fuel Pump Relay Resistance
      G04054986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reinstall the fuel pump relay to the engine room No. 2 relay block.
    5. Reinstall the No. 2 junction block cover.
