Pattern Select Switch: Components

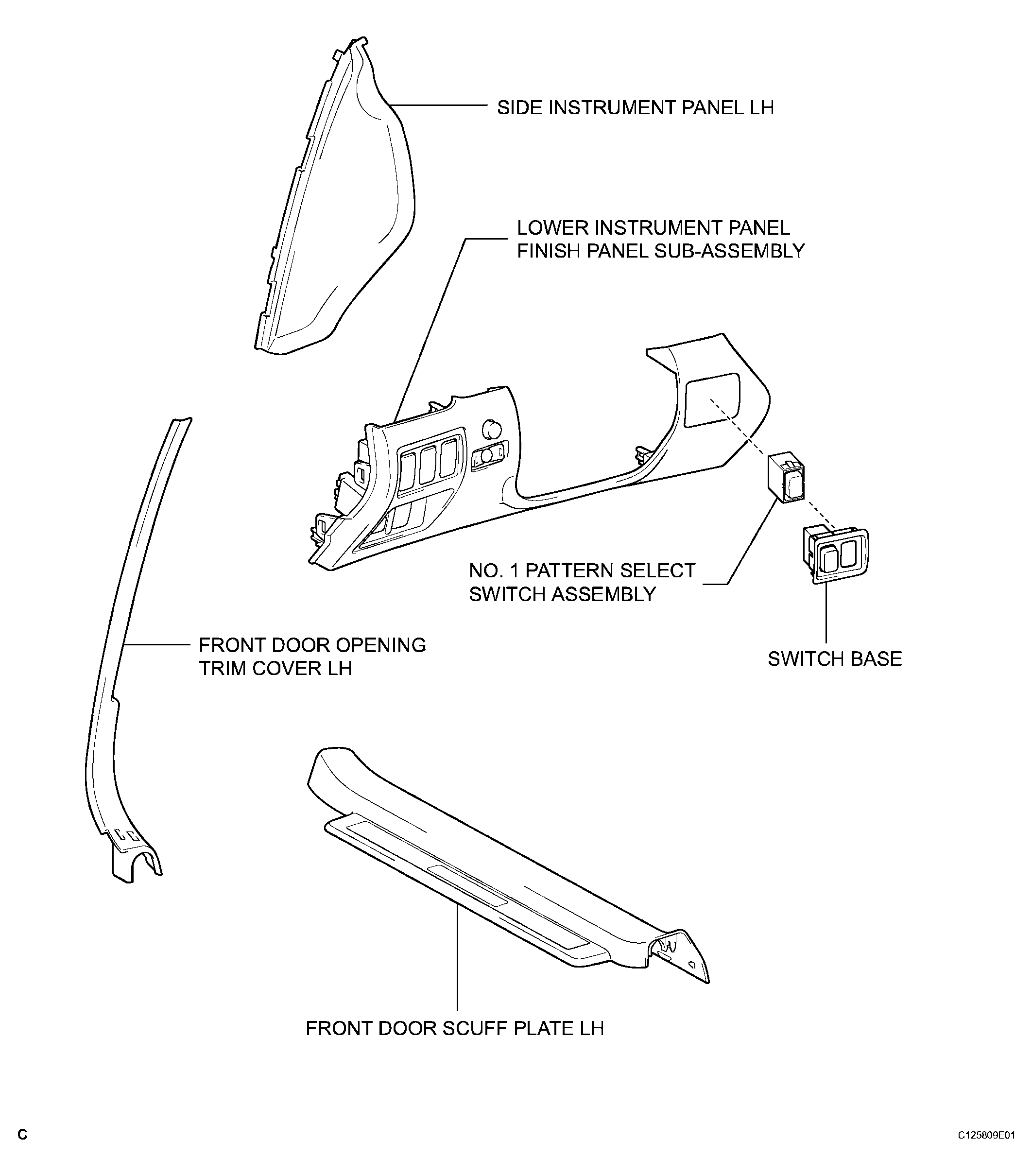

Fig 1: Identifying Pattern Select Switch Components
G04053063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
