Shift Paddle Switch: Components

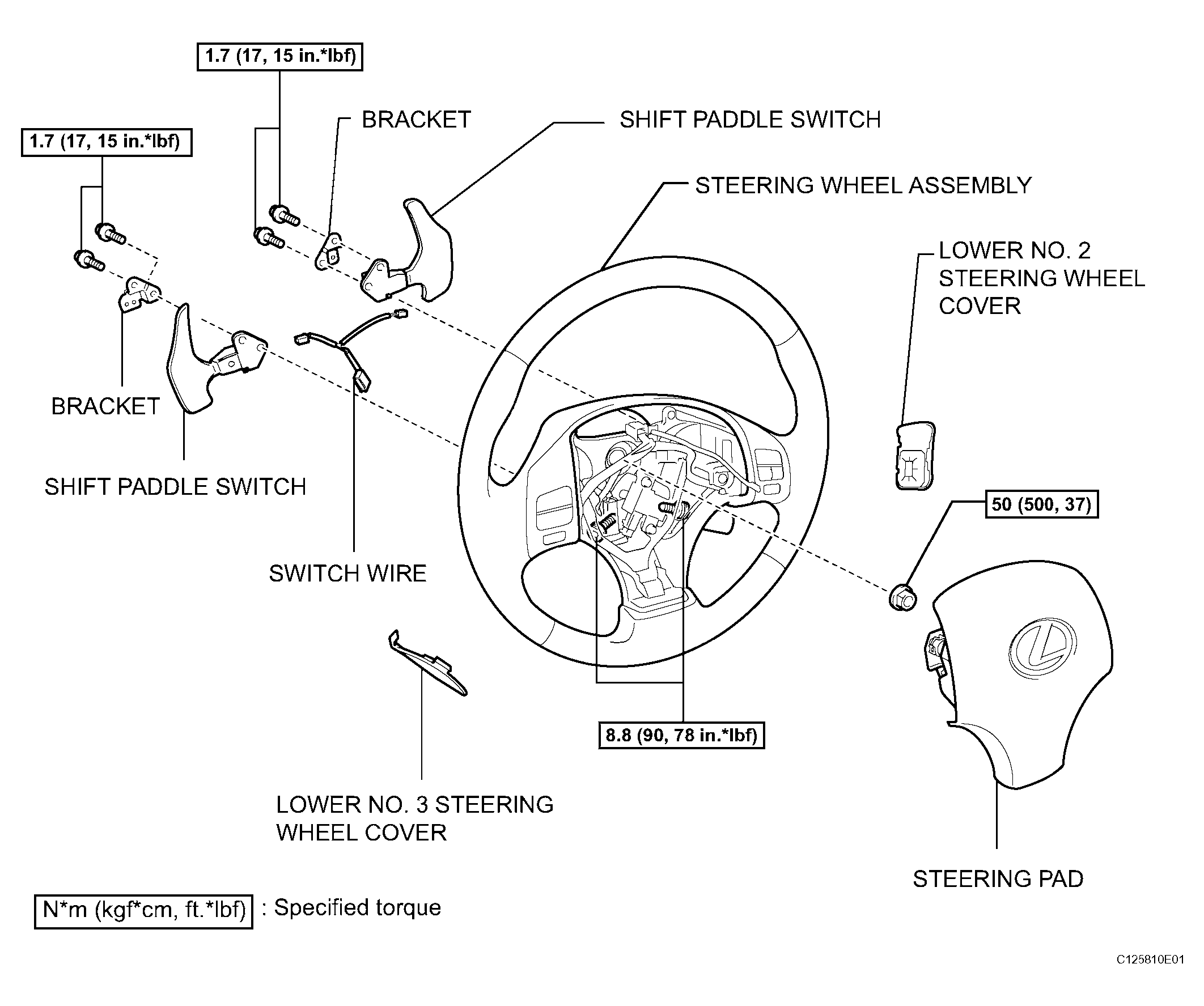

Fig 1: Shift Paddle Switch Replacement Components With Torque Specifications
G04053055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
