Valve Body Assembly: Components

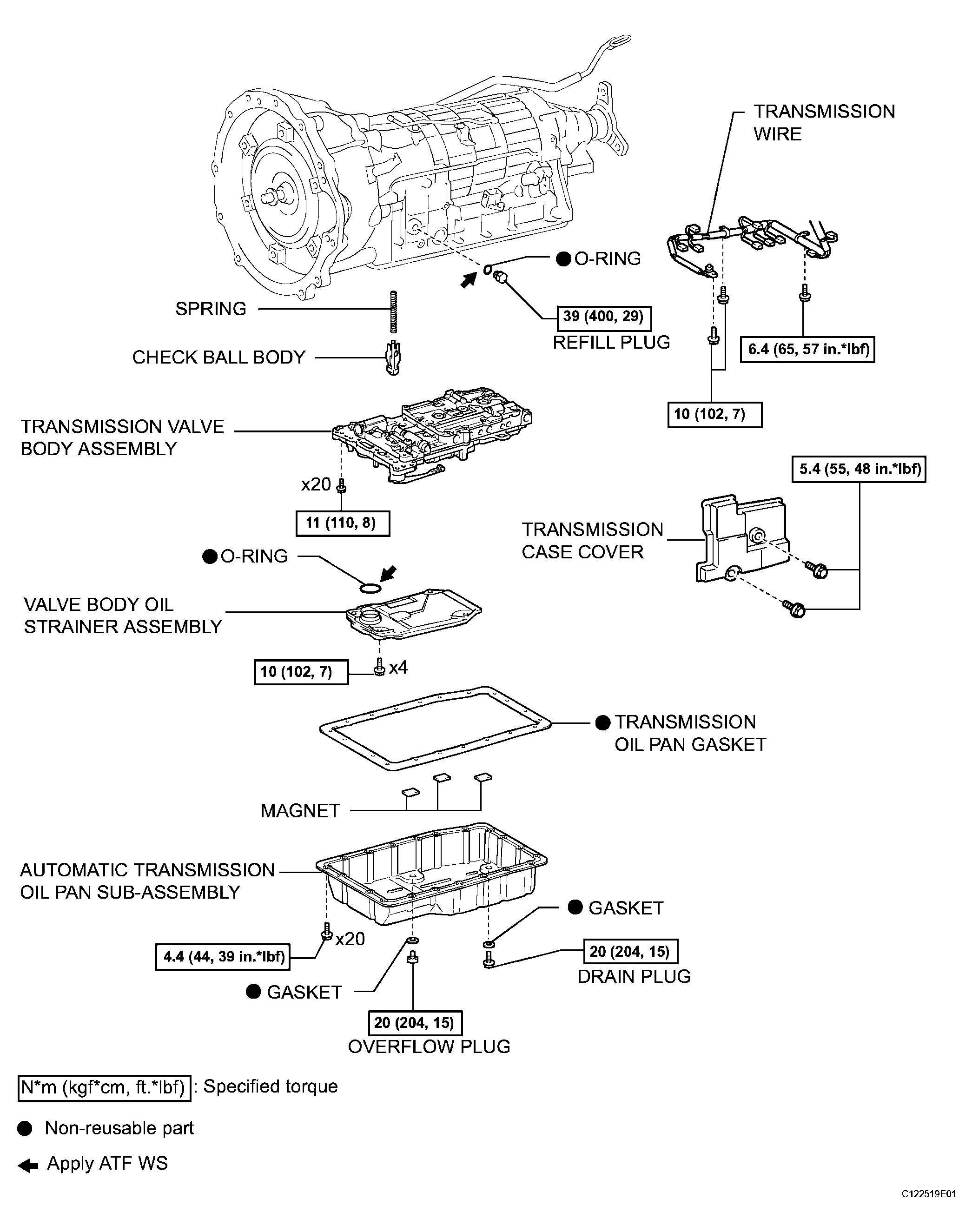

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (1 Of 2)
G04053025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

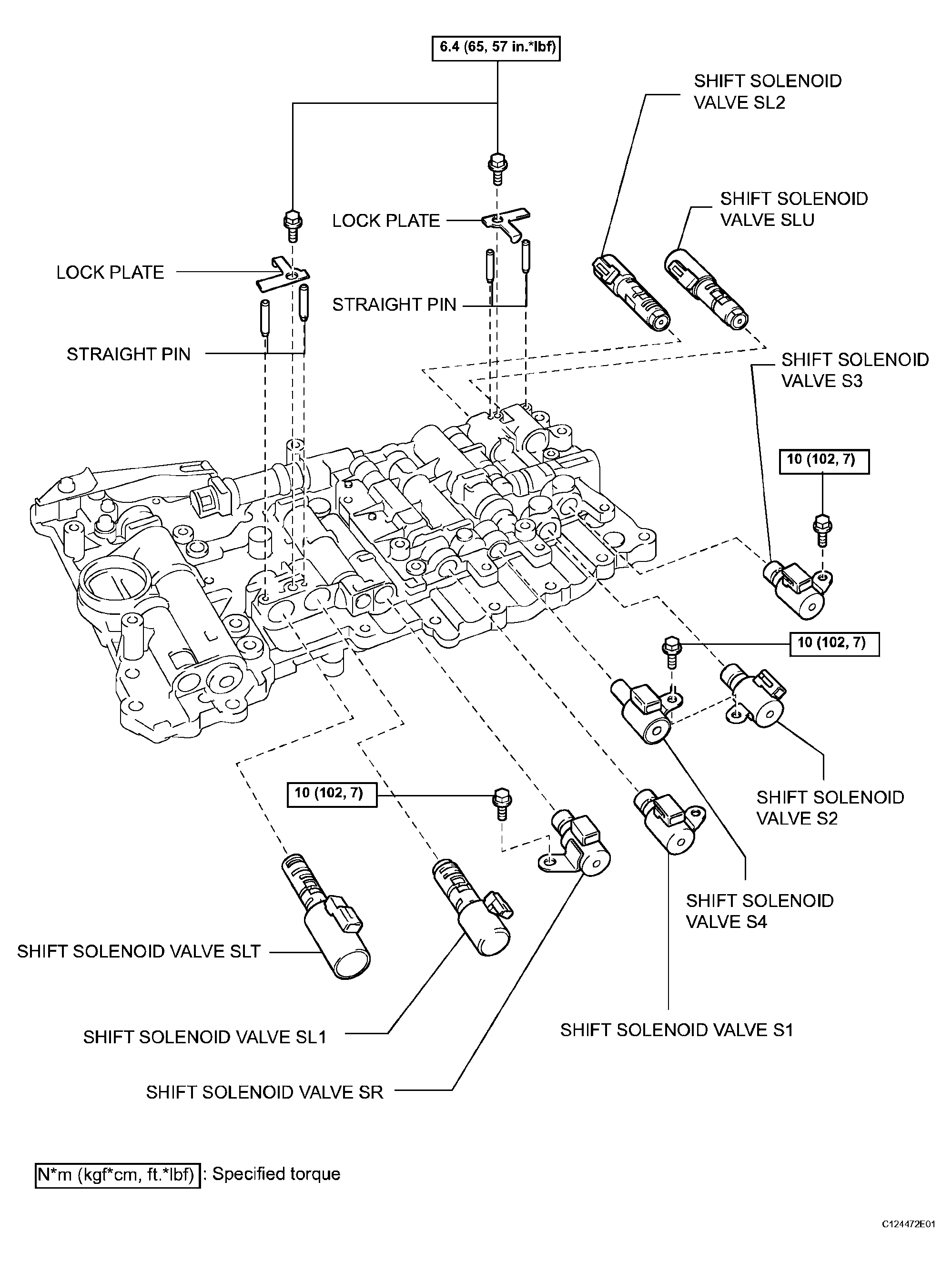

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 2)
G04053026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
