Valve Body Assembly: Installation

1. Install the check ball body and spring.
   NOTE: Do not drop the check ball body and spring.

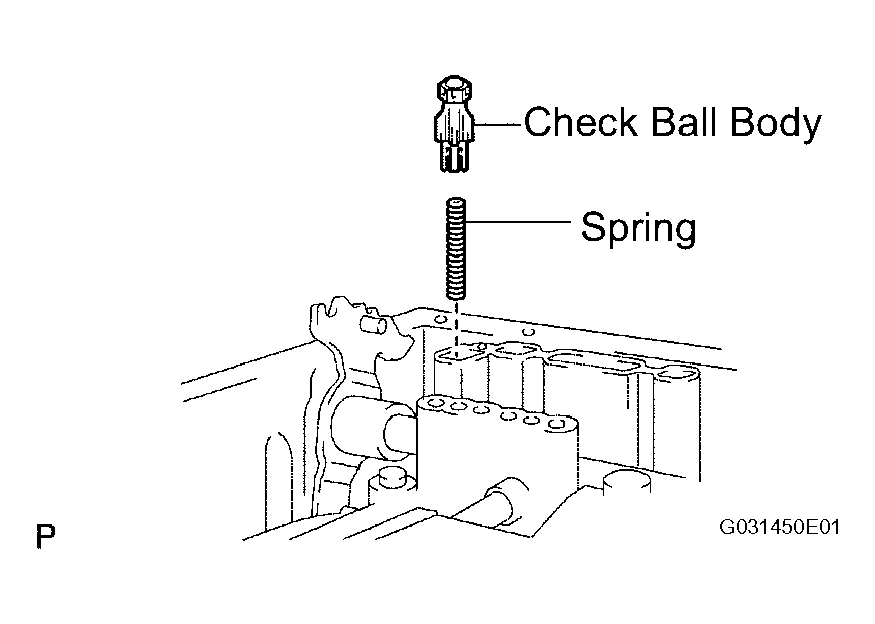

   Fig 1: Identifying Check Ball Body And Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the accumulator pistons, check ball body and spring as shown in the illustration.

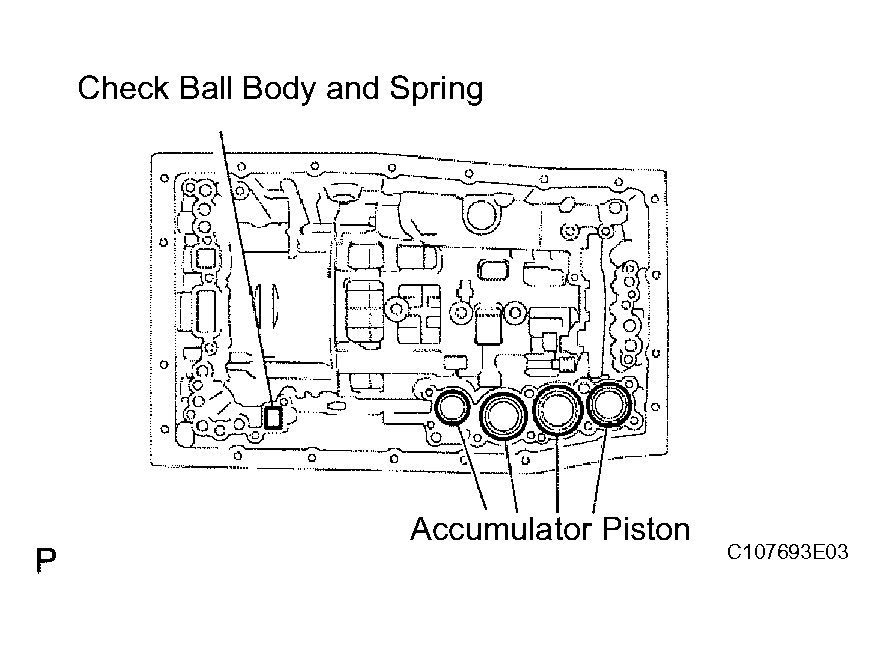

   Fig 2: Checking Accumulator Pistons

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Align the groove of the manual valve with the pin of the lever.

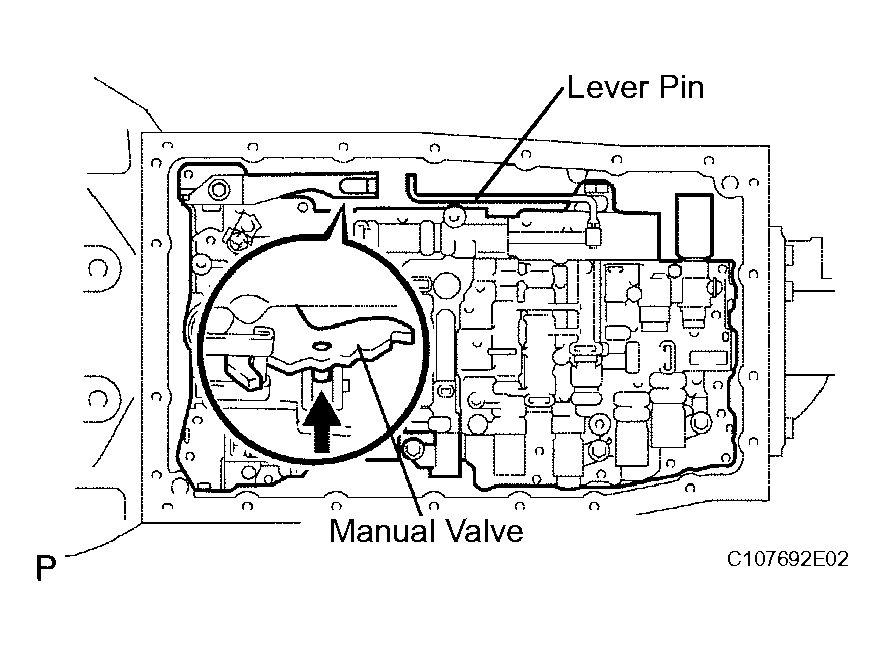

   Fig 3: Aligning Groove Of Manual Valve With Pin Of Lever

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 20 bolts.

   Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

   Bolt length:

   • Bolt A: 36 mm (1.42 in.)
   • Bolt B: 25 mm (0.98 in.)

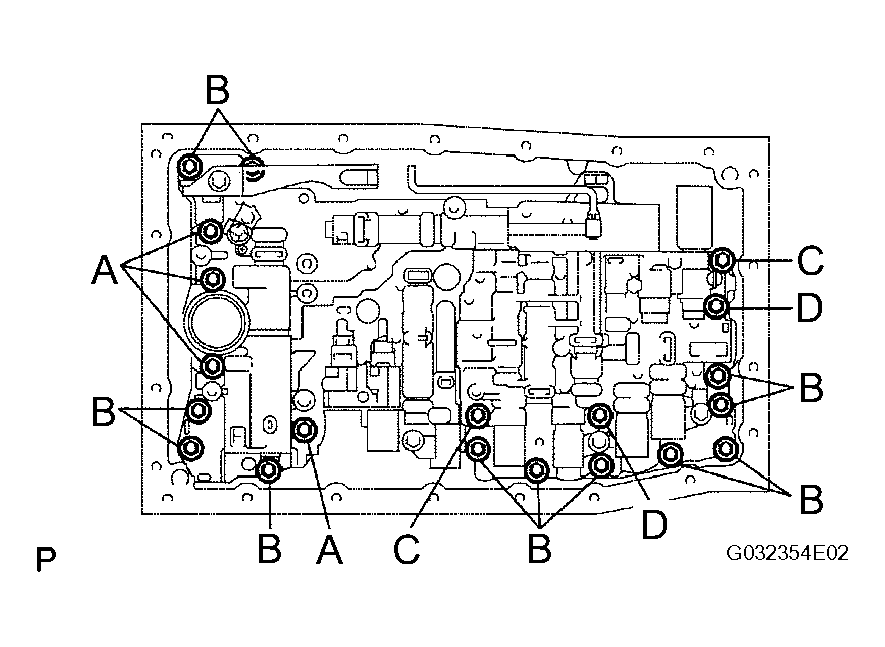

     Fig 4: Identifying Bolts

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • Bolt C: 45 mm (1.77 in.)
   • Bolt D: 50 mm (1.97 in.)

(See ADJUSTMENT  )

(See HYDRAULIC TEST  )
