Cruise Control Switch: Service and Repair

CRUISE CONTROL MAIN SWITCH ASSEMBLY

REPLACEMENT

1. SEPARATE BATTERY NEGATIVE TERMINAL
2. REMOVE SWITCH & VOLUME CASE
3. REMOVE STEERING WHEEL COVER LOWER NO.2
4. REMOVE HORN BUTTON ASSEMBLY
5. REMOVE STEERING WHEEL ASSEMBLY




6. REMOVE CRUISE CONTROL MAIN SWITCH ASSEMBLY

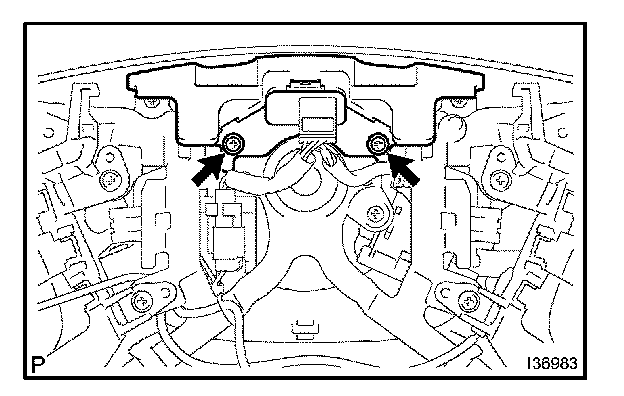

a. Remove the 2 screws and steering wheel damper.




b. Disconnect the connectors.

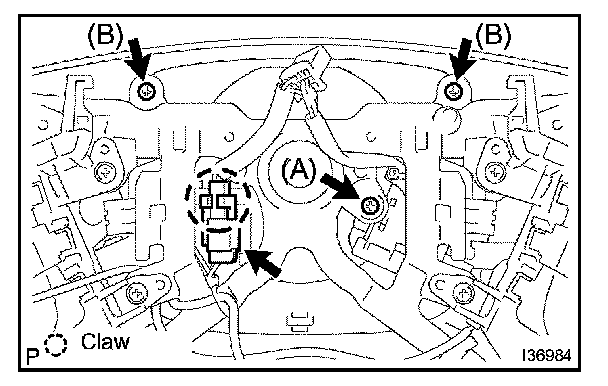

c. Remove screw (A) and disengage the claw.
d. Remove 2 screws (B) and the steering wheel LWR cover.

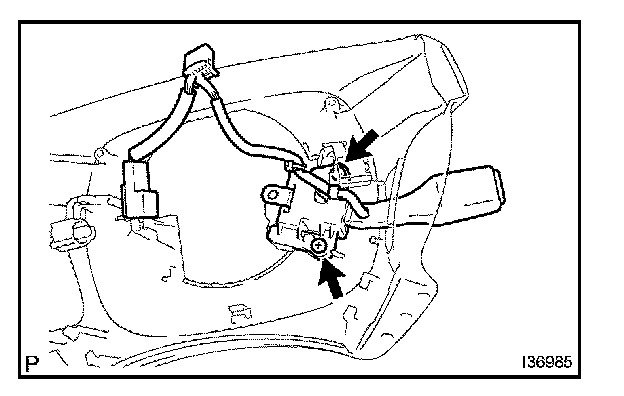

e. Remove the 2 screws and cruise control main switch assembly.

7. INSPECT STEERING WHEEL CENTER POINT
8. INSTALL STEERING WHEEL ASSEMBLY
9. INSTALL HORN BUTTON ASSEMBLY
10. CONNECT BATTERY NEGATIVE TERMINAL
11. INSPECT HORN BUTTON ASSEMBLY
12. INSPECT SRS WARNING LIGHT
