Inspection Procedure

READ VALUE OF HAND-HELD TESTER

Connect the hand-held tester to the DLC3.
Turn the ignition switch to the ON position.
According to the display on the tester, read the "DATA LIST".

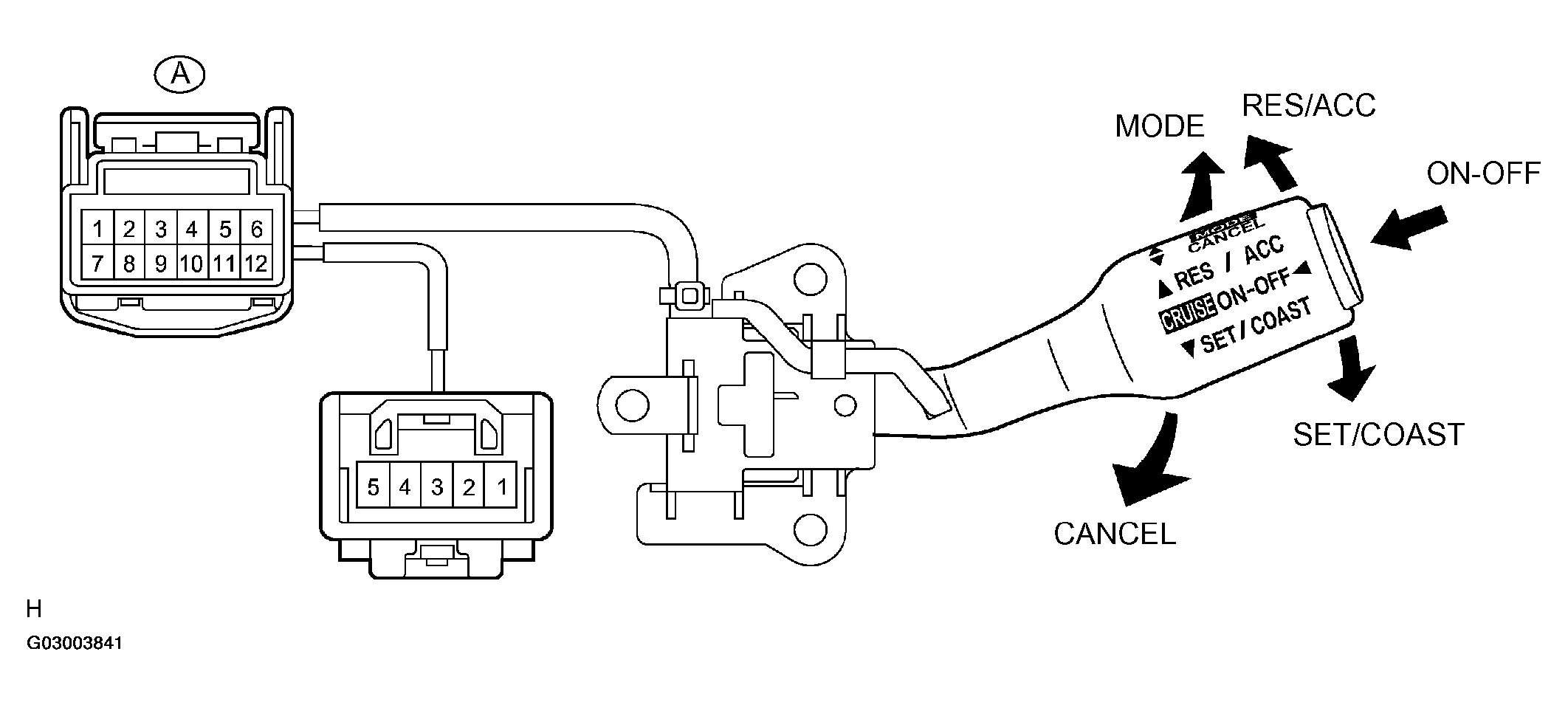

Fig 1: Identifying Cruise Control Main Switch Position

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

CC (ECM):

DATA LIST (CC (ECM))

Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
MAI NSW (MAIN)	Main SW signal (Main CPU) / ON or OFF	ON: Main SW ON (Pushed on) OFF: Main SW OFF (Pushed off)	-
MAI NSW (SUB)	Main SW signal (Sub CPU) / ON or OFF	ON: Main SW ON (Pushed on)	OFF: Main SW OFF (Pushed off)
CANCEL SW	CANCEL SW signal / ON or OFF	ON: CANCEL SW ON OFF: CANCEL SW OFF	-
SET/COAST SW	SET/COAST SW signal / ON or OFF	ON: SET/COAST SW ON OFF: SET/COAST SW OFF	-
RES/ACC SW	RES/ACC SW signal / ON or OFF	ON: RES/ACC SW ON OFF: RES/ACC OFF	-

OK: When cruise control main switch operation is performed, the standard values will be above.

Result:

RESULT DETAIL

OK	A
NG (All items are defective)	B
NG (One to four items are defective)	C

B: Go to step 2

C: REPLACE CRUISE CONTROL MAIN SWITCH ASSY (SEE REPLACEMENT )

A: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

INSPECT CRUISE CONTROL MAIN SWITCH ASSY

Disconnect the cruise control main switch connector.

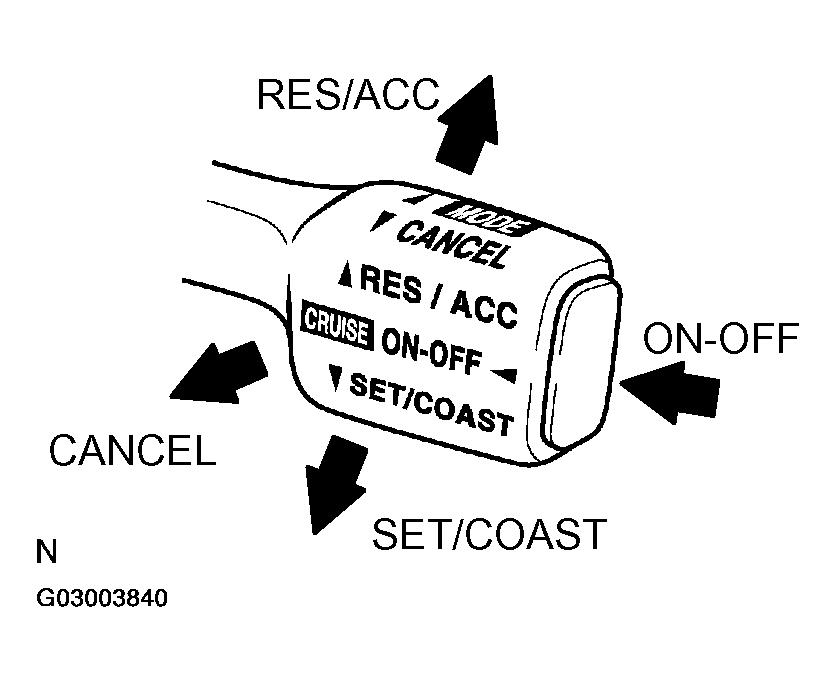

Fig 2: Checking Cruise Control Main Switch Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Measure the resistance according to the value(s) in the table below.

Standard:

CRUISE CONTROL MAIN SWITCH CONNECTOR TERMINALS RESISTANCE

Switch condition	Tester connection	Resistance (Ω)
Neutral	A-2 - A-3, A-3 - A-4	10 kΩ or higher
RES/ACC	A-2 - A-3	210 to 270
SET/COAST	A-2 - A-3	560 to 700
CANCEL	A-2 - A-3	1,380 to 1,700
Main Switch OFF	A-2 - A-3	10 kΩ or higher
Main Switch ON	A-2 - A-3	Below 1 Ω
MODE	A-3 - A-4	Below 1 Ω

NG: REPLACE CRUISE CONTROL MAIN SWITCH ASSY (SEE REPLACEMENT )

OK: Go To Next Step.

INSPECT SPIRAL CABLE SUB-ASSY

Disconnect the spiral cable sub-assy connector.
Measure the resistance according to the value(s) in the table below.

Standard:

SPIRAL CABLE SUB-ASSY CONNECTOR TERMINALS RESISTANCE

Terminal No.	Specified value
A-2 - C13-2	Below 1 Ω
A-3 - C13-3	Below 1 Ω
A-4 - C13-4	Below 1 Ω

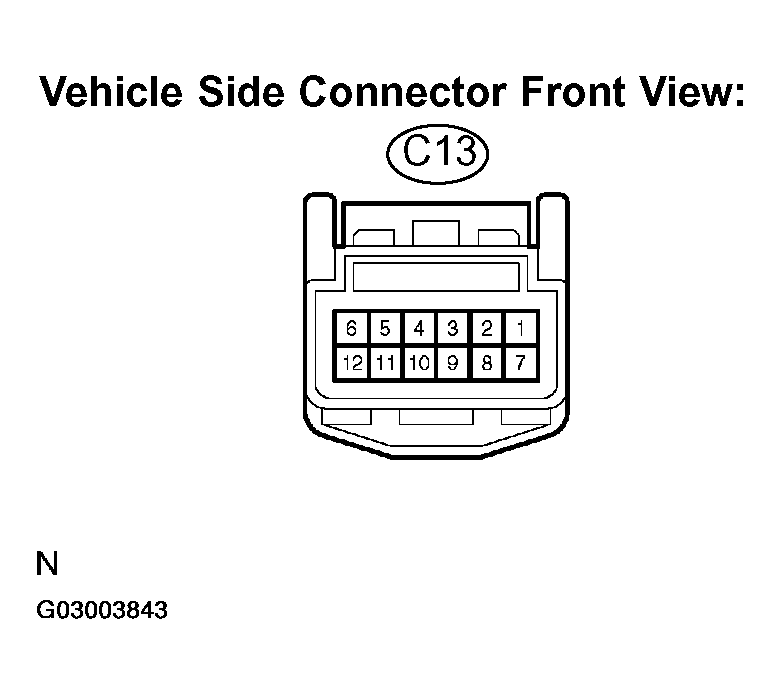

Fig 3: Identifying Spiral Cable Sub-Assy Connector

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: REPLACE SPIRAL CABLE SUB-ASSY (SEE REPLACEMENT )

OK: Go To Next Step.

CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY - ECM)

Measure the resistance according to the value(s) in the table below.

Standard:

SPIRAL CABLE SUB-ASSY AND ECM TERMINALS RESISTANCE

Tester connection	Condition	Specified value
C13-2 - E2-31 (CCS)	Always	Below 1 Ω
C13-4 - E3-20 (CCHG)	Always	Below 1 Ω
C13-2 - Body ground	Always	10 kΩ or higher
C13-4 - Body ground	Always	10 kΩ or higher

Fig 4: Identifying Spiral Cable Sub-Assy Connector

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

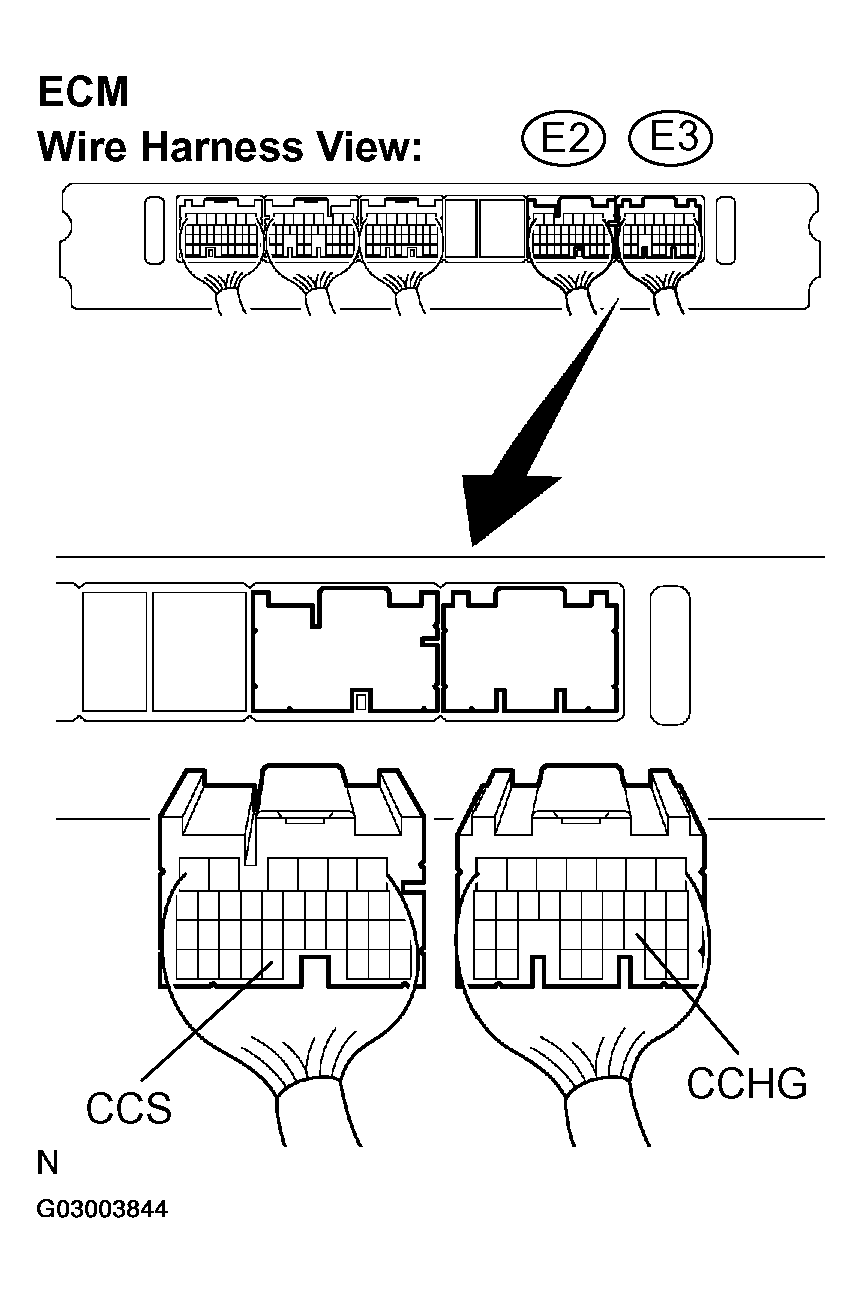

Fig 5: Disconnecting ECM Connector

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go To Next Step.

CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Standard:

SPIRAL CABLE SUB-ASSY CONNECTOR TERMINALS RESISTANCE

Tester connection	Condition	Specified value
C13-3 - Body ground	Always	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

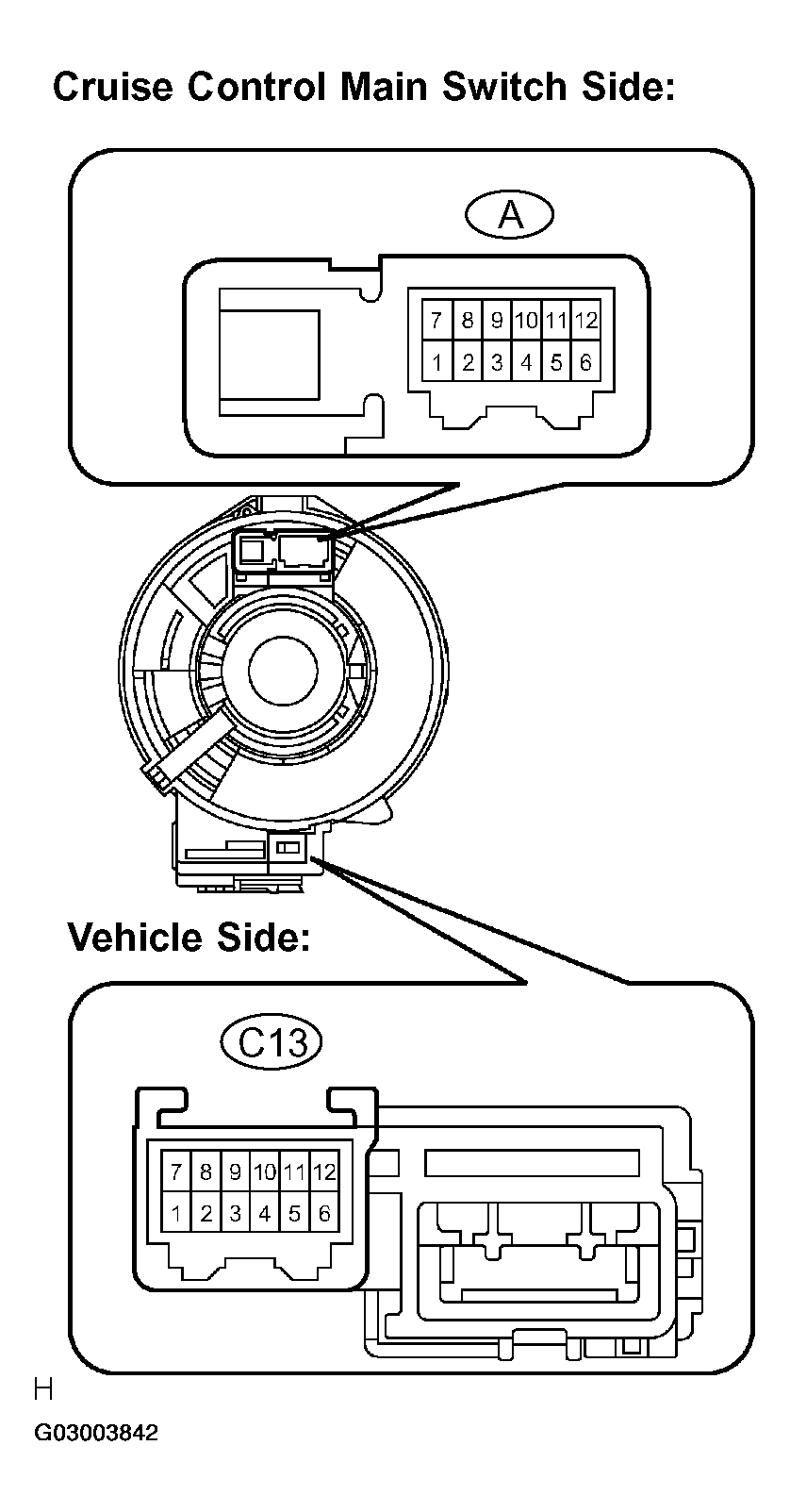

Fig 6: Identifying Spiral Cable Sub-Assy Connector Terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

OK: REPLACE ECM (SEE REPLACEMENT )
