Circuit Description

The skid control ECU sends signals such as cruise control cancel demand signal, brake operation demand response signal from the ECM, etc. to the ECM when the dynamic radar cruise control system is in operation.

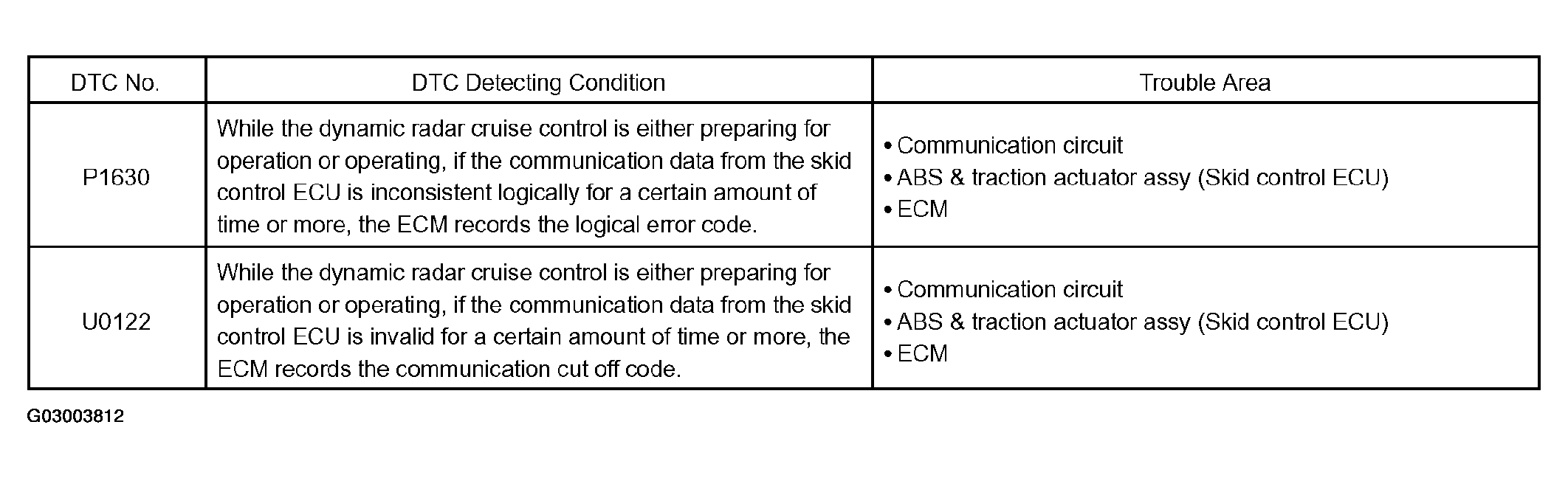

Fig 1: DTC P1630 And U0122 Problem Symptom Diagnostic Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
