Inspection Procedure

NG: REPLACE REMOTE CONTROL MIRROR

OK: GO TO NEXT STEP

1. Driver side:

   Check the wire harness.

   1. Disconnect the D25 ECU connector.
   2. Disconnect the I19 mirror connector
   3. Measure the resistance of the wire harness side connectors.

   Standard

   RESISTANCE SPECIFICATIONS



   Tester Connection	Specified Condition
   D25-7 (ECI+) - I19-2 (EC+)	Below 1 Ω
   D25-18 (ECI-) - I19-3 (EC-)	Below 1 Ω

2. Passenger side:

   Check the wire harness.

   1. Disconnect the F17 ECU connector.
   2. Disconnect the I19 mirror connector.
   3. Measure the resistance of the wire harness side connectors.

Standard

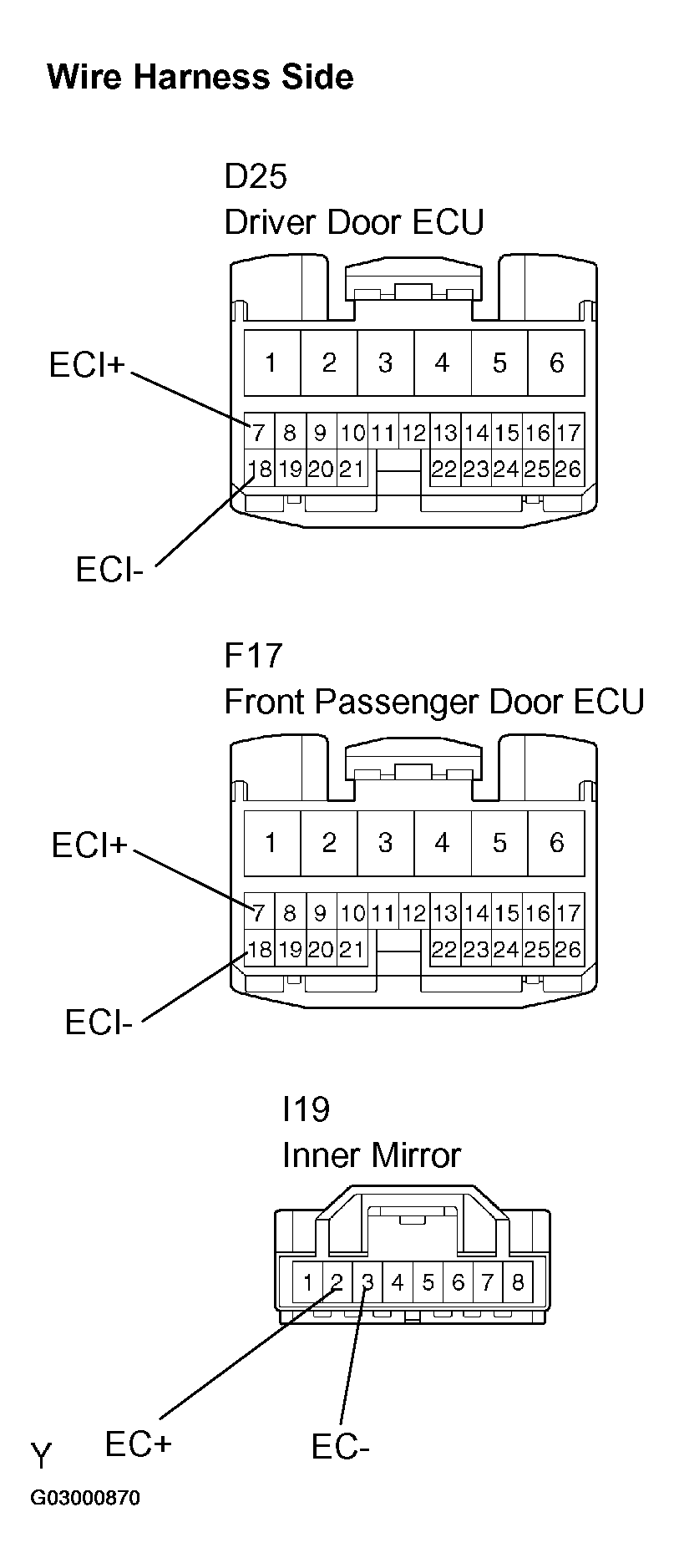

Fig 1: Identifying Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON  PROBLEM SYMPTOMS TABLE
