Inspection Procedure
- READ VALUE OF HAND-HELD TESTER
- Connect the hand-held tester (with CAN VIM) to the DLC3.
- Turn the ignition switch ON and press the hand-held tester main switch ON.
- Select the items below in the DATA LIST, and read the displays on the hand-held tester.
DRIVER SIDE J/B ECU:
DATA LIST REFERENCEItem Measurement Item/Display (Range) Normal condition MIRR FOLD SW Mirror retract switch signal ON or OFF ON: Switch is ON OFF: Switch is OFF MIRR RETRN SW Mirror return switch signal ON or OFF ON: Switch is ON OFF: Switch is OFF OK:
On the tester screen, each item should change between ON and OFF according to the above chart.
NG: Go to step 2
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE

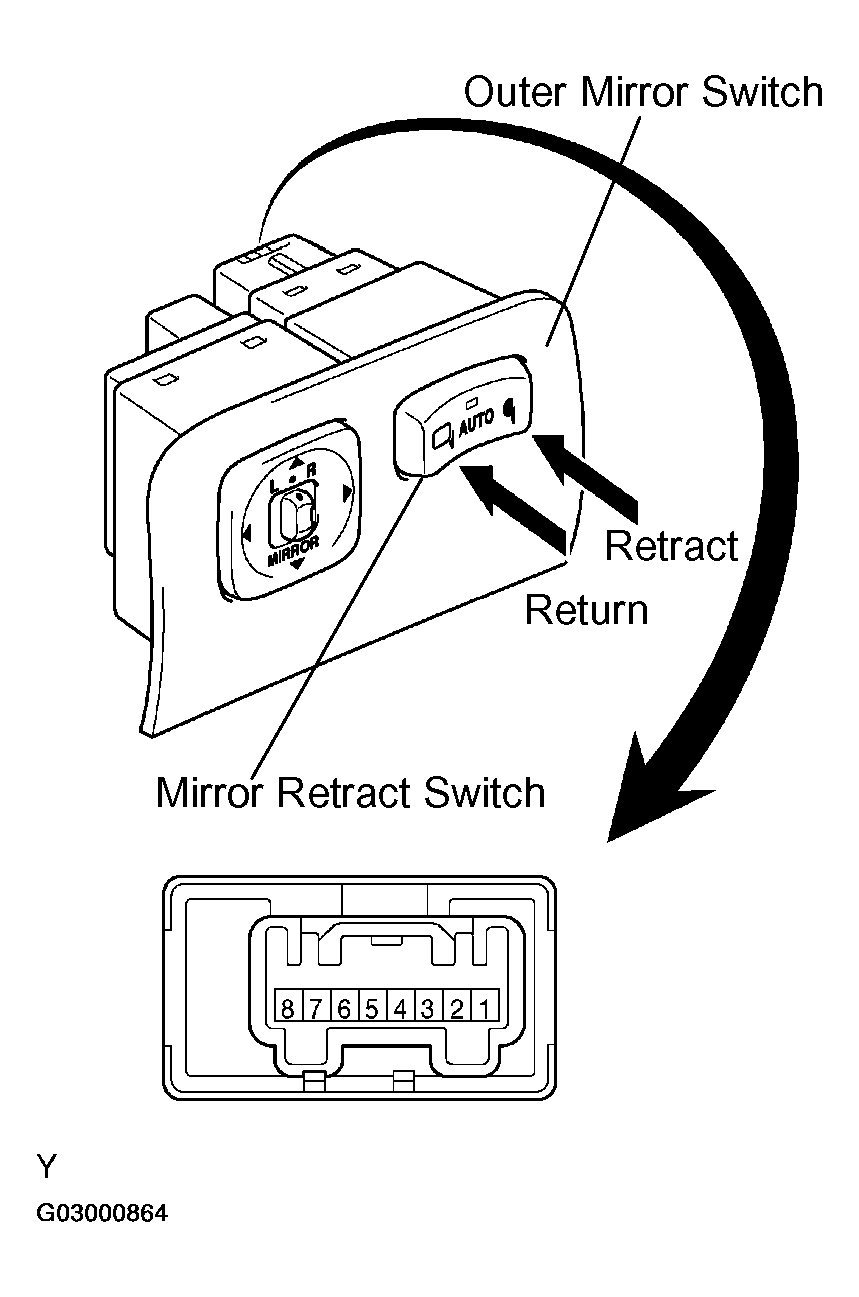

- INSPECT OUTER MIRROR SWITCH (MIRROR RETRACT SWITCH)
- Measure the resistance of the mirror retract switch.
Standard
MIRROR RETRACT SWITCH RESISTANCE SPECIFICATIONSTester Connection Switch Condition Specified Condition 7 - 4 RETURN Below 1 Ω 2 - 4 RETRACT Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE OUTER MIRROR SWITCH
OK: GO TO NEXT STEP

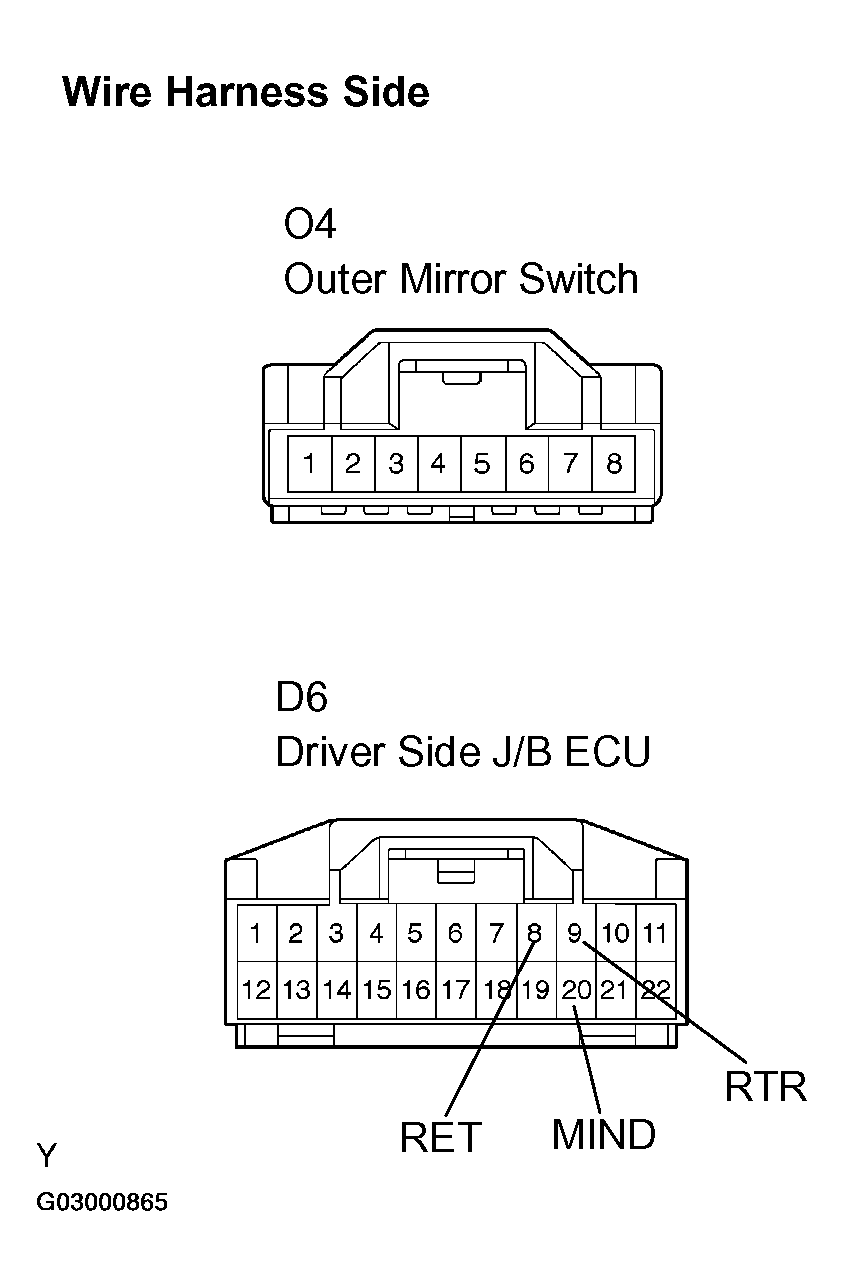

- CHECK WIRE HARNESS (OUTER MIRROR SWITCH - DRIVER SIDE J/B ECU)
- Disconnect the O4 switch connector.
- Disconnect the D6 ECU connector.
- Measure the resistance of the wire harness side connectors.
Standard
RESISTANCE SPECIFICATIONSTester Connection Specified Condition O4-6 - D6-19 (MIND) Below 1 Ω 04-2 - D6-8 (RET) Below 1 Ω O4-7 - D6-9 (RTR) Below 1 Ω O4-4 - Body ground Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
