Data List/Active Test

DATA LIST

HINT:

Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

Connect the hand-held tester to the Controller Area Network Vehicle Interface Module (CAN VIM). Then connect the CAN VIM to the DLC3.
Turn the ignition switch ON.
Read the DATA LIST.

Theft warning ECU assy:

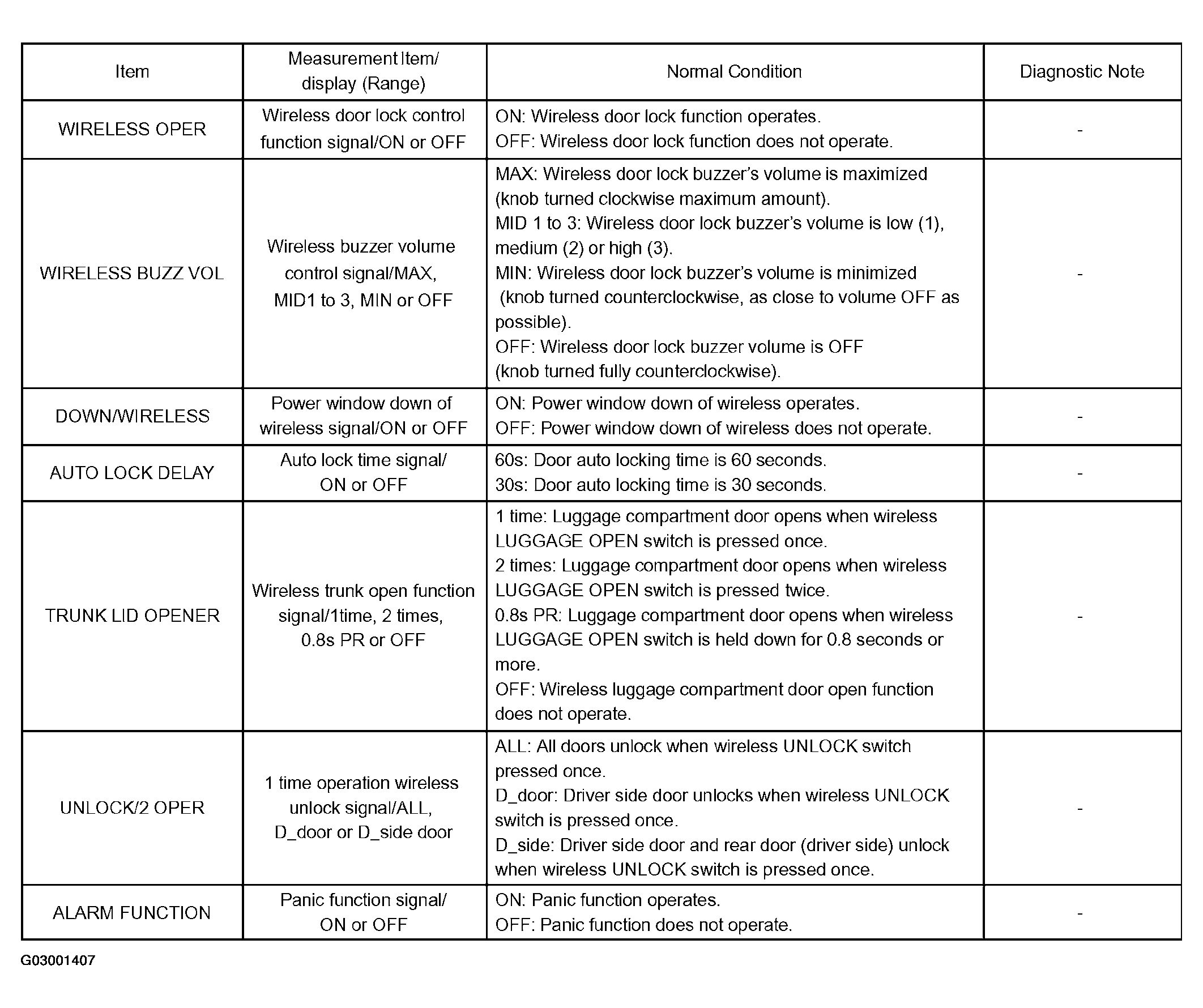

Fig 1: Item Measurement Item/ Display (Range)Normal Condition Diagnostic Note

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Transponder key ECU assy:

MEASUREMENT ITEM/DISPLAY DESCRIPTION

Item	Measurement Item/display (Range)	Normal Condition	Diagnostic Note
KEY SW	Unlock warning switch signal/ON or OFF	ON: Key is in ignition key cylinder. OFF: No key is in ignition key cylinder.	-

ACTIVE TEST

HINT:

Performing the hand-held tester's ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.

Connect the hand-held tester (with CAN VIM) to the DLC3.
Turn the ignition switch ON.
Perform the ACTIVE TEST.

Theft warning ECU assy:

DIAGNOSTIC NOTE

Item	Test Details	Diagnostic Note
OVERHEAD TURNER	Turn flasher relay ON/OFF	-
BUZ RESP SOUND	Turn wireless door lock buzzer ON/OFF	-
