Wireless Door Lock Control System (W/O Smart Key System): Replacement

REMOVE TRANSMITTER SUB-ASSY MODULE SET DOOR CONTROL
NOTE: Take extra care when handling these precision electronic components.

HINT:

The installation procedure is the removal procedure reverse order.
1. Using a screwdriver, remove the screw.
2. Push the cover with your finger as shown in the illustration so a gap appears. Then, pry out the cover using that gap.
NOTE: Do not forcibly pry up the cover.

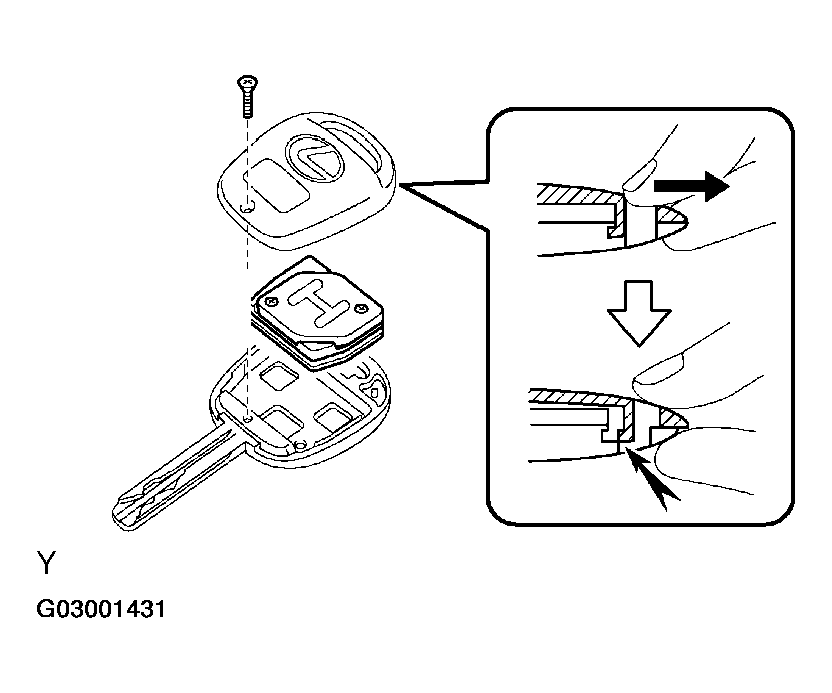

Fig 1: Removing Transmitter Sub-Assy Module Set Door Control
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMITTER BATTERY
1. Using a screwdriver, remove the 2 screws and cover.
2. Remove the transmitter battery (lithium battery).
NOTE:
- Do not push the terminals with your finger.
- Do not forcibly pry up the battery (lithium battery). The terminals may become damaged.
- Do not touch the battery with wet hands. Water may cause rust.
- Do not touch or move any components inside the transmitter, as it may cease to work.

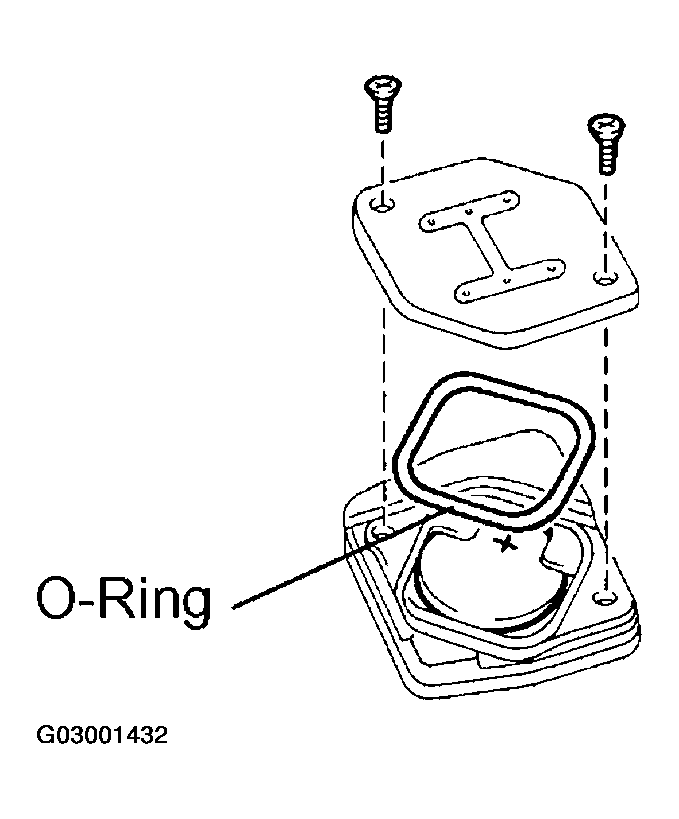

Fig 2: Removing Screws And Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMITTER BATTERY
1. Install a new battery (lithium battery) with the positive (+) side up, as shown in the illustration.
  NOTE:
  - Be sure that the positive side and the negative side of the transmitter battery are matched up correctly.
  - Be careful not to bend the transmitter battery electrode during insertion.
  - Keep the transmitter case interior free of dust and oil.
2. Check that O-ring is not distorted or slipped off, and install the cover.
3. Using a screwdriver, tighten the 2 screws.
NOTE: If the screws are loose, it may cause faulty contact between the battery (lithium battery) and the terminals.

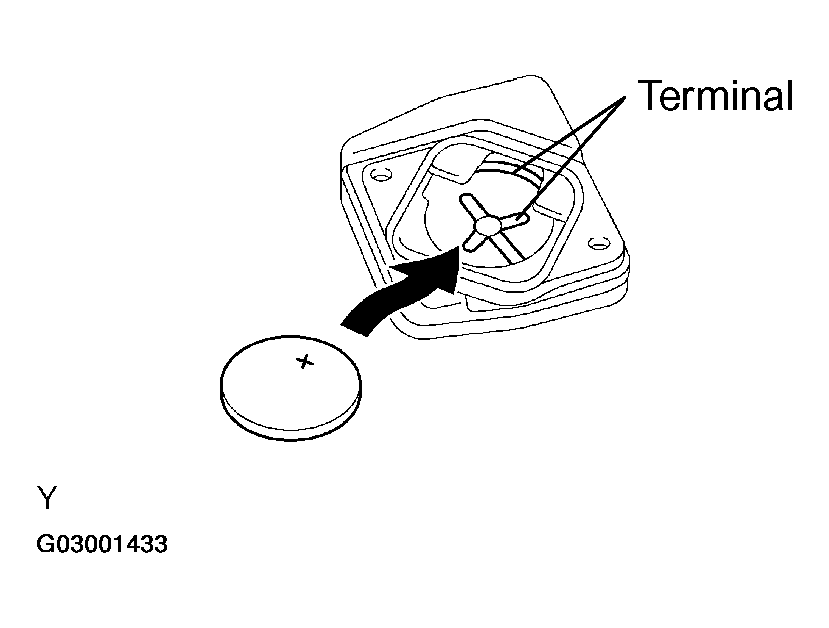

Fig 3: Installing Battery (Lithium Battery) With Positive (+) Side Up
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
