Data List/Active Test
- DATA LIST
HINT:
Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.
- Connect the hand-held tester to the Controller Area Network Vehicle Interface Module (CAN VIM). Then connect the CAN VIM to the DLC3.
- Turn the ignition switch ON.
- Read the DATA LIST.

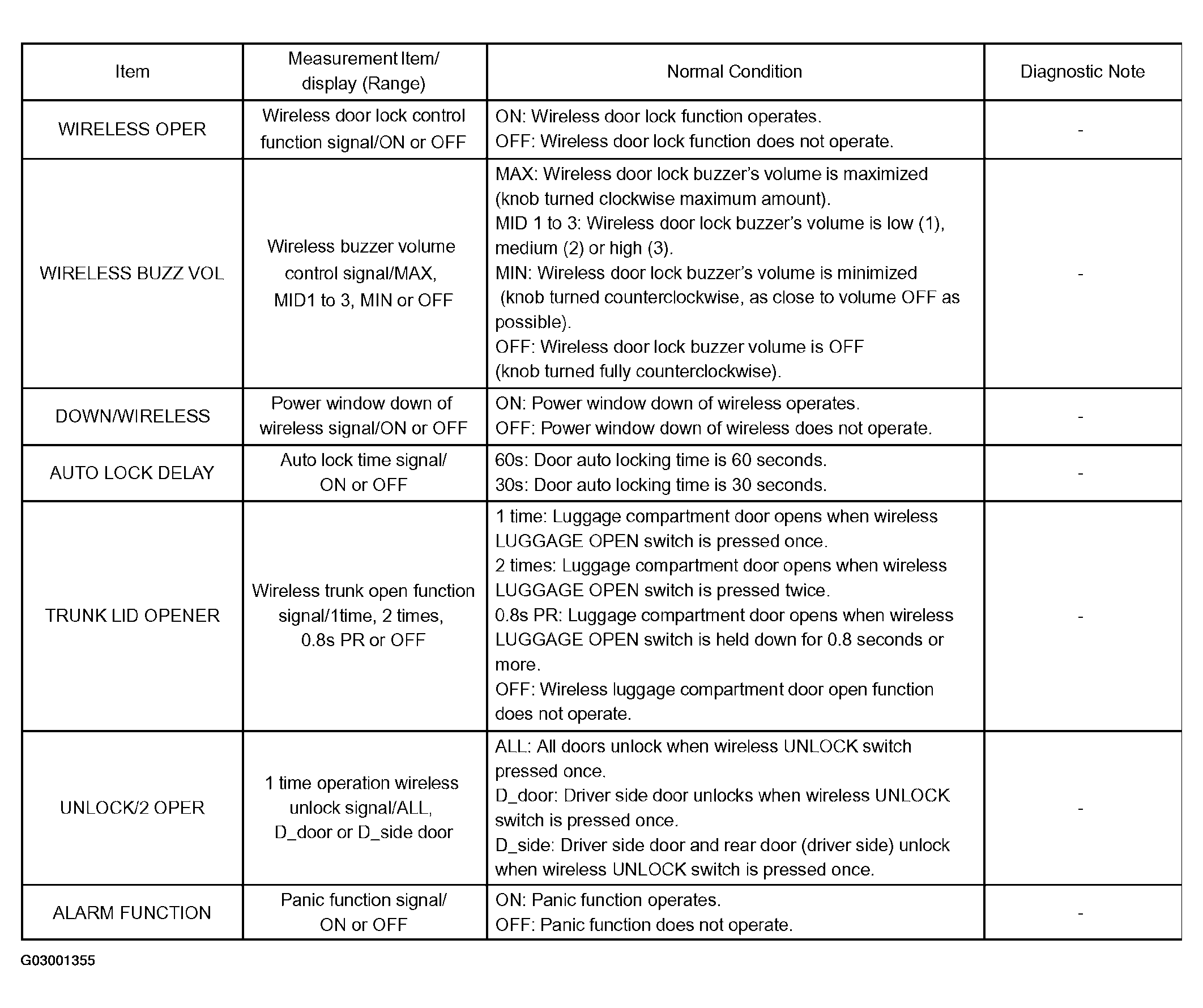

Theft warning ECU assy:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Steering lock ECU:
MEASUREMENT ITEM/DISPLAYItem Measurement Item/display (Range) Normal Condition Diagnostic Note KEY SW Unlock warning switch signal/ON or OFF ON: Key is in ignition key cylinder. OFF: No key is in ignition key cylinder. - - ACTIVE TEST
HINT:
Performing the hand-held tester's ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.
- Connect the hand-held tester to (with CAN VIM) to the DLC3.
- Turn the ignition switch ON.
- Perform the ACTIVE TEST by following the directions on the tester screen.
Theft warning ECU assy:
DIAGNOSTIC NOTE DESCRIPTIONItem Test Details Diagnostic Note OVERHEAD TURNER Turn flasher relay ON/OFF - BUZ RESP SOUND Turn wireless door lock buzzer ON/OFF -
