Diagnosis System

1. Wireless door lock control system data and the Diagnostic Trouble Codes (DTCs) can be read in the Data Link Connector 3 (DLC3) of the vehicle. When the system seems to be malfunctioning, use the hand-held tester to check for malfunctions and perform repairs.

HINT:

The vehicle uses the ISO 15765-4 communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.

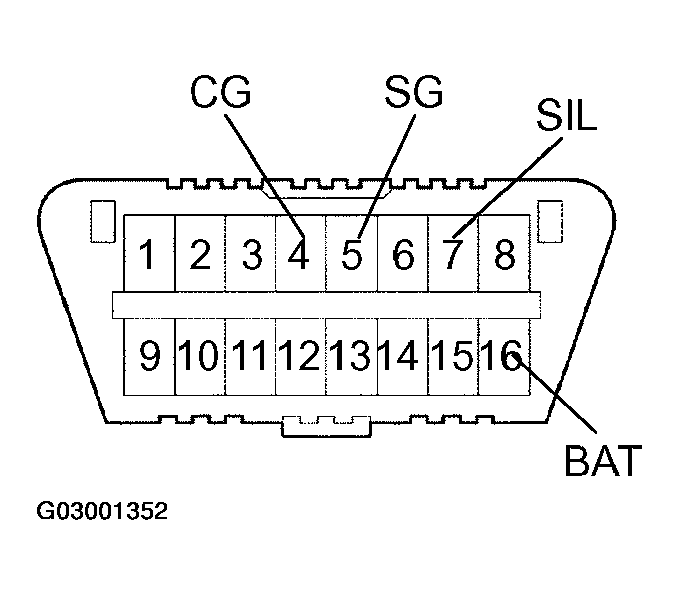

Fig 1: Identifying DLC3 Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.

HINT:

Connect the cable of the hand-held tester (with CAN VIM) to the DLC3, turn the ignition switch ON and attempt to use the hand-held tester. If the screen displays the message UNABLE TO CONNECT TO VEHICLE, there is a problem either with the vehicle or with the tester.

• If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
• If communication is still impossible when the tester is connected to another vehicle, the problem is probably in the tester itself. Consult the Service Department listed in the tester's instruction manual.

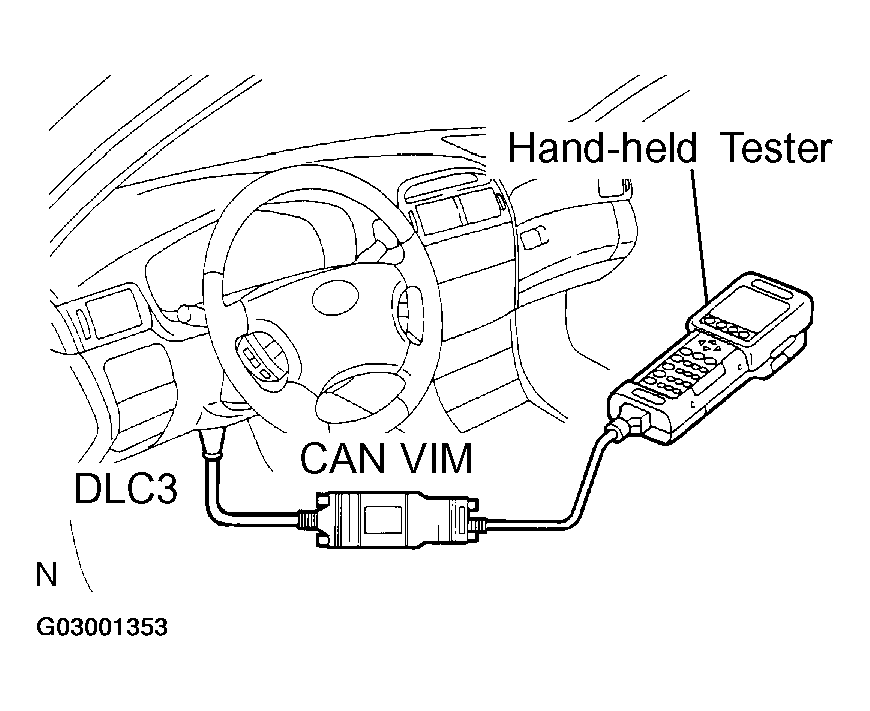

Fig 2: Connecting Cable Of Hand-Held Tester To Dlc3 (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the voltage is below 11 V, replace the battery before proceeding.
