Wireless Door Lock Control System (W/Smart Key System): Replacement

NOTE: Take extra care when handling these precision electronic components.

REMOVE TRANSMITTER BATTERY
1. Using a small screwdriver, pry up the outer cover.
  NOTE: Do not forcibly pry up the cover.

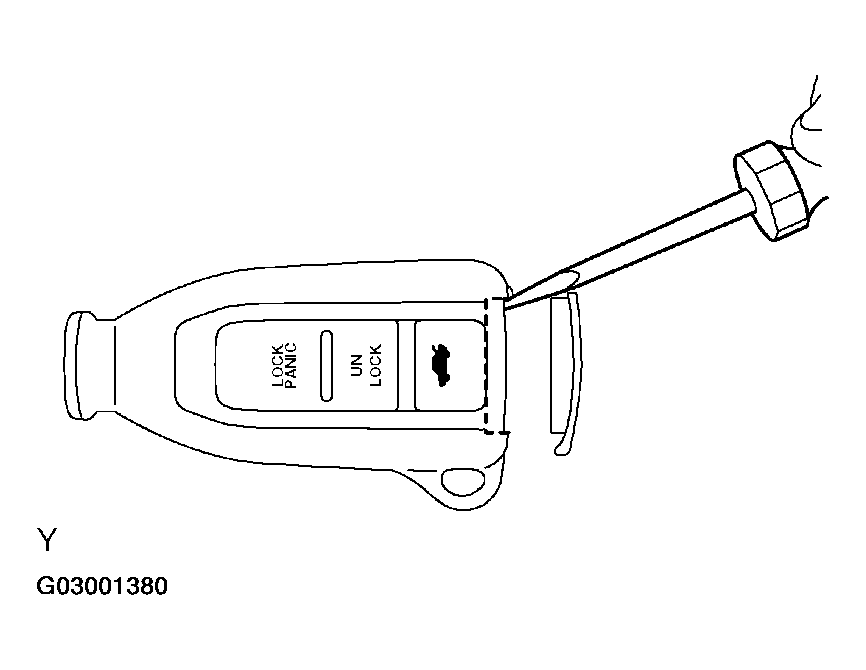

  Fig 1: Prying Up Outer Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

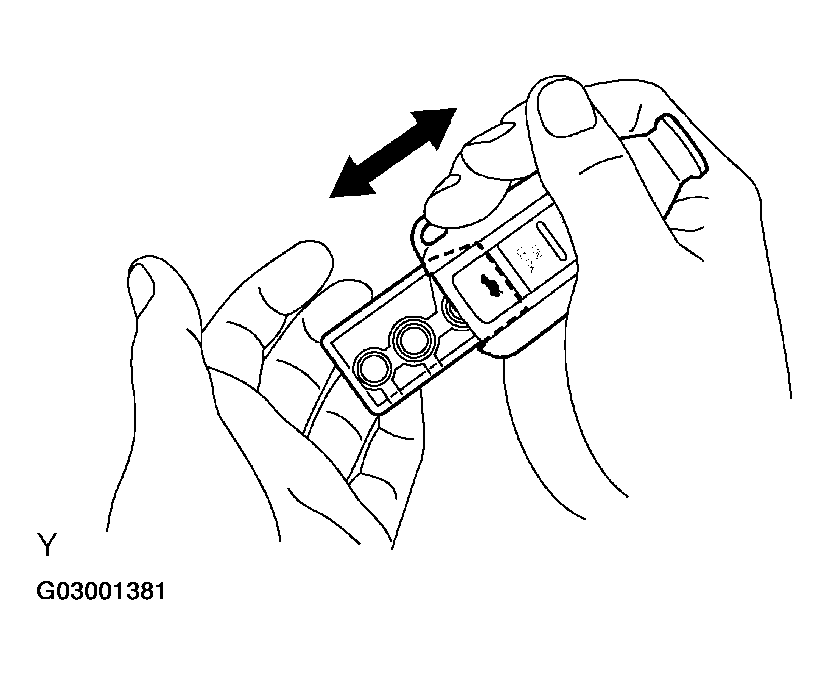

2. Lightly shake the key to take out the transmitter as shown in the illustration.

  Fig 2: Shaking Key To Take Out Transmitter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the battery holder.
4. Remove the battery (lithium battery) from the battery holder.
NOTE:
- Do not push the terminals with your finger.
- Fully insert the holder into the transmitter.

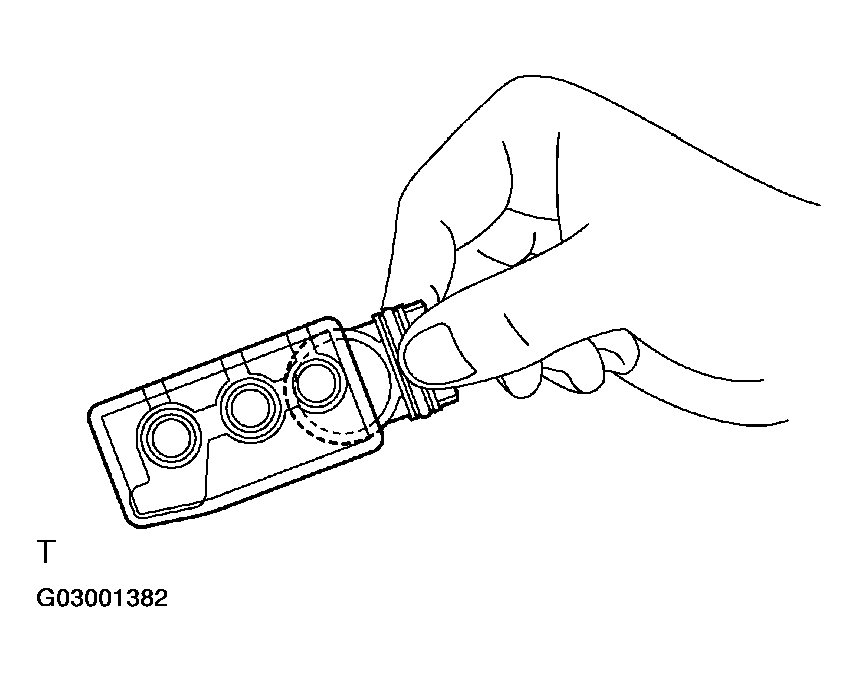

Fig 3: Removing Battery From Battery Holder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMITTER BATTERY
1. Install a new battery (lithium battery) with the positive (+) side up.
  NOTE:
  - Be sure that the positive side and the negative side of the transmitter battery are matched up correctly.
  - Be careful not to bend the transmitter battery electrode during insertion.
  - Keep the transmitter case interior free of dust and oil.
2. Install the outer cover.
