Wireless Buzzer Volume And On/Off Switch Circuit: Wiring Diagram

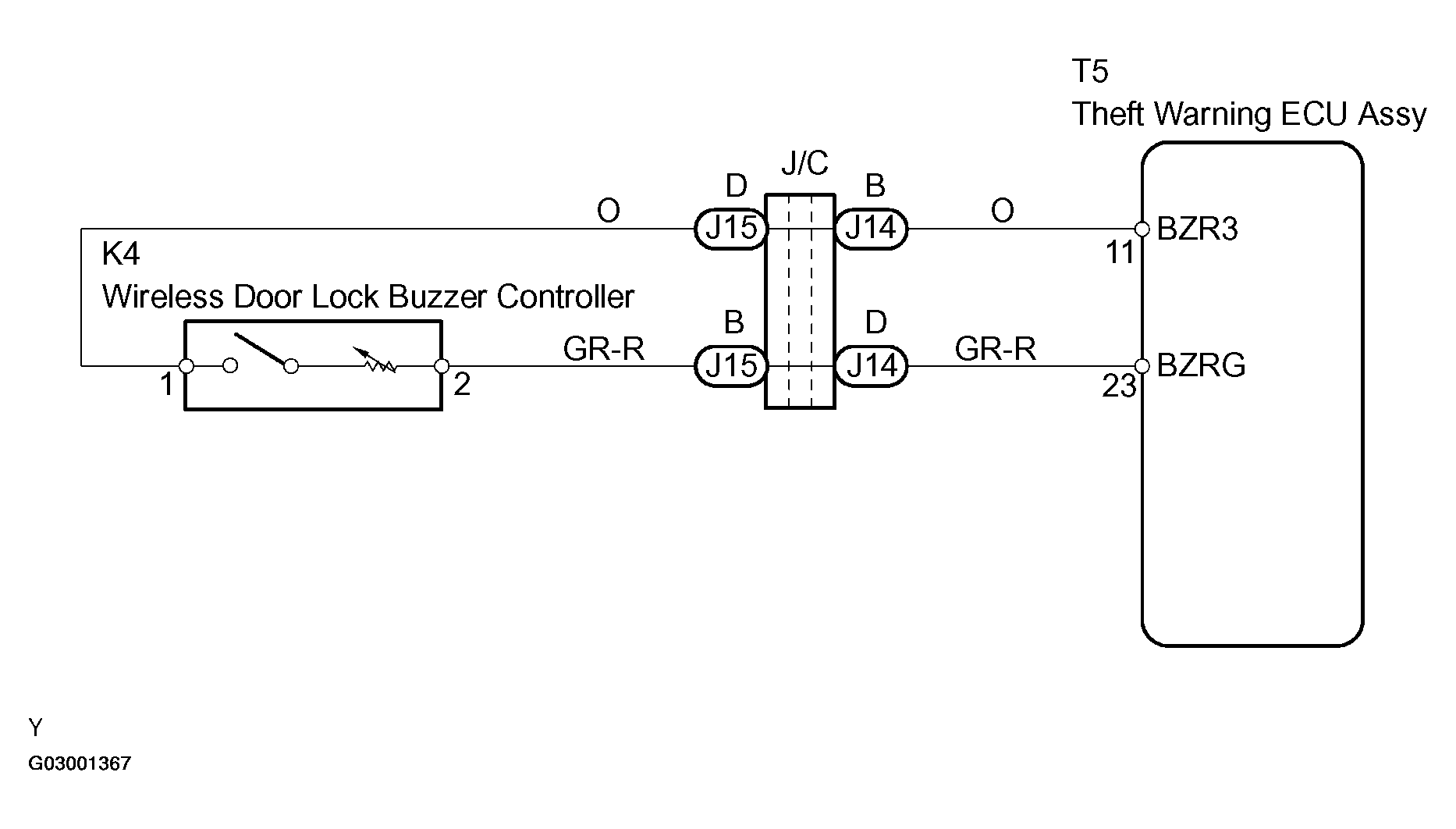

Fig 1: Wireless Buzzer Volume And On/Off Switch Wiring Diagram
G03001367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
