Climate Control Seat System - Diagnostics: Location

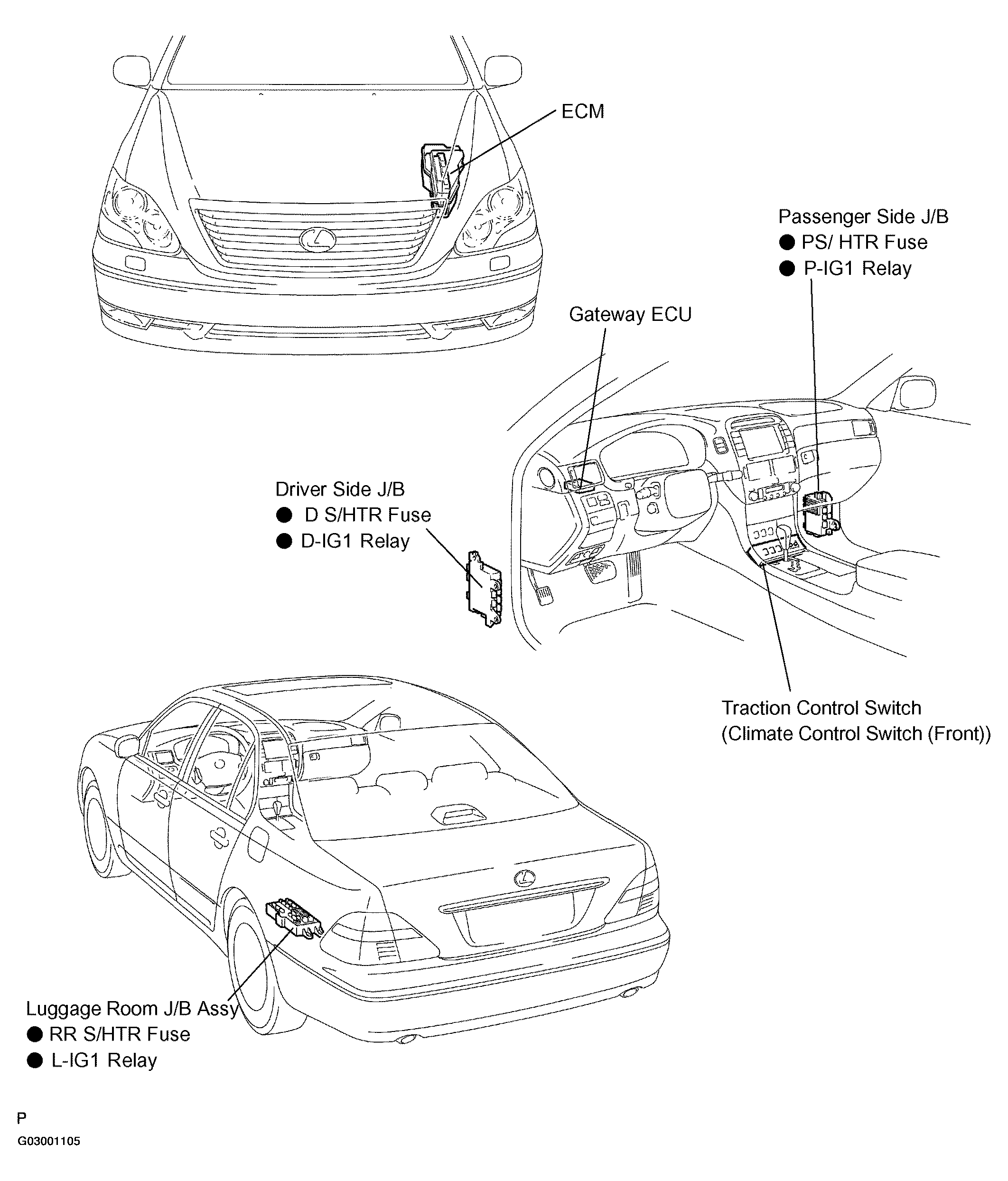

Fig 1: Locating Climate Control Seat System Components (1 Of 2)
G03001105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

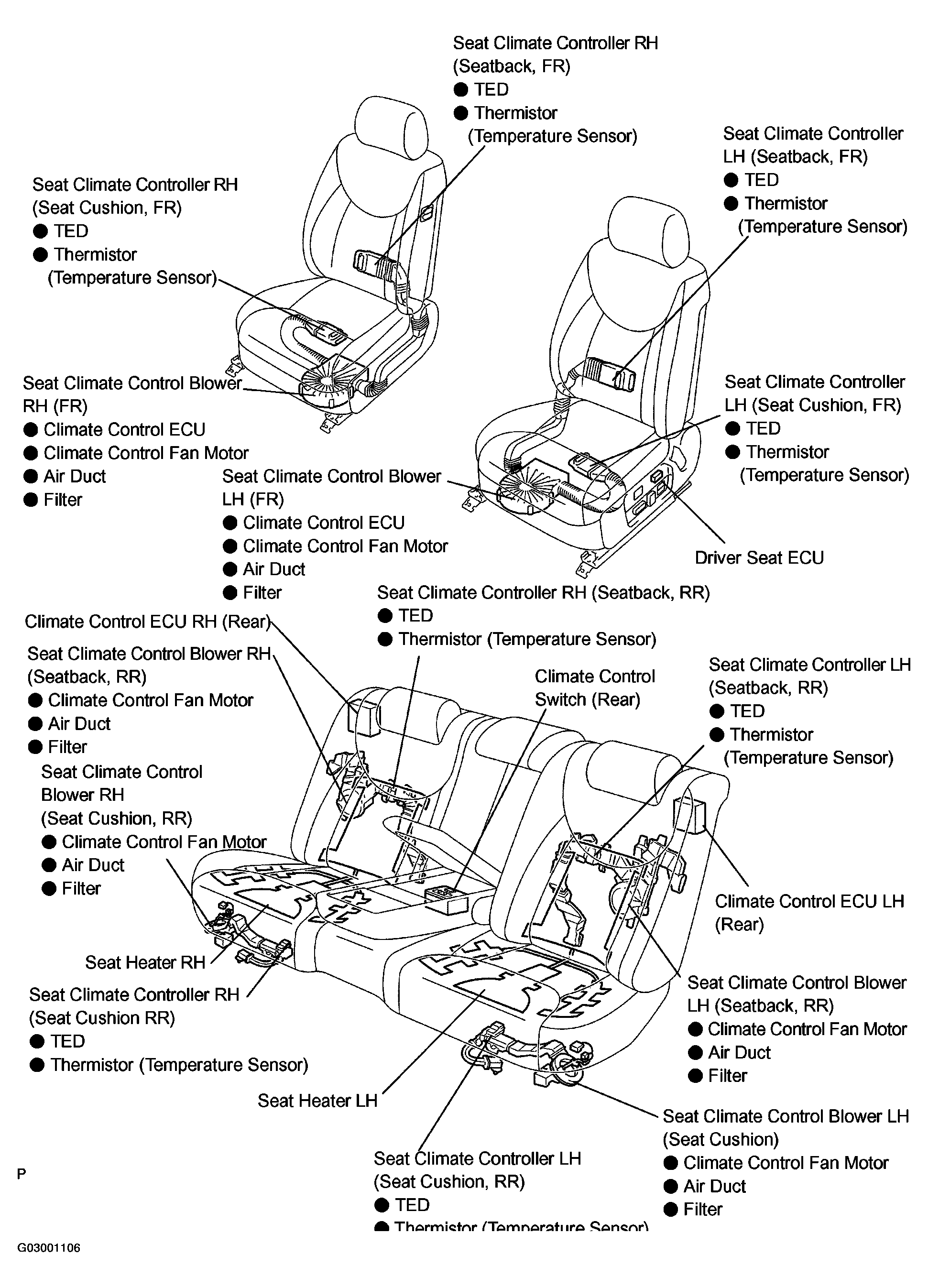

Fig 2: Locating Climate Control Seat System Components (2 Of 2)
G03001106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
