System Diagram

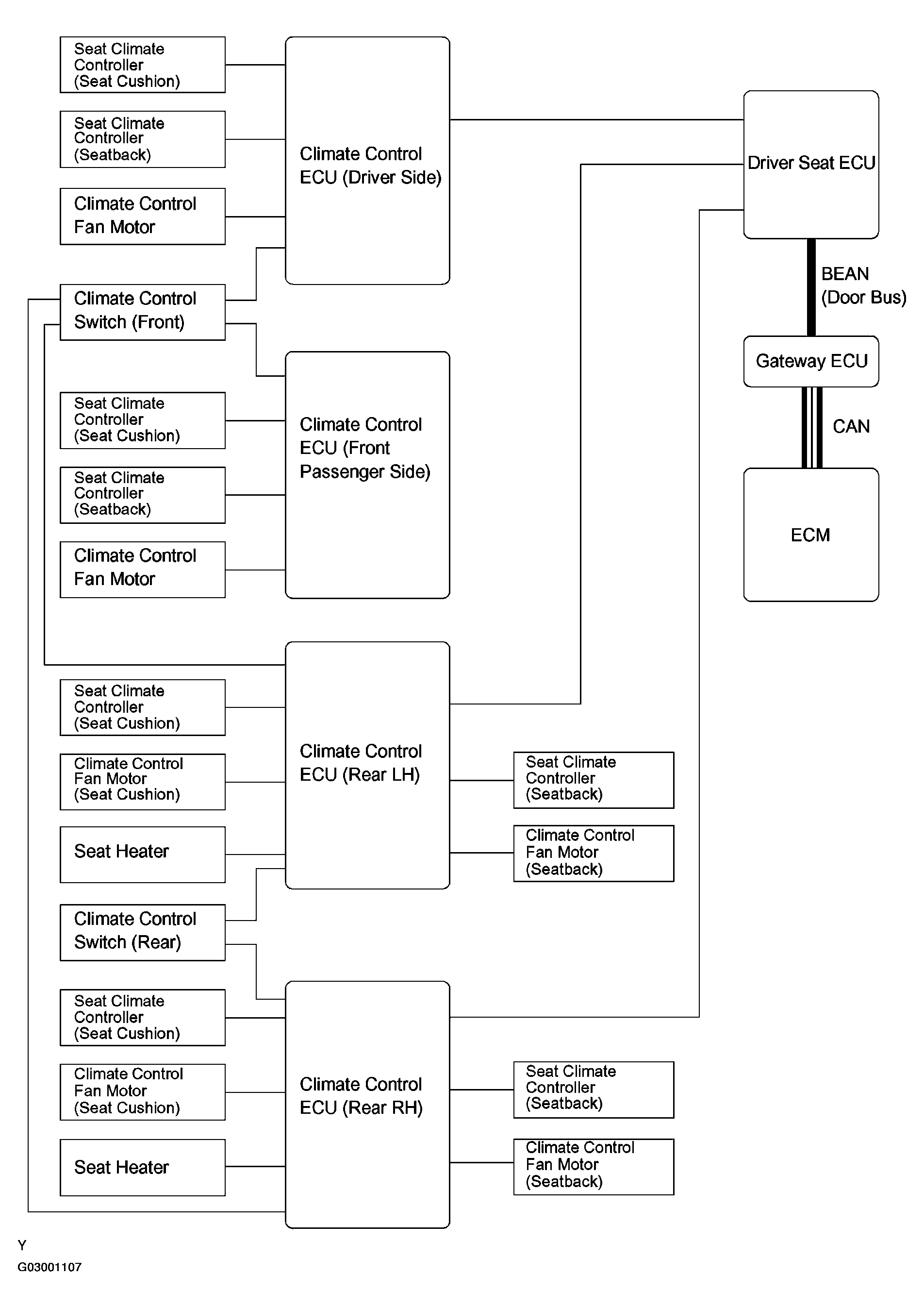

Fig 1: Climate Control Seat System Diagram
G03001107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION

Sender Receiver Signal Line
Climate control ECU ECM Idle-up signal BEAN (Door bus), CAN
