System Diagram

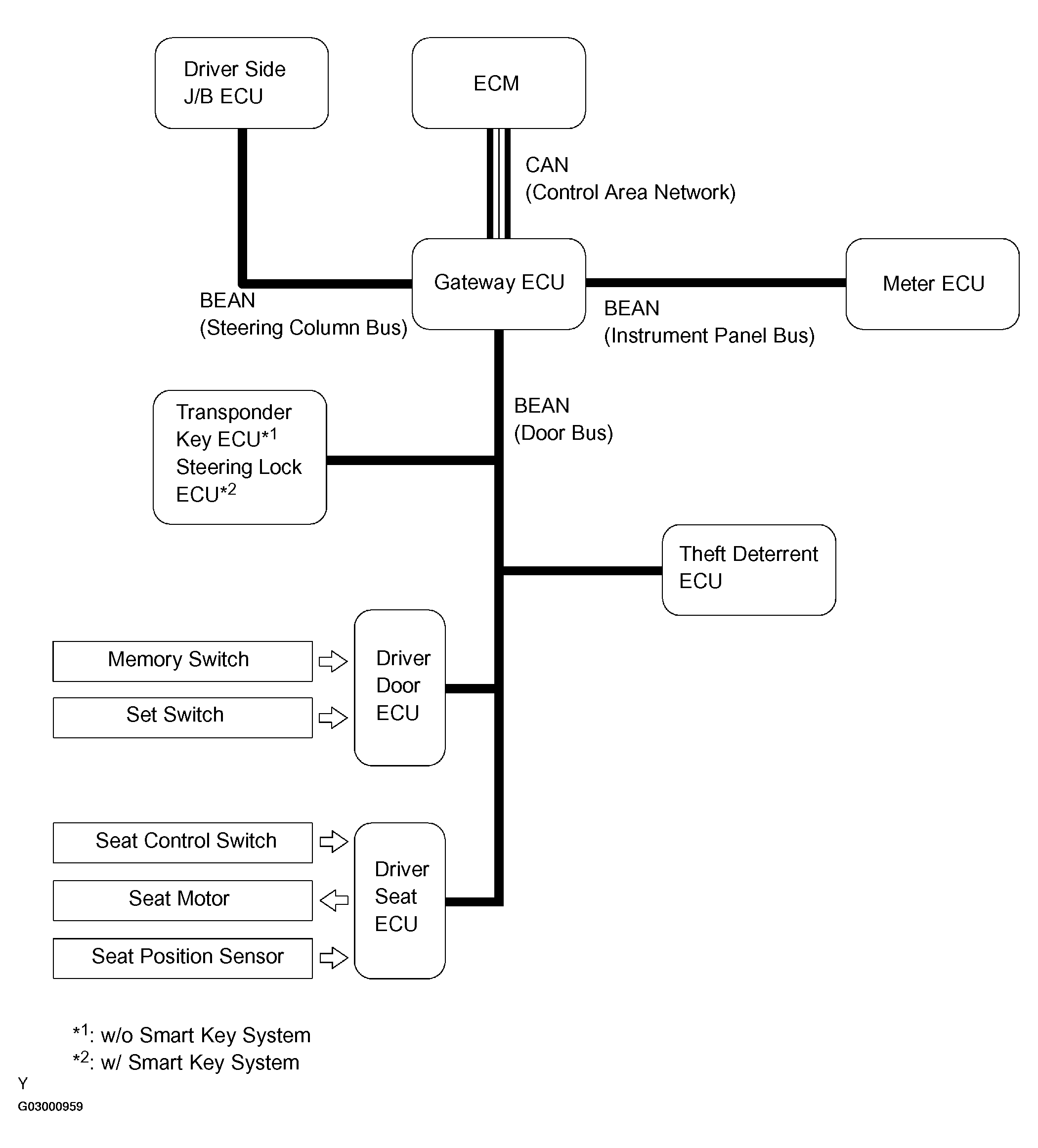

Fig 1: Locating Front Power Seat Control System Diagram
G03000959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

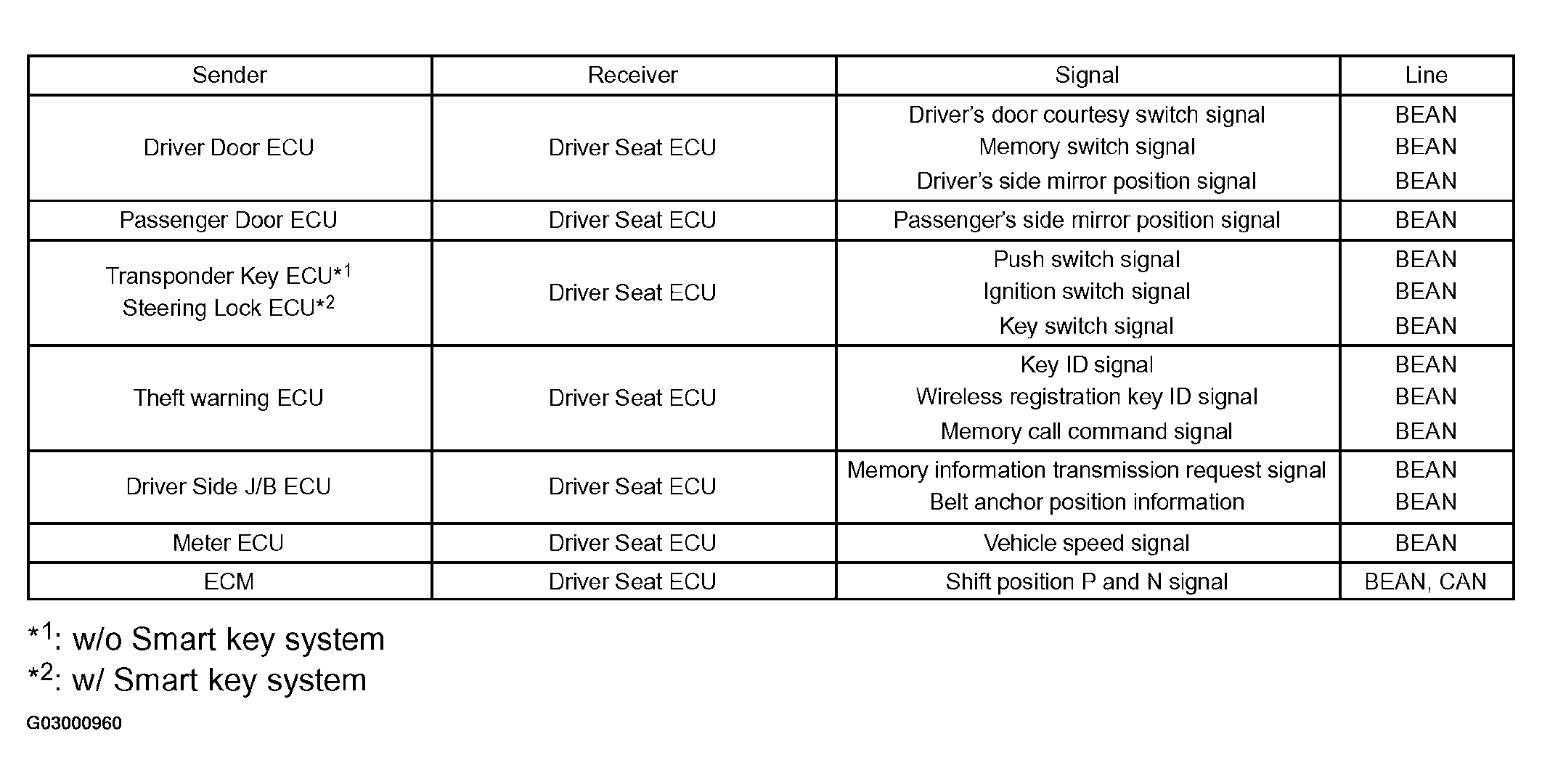

Fig 2: Communication Table
G03000960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
