Smart Key System, Theft Deterrent and Key Reminder: Notes

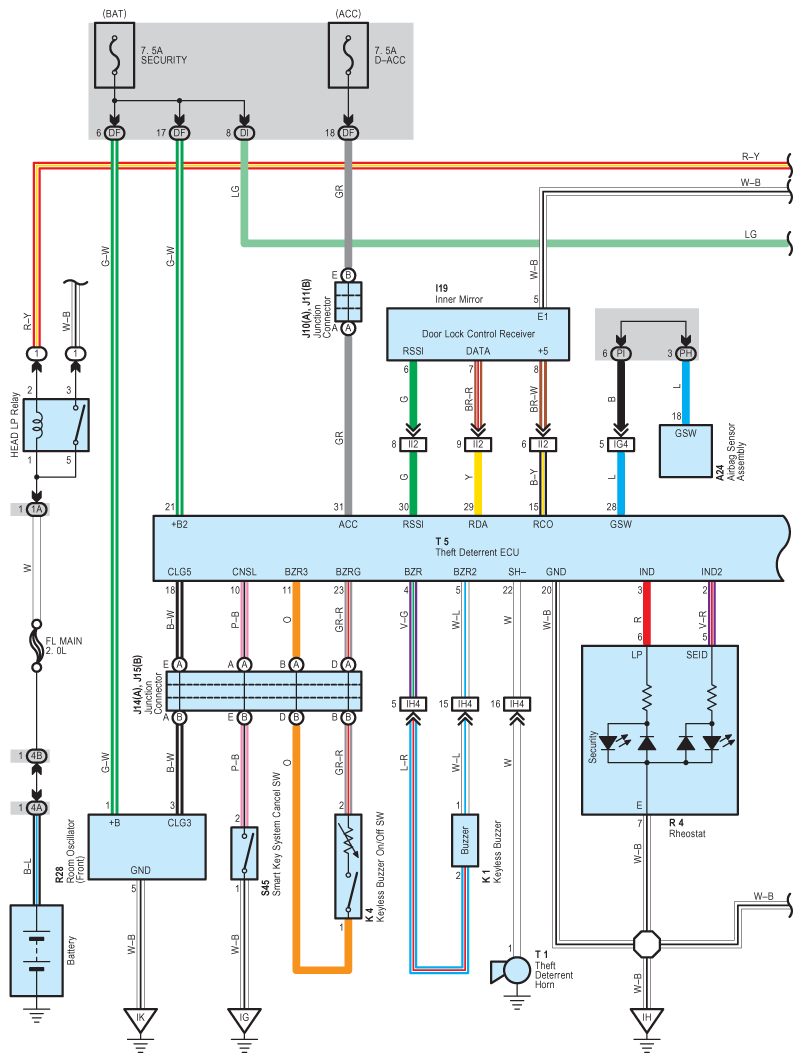

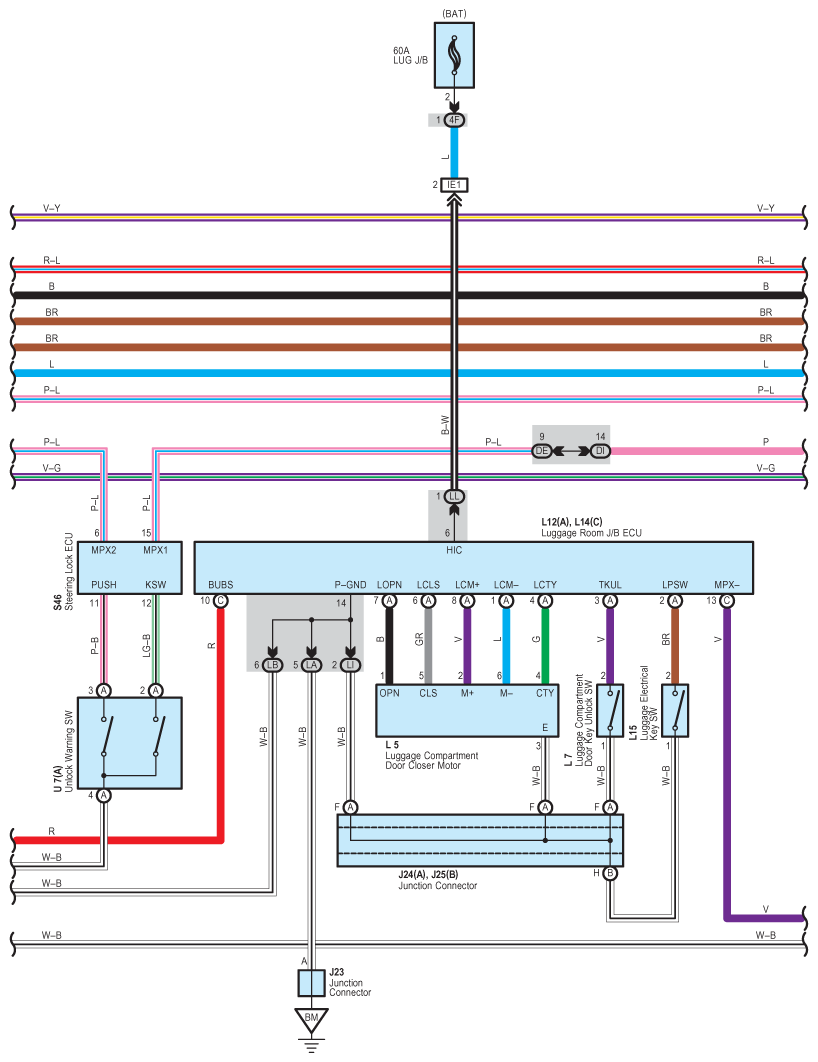

Fig 1: Smart Key System, Theft Deterrent And Key Reminder System Wiring Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

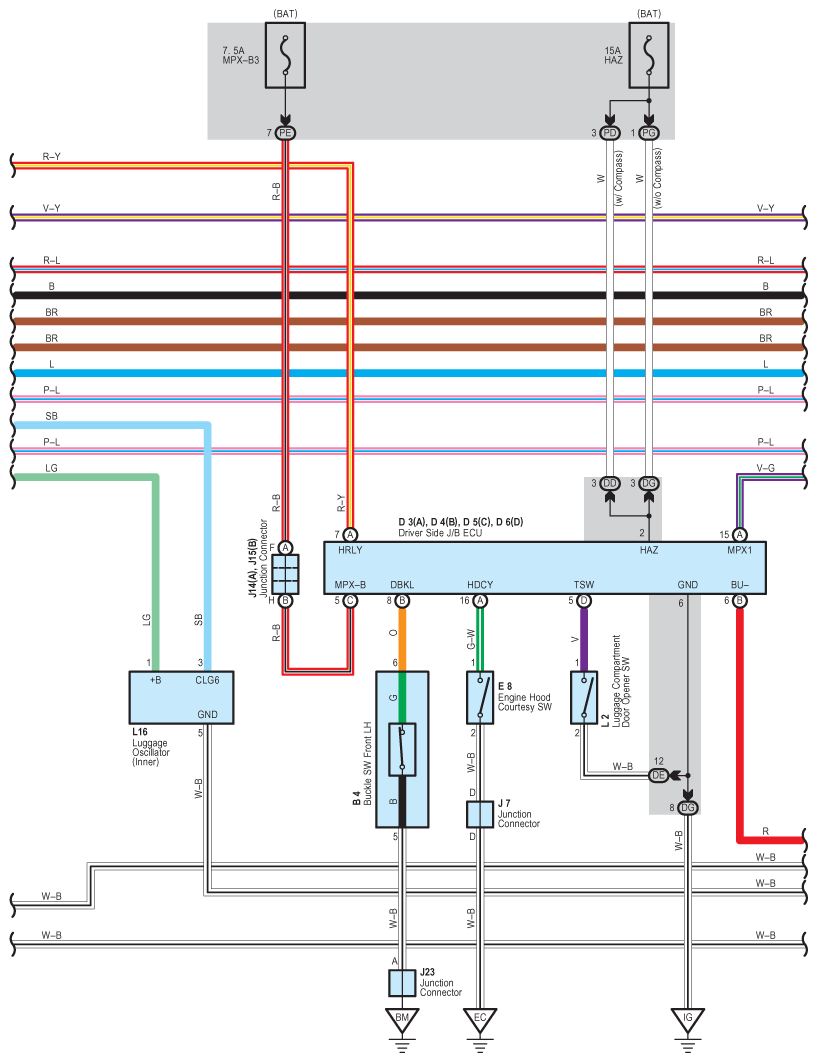

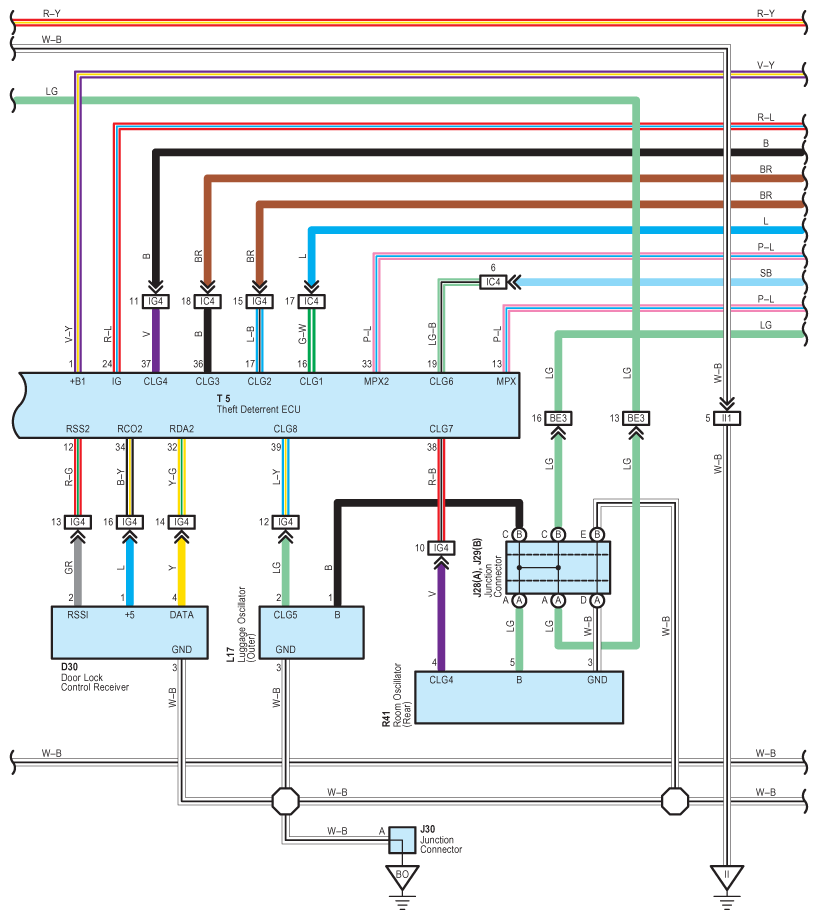

Fig 2: Smart Key System, Theft Deterrent And Key Reminder System Wiring Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

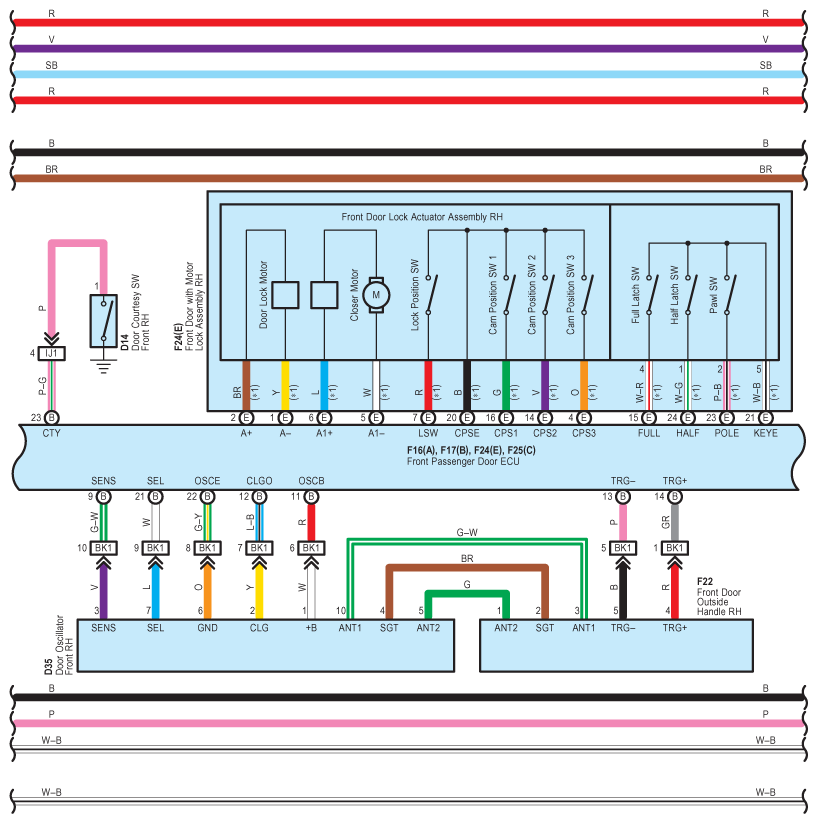

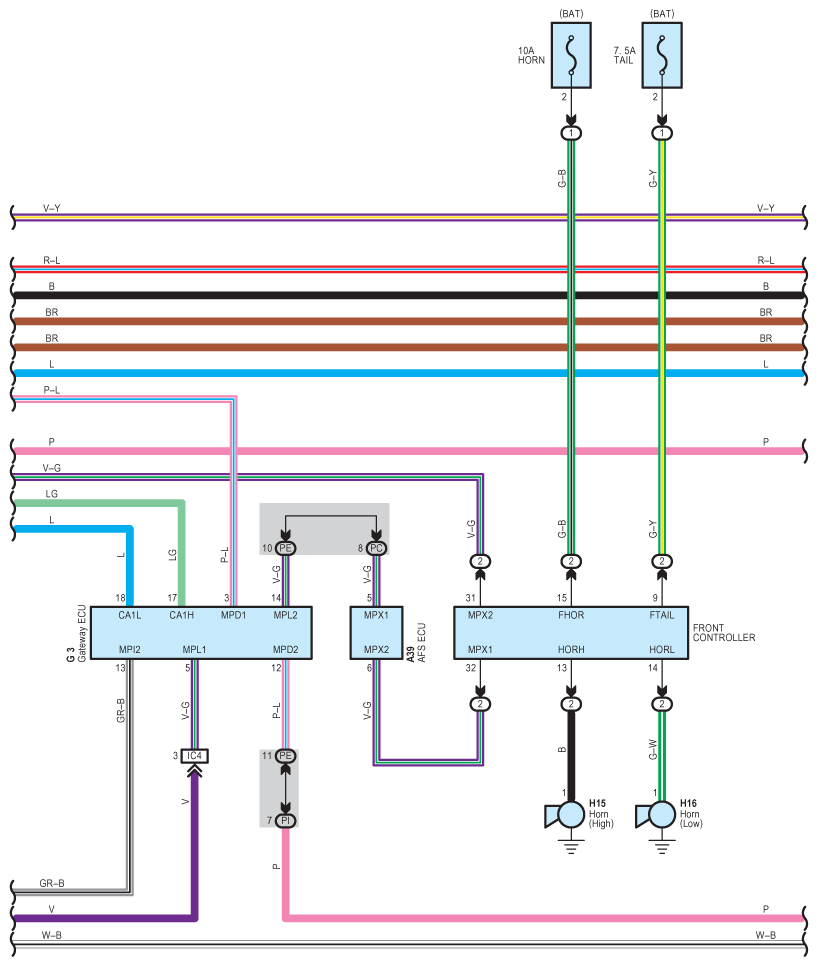

Fig 3: Smart Key System, Theft Deterrent And Key Reminder System Wiring Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

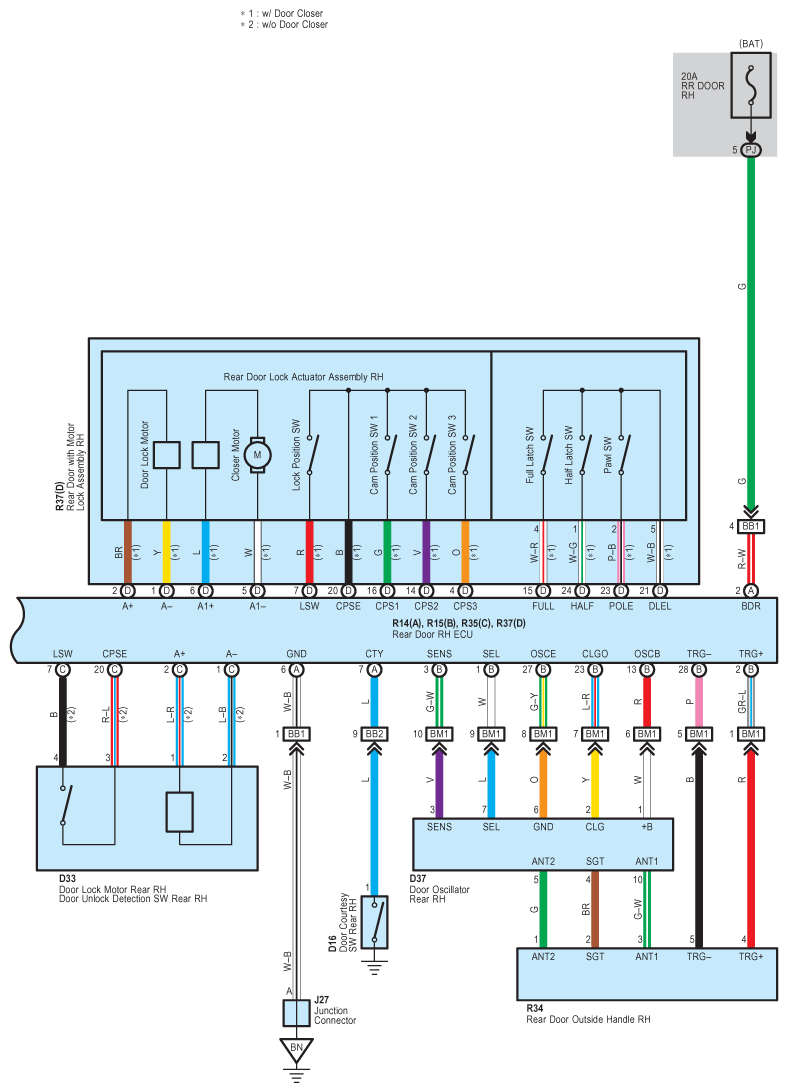

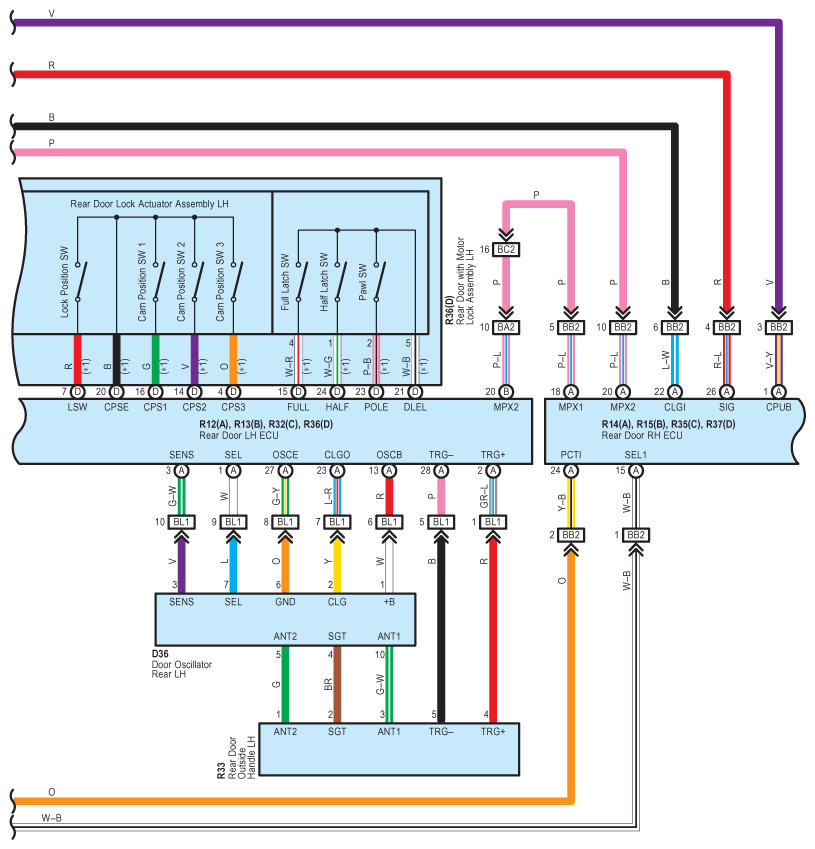

Fig 4: Smart Key System, Theft Deterrent And Key Reminder System Wiring Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

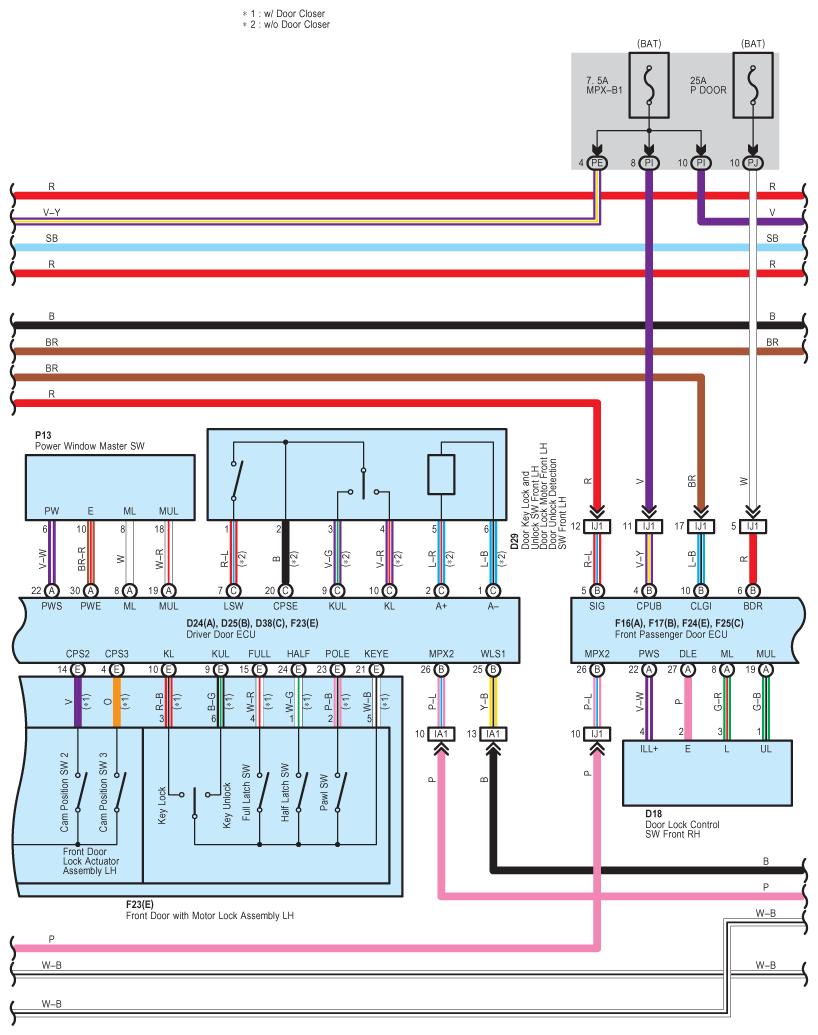

Fig 5: Smart Key System, Theft Deterrent And Key Reminder System Wiring Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

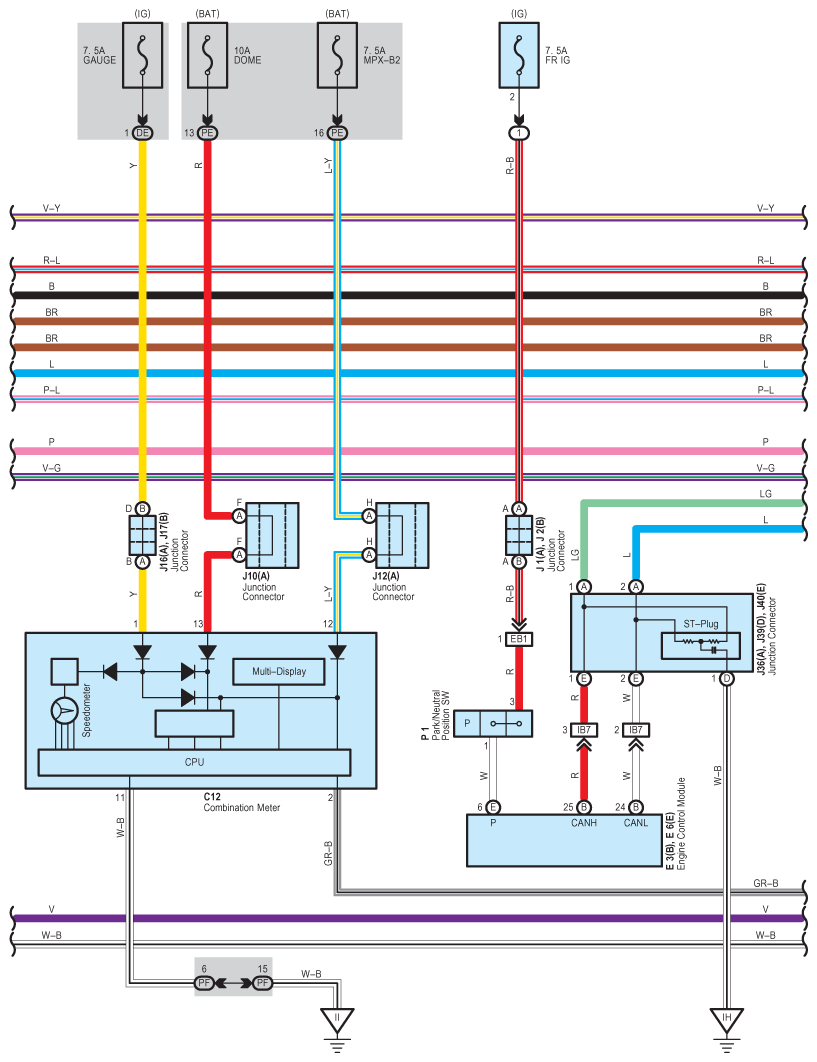

Fig 6: Smart Key System, Theft Deterrent And Key Reminder System Wiring Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

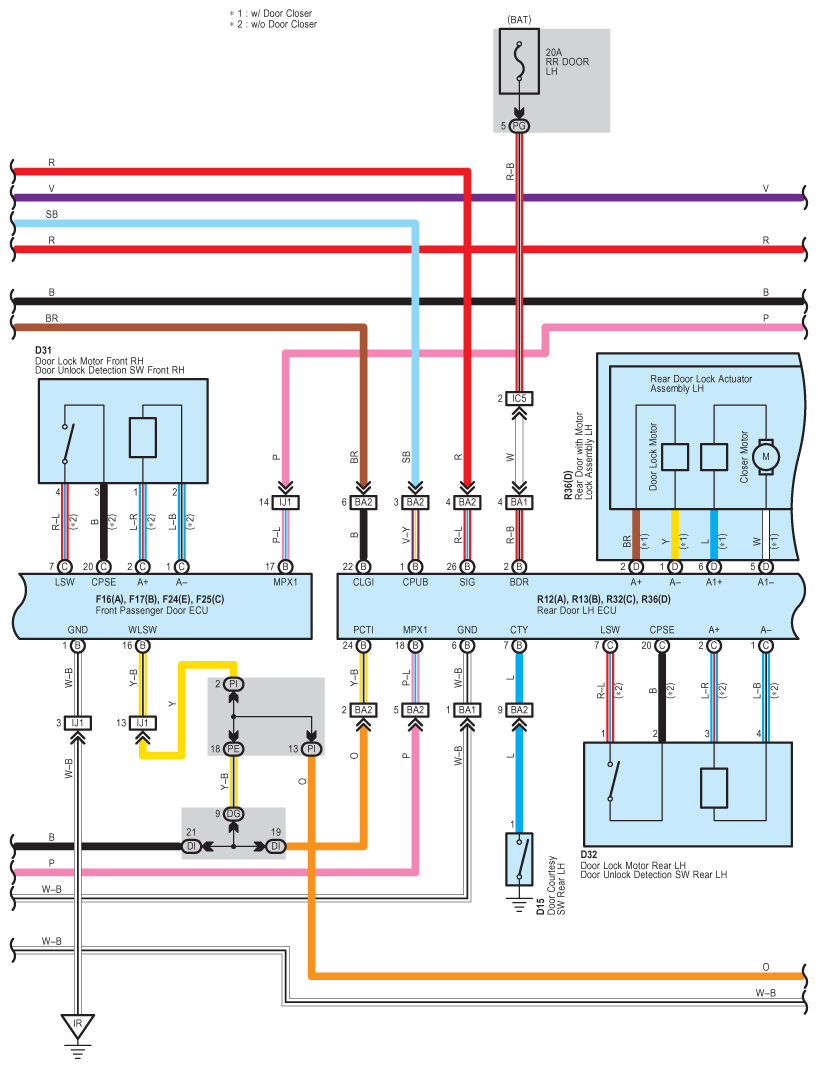

Fig 7: Smart Key System, Theft Deterrent And Key Reminder System Wiring Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

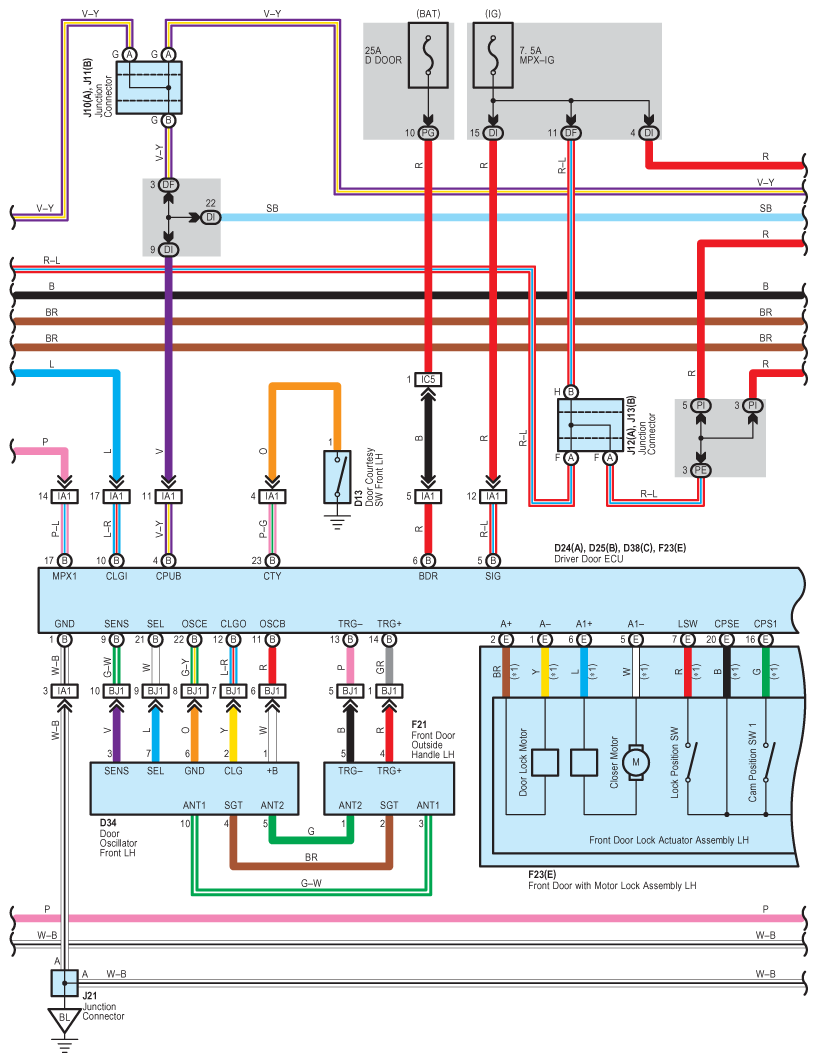

Fig 8: Smart Key System, Theft Deterrent And Key Reminder System Wiring Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Smart Key System, Theft Deterrent And Key Reminder System Wiring Diagram (9 Of 12)

Fig 10: Smart Key System, Theft Deterrent And Key Reminder System Wiring Diagram (10 Of 12)

Fig 11: Smart Key System, Theft Deterrent And Key Reminder System Wiring Diagram (11 Of 12)

Fig 12: Smart Key System, Theft Deterrent And Key Reminder System Wiring Diagram (12 Of 12)
