Intake Air Control System: Location

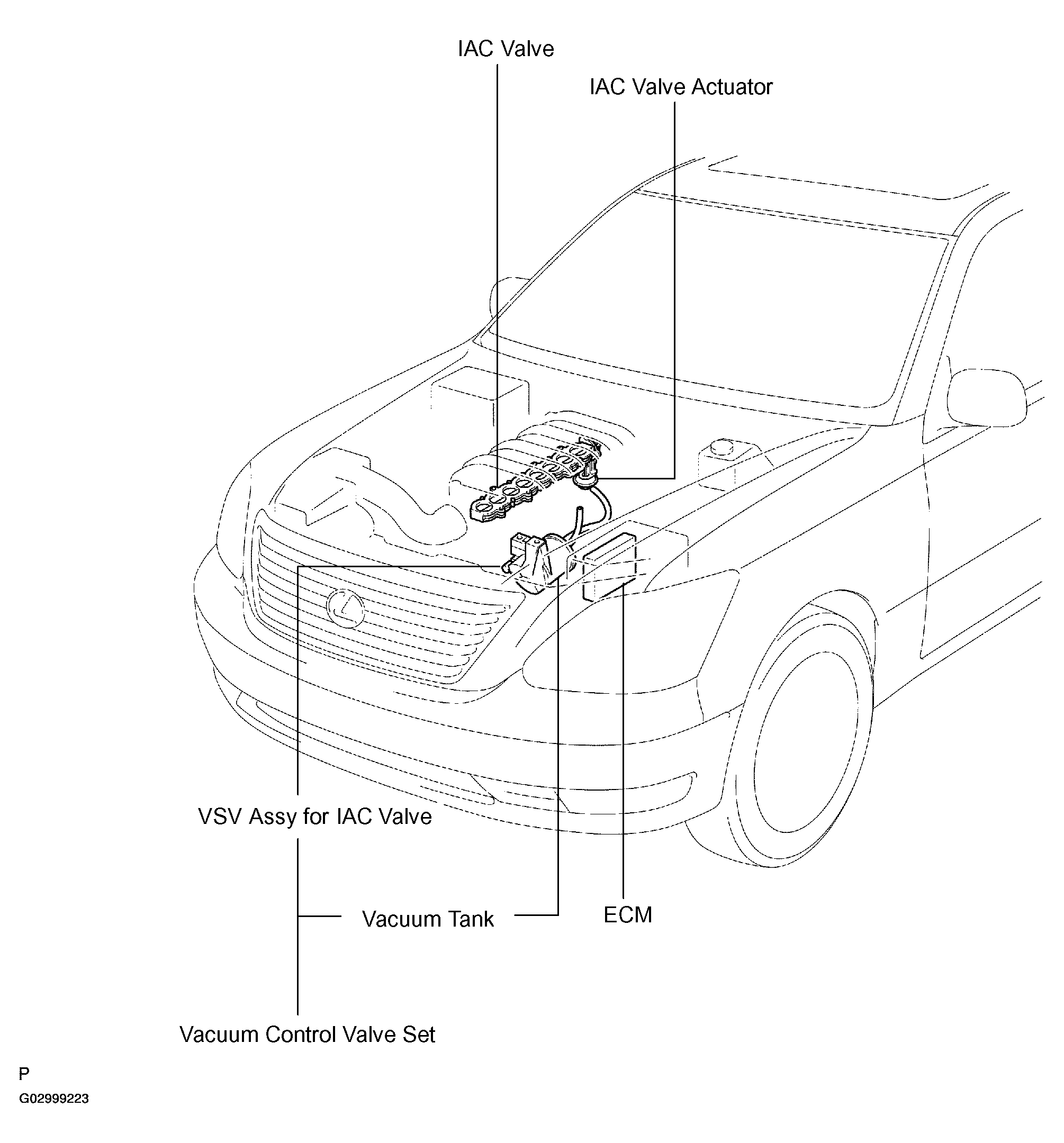

Fig 1: Identifying Intake Air Control System Components And Replacements Location
G02999223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
