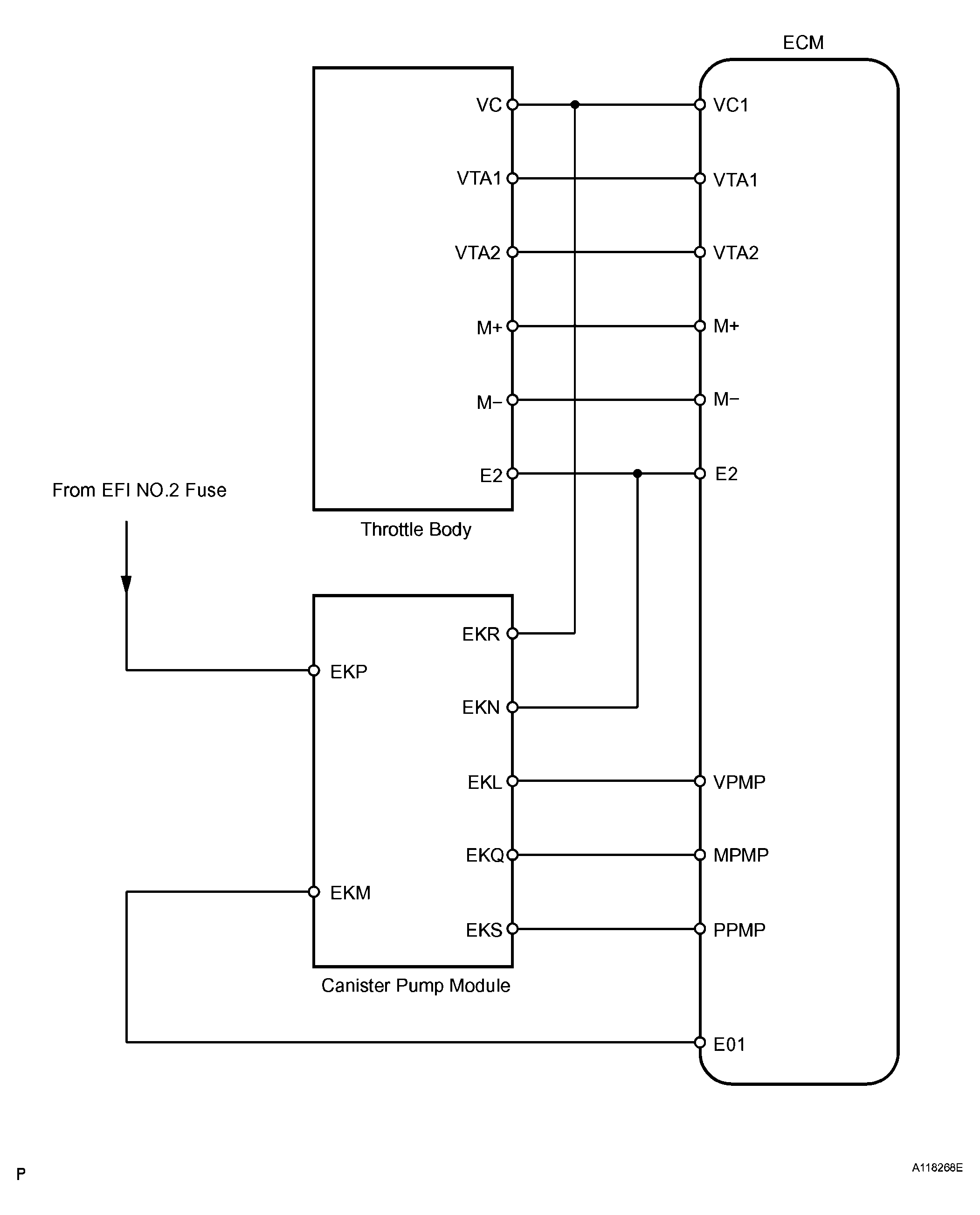

VC Output Circuit: Description
The VC voltage (5 V) is generated in the ECM. The voltage is used to supply power to the throttle position sensor, canister pump module, etc.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
