Disassembly and Reassembly
DISASSEMBLY1. REMOVE CONTROL KNOB (w/ Navigation System)

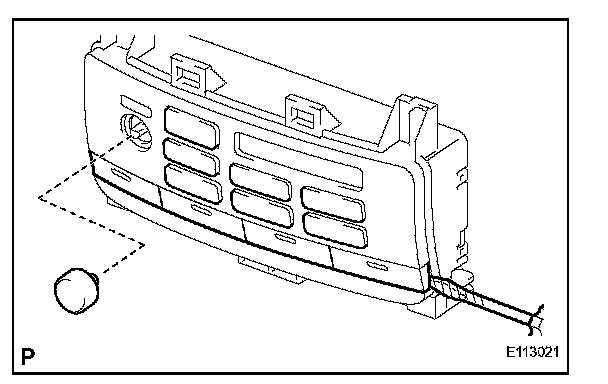

a. Using a screwdriver, pull out the knobs.
HINT: Tape the screwdriver tip before use.
2. REMOVE INTEGRATION CONTROL PANEL (w/ Navigation System)

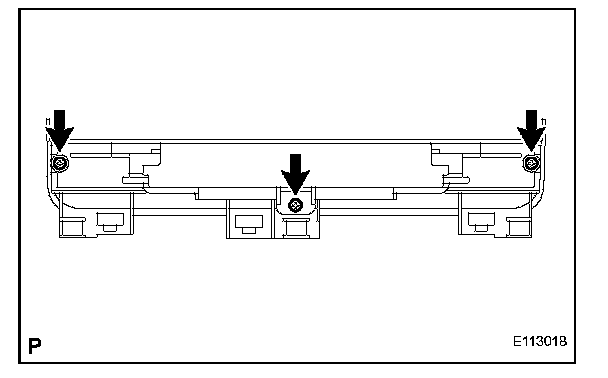

a. Remove the 3 screws.

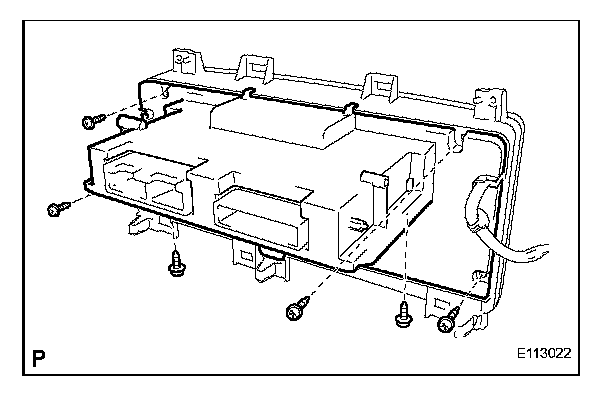

b. Remove the screw and board.
3. REMOVE INTEGRATION CONTROL HOUSING (w/ Navigation System)
a. Disconnect the connector clamps.

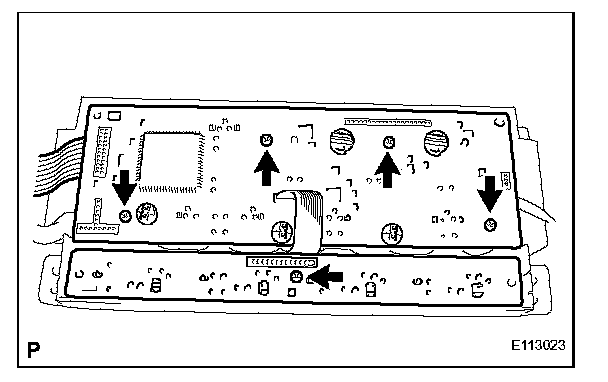

b. Remove the 2 screws and pull out the board from the integration control housing.
4. REMOVE HEATER CONTROL KNOB (w/o Navigation System)

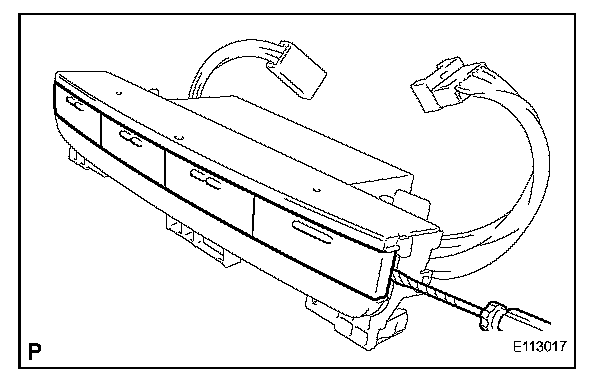

a. Using a screwdriver, pull out the knobs.
HINT: Tape the screwdriver tip before use.
5. REMOVE HEATER CONTROL PANEL (w/o Navigation System)

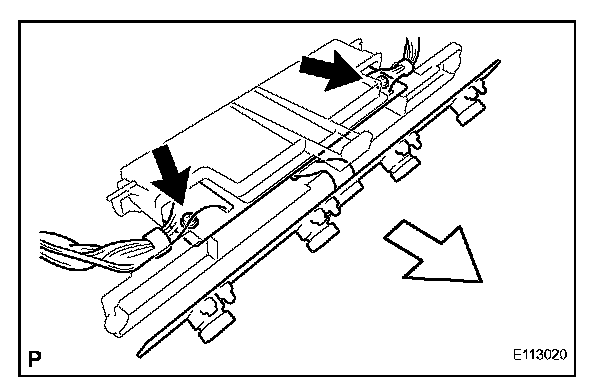

a. Remove the 6 screws and pull out the A/C amplifier.
6. REMOVE HEATER CONTROL HOUSING (w/o Navigation System)

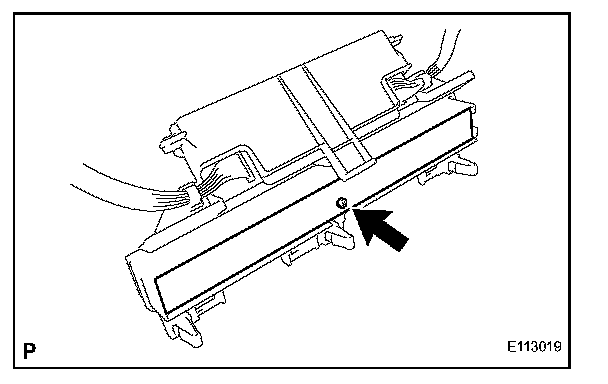

a. Remove the 5 screws and board from the heater control housing.
REASSEMBLY
Reassembly is in the reverse order of disassembly.
