Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Position Sensor:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

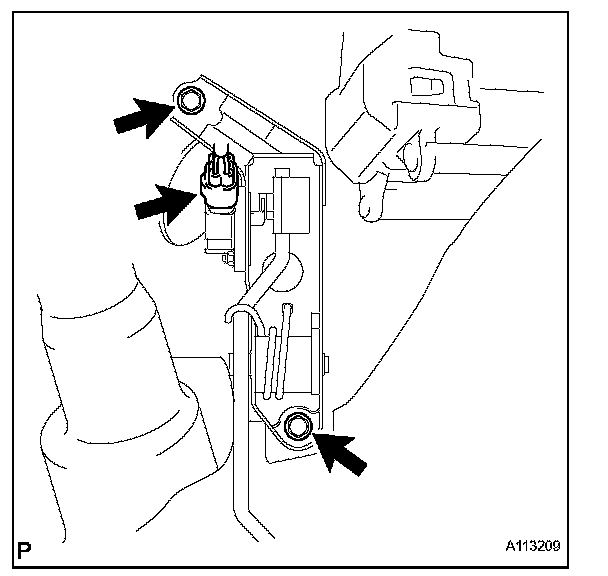

2. REMOVE ACCELERATOR PEDAL

a. Disconnect the accelerator pedal position sensor connector.




b. Remove the 2 bolts and accelerator pedal.

NOTE:
- Do not drop or strike the accelerator pedal.
- Do not disassemble the accelerator pedal.

INSTALLATION

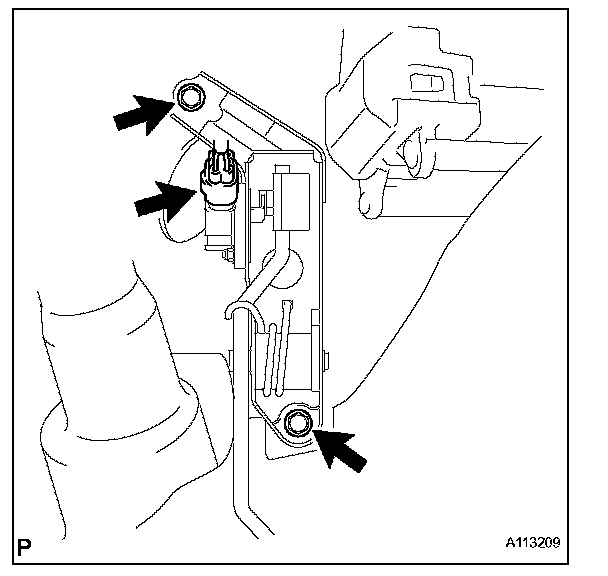

1. INSTALL ACCELERATOR PEDAL

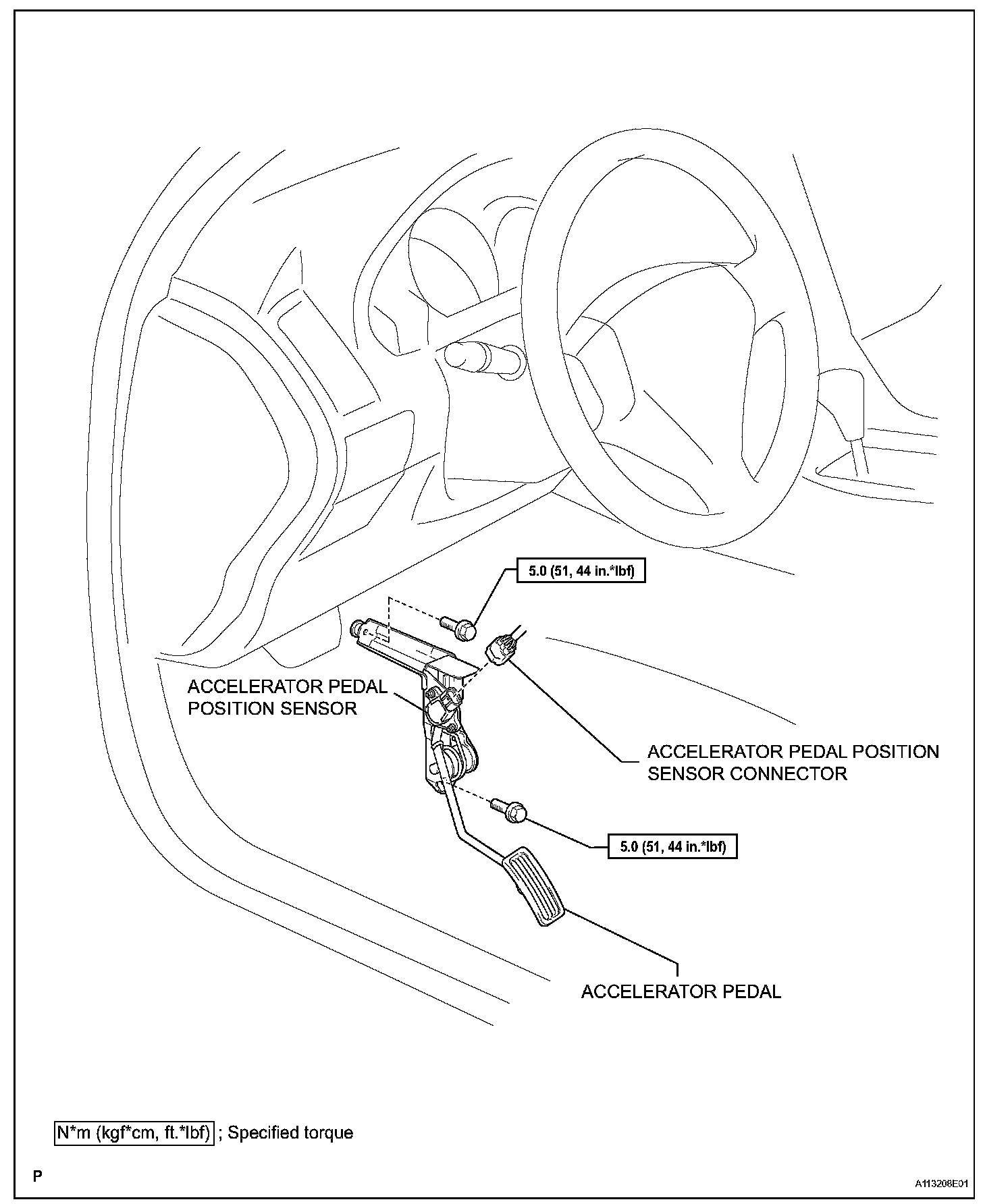

a. Install the accelerator pedal with the 2 bolts.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

b. Connect the accelerator pedal position sensor connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
