Actuator Check

  1. INPUT SIGNAL CHECK (USING INTELLIGENT TESTER)
    1. Connect the intelligent tester (with CAN VIM) to the DLC3.
    2. Check the cruise control main switch (MAIN, CANCEL, -/SET, +/RES).

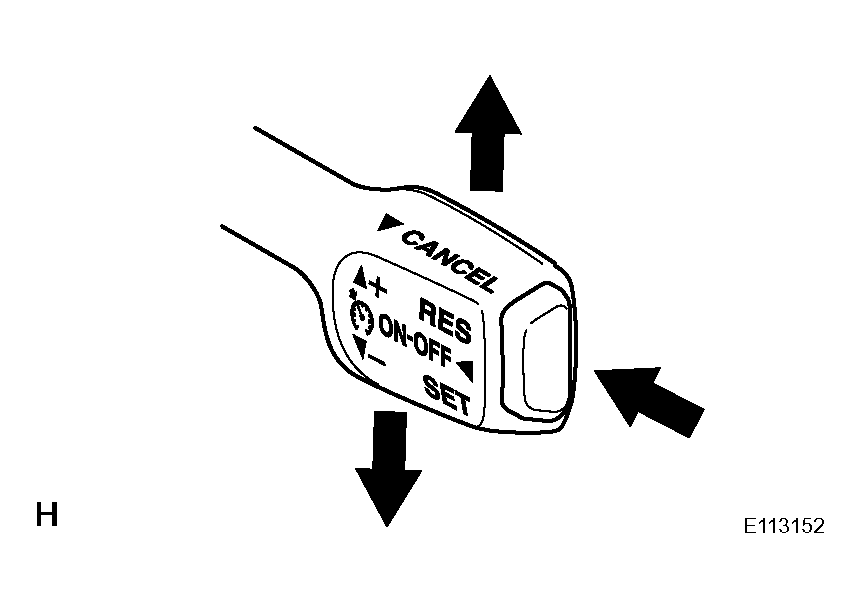

    Fig 1: Checking Cruise Control Main Switch
    G04064980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
