Road Test

  1. INSPECT SET SWITCH
    1. Push the main switch ON.
    2. Drive at a desired speed (40 km/h (25 mph) or higher).

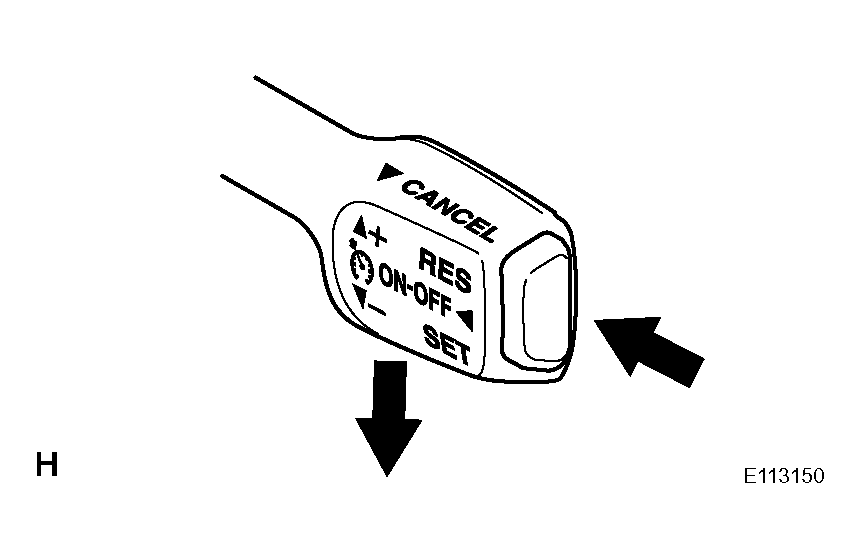

      3. Fig 1: Inspecting Set Switch
      G04064975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Press the control switch to the -/SET.
    4. After releasing the switch, check that the vehicle cruises at the desired speed.
  2. INSPECT "+" SWITCH
    1. Push the main switch button to ON.
    2. Drive at a desired speed (40 km/h (25 mph) or higher).
    3. Press the control switch to the -/SET.
    4. Check that the vehicle speed increases while the control switch is pulled up to +/RES, and that the vehicle cruises at the set speed when the switch is released.

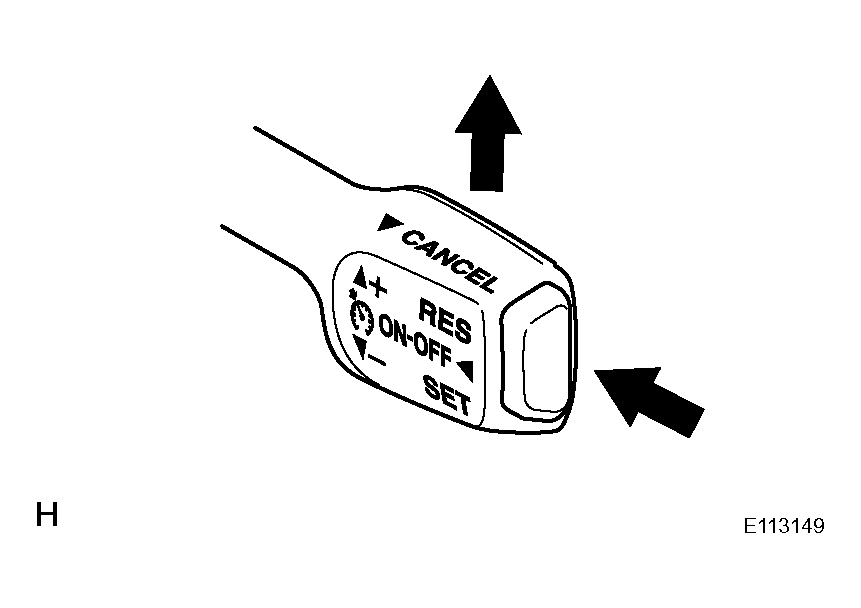

      Fig 2: Inspecting "+" Switch
      G04064976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Momentarily press the control switch upward to +/ RES and then immediately release it. Check that the vehicle speed increases by about 1.6 km/h (1 mph) (Tap-up function).
  3. INSPECT "-" SWITCH
    1. Push the main switch button to ON.
    2. Drive at a desired speed (40 km/h (25 mph) or higher).
    3. Press the control switch to the -/SET.
    4. Check that the vehicle speed decreases while the control switch is pushed down to -/SET, and the vehicle cruises at the set speed when the switch is released.
      Fig 3: Inspecting "-" Switch
      G04064977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Momentarily press the control switch downward to -/ SET, and then immediately release it. Check that the vehicle speed decreases by about 1.6 km/h (1 mph) (Tap-down function).
  4. INSPECT CANCEL SWITCH
    1. Push the main switch button to ON.
    2. Drive at a desired speed (40 km/h (25 mph) or higher).
    3. Press the control switch to the -/SET.
    4. When operating one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.

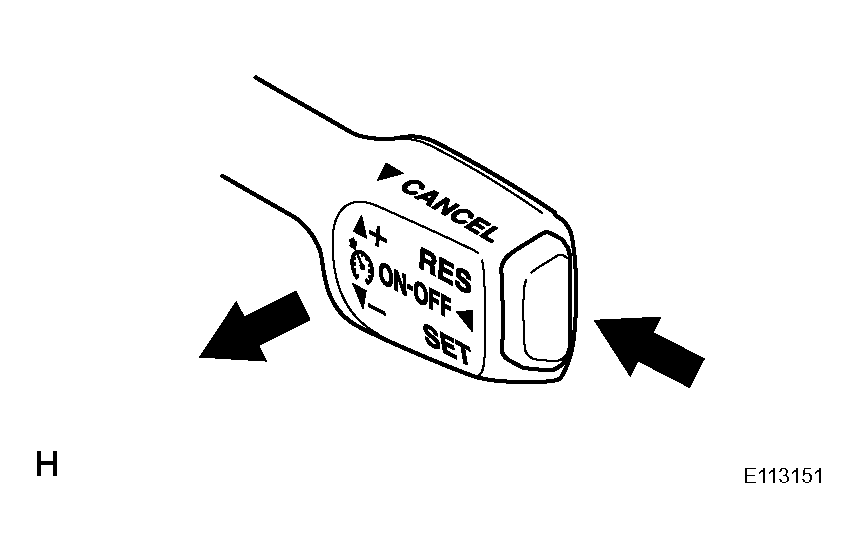

      5. Fig 4: Inspecting Cancel Switch
      G04064978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Depress the brake pedal
    • Shift to except D or 4 position
    • Push the main switch button to OFF
    • Push the cruise control switch to CANCEL
  5. INSPECT RES (RESUME) SWITCH
    1. Push the main switch button to ON.
    2. Drive at a desired speed (40 km/h (25 mph) or higher).
    3. Press the control switch to the -/SET.
    4. When operating one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.
      Fig 5: Inspecting RES (Resume) Switch
      G04064979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Depress the brake pedal
      • Shift to except D or 4 position
      • Push the cruise control switch to CANCEL
    5. After the control switch is pulled up to +/RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed before the cancellation.
