DTC Check / Clear

1. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.

   SST 09843-18040

2. Turn the ignition switch ON.

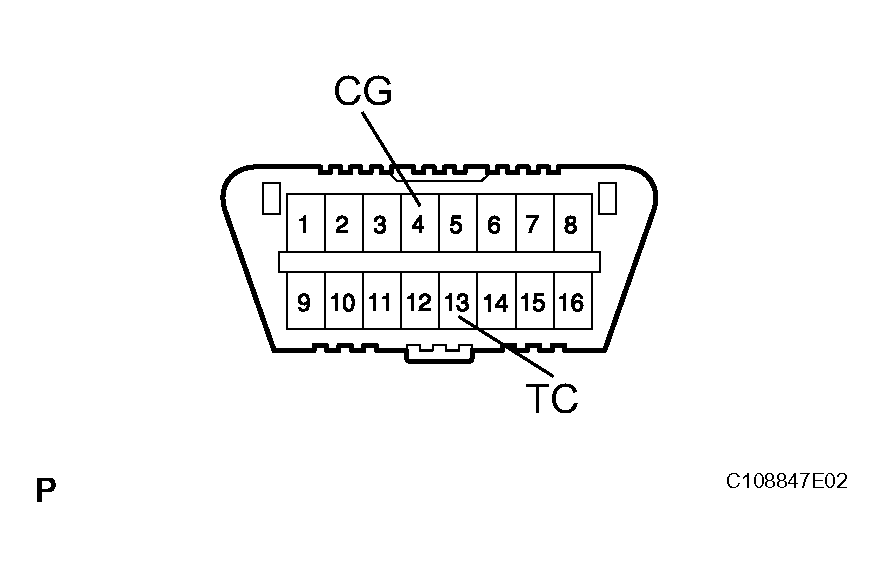

   Fig 1: Identifying Connector Terminals Of DLC3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Read the DTC from the ABS warning light and VSC TRAC warning light on the combination meter.

   HINT:

   • If no code appears, check the TC terminal circuit, ABS warning light circuit or VSC TRAC warning light circuit.
     TROUBLE AREA AND PROCEDURE REFERENCE



     Trouble Area	See procedure
     TC terminal circuit	TC and CG Terminal Circuit
     ABS warning light circuit	ABS WARNING LIGHT CIRCUIT
     VSC TRAC warning light circuit	VSC TRAC WARNING LIGHT CIRCUIT

   • If more than 1 DTC is detected at the same time, the DTCs will be displayed.

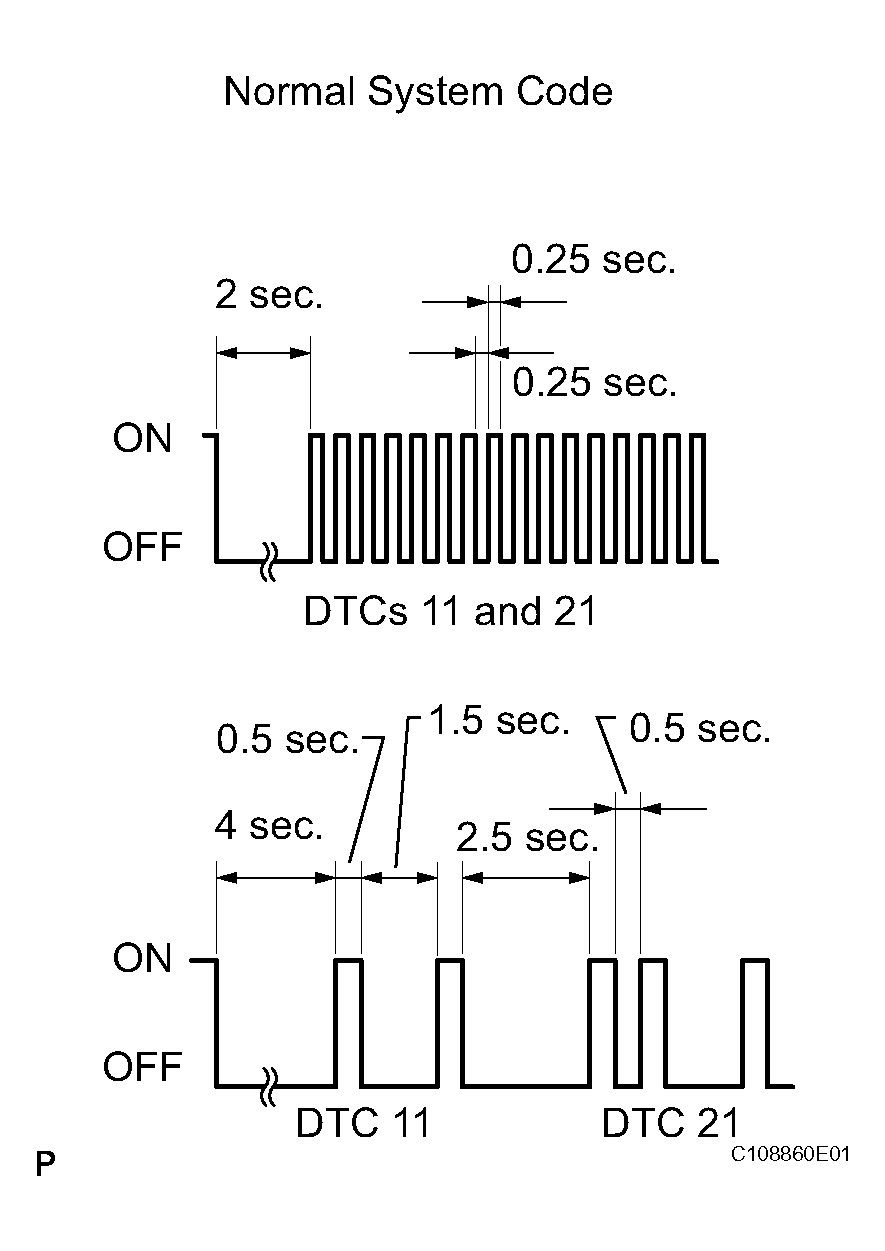

   • The blinking patterns for a normal system code and trouble codes 11 and 21 are shown in the illustration.
   • Codes are explained in the Diagnostic Trouble Code.
4. After completing the check, disconnect terminals 13 (TC) and 4 (CG) of the DLC3, and turn the ignition switch OFF.

Fig 2: Identifying Blinking Patterns

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Read the DTCs by following the prompts on the tester screen.

Fig 3: Connecting Intelligent Tester To DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to the intelligent tester operator's manual for further details.

1. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.

   SST 09843-18040

2. Turn the ignition switch ON.
   Fig 4: Identifying Connector Terminals Of DLC3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Clear the DTCs stored in ECU by depressing the brake pedal 8 times or more within 5 seconds.
4. Check that the warning light indicates the normal system code.
5. Remove SST from the terminals of the DLC3.

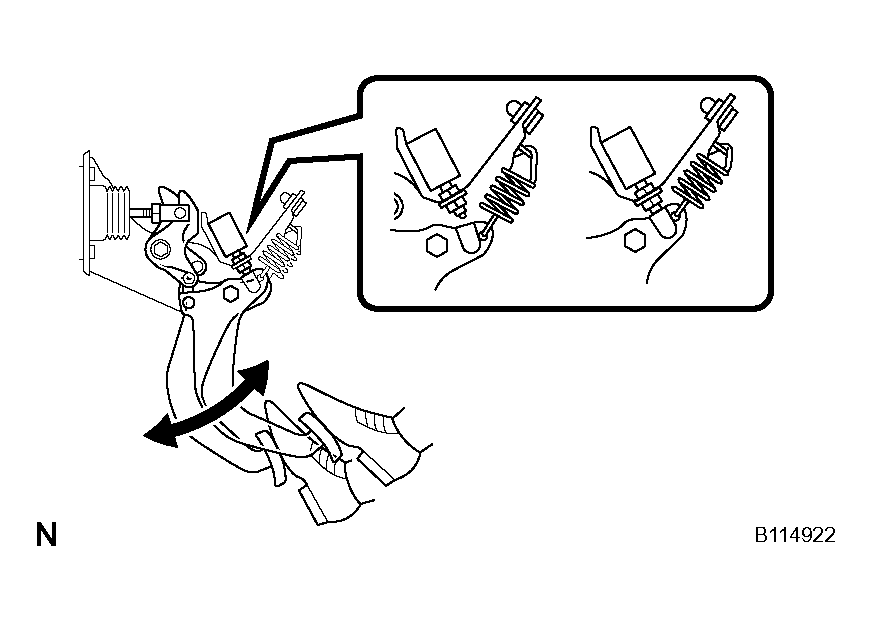

Fig 5: Pressing Brake Pedal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

DTCs cannot be cleared by removing the battery cable or ECU-IG fuse.

1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Operate the intelligent tester to clear the codes.

Fig 6: Connecting Intelligent Tester To DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to the intelligent tester operator's manual for further derails.

1. Turn the ignition switch ON.
2. Check that the ABS warning light and VSC TRAC warning light illuminate and then turn off in approximately 3 seconds.
