Steering Knuckle: Disassembly

REMOVE STEERING KNUCKLE ARM
1. Remove the 2 bolts and steering knuckle arm.
REMOVE STEERING KNUCKLE OIL SEAL
1. Using a screwdriver and hammer, tap out the oil seal.
REMOVE STEERING KNUCKLE BUSH
1. Using a brass bar and hammer, tap out the bearing and bushing.

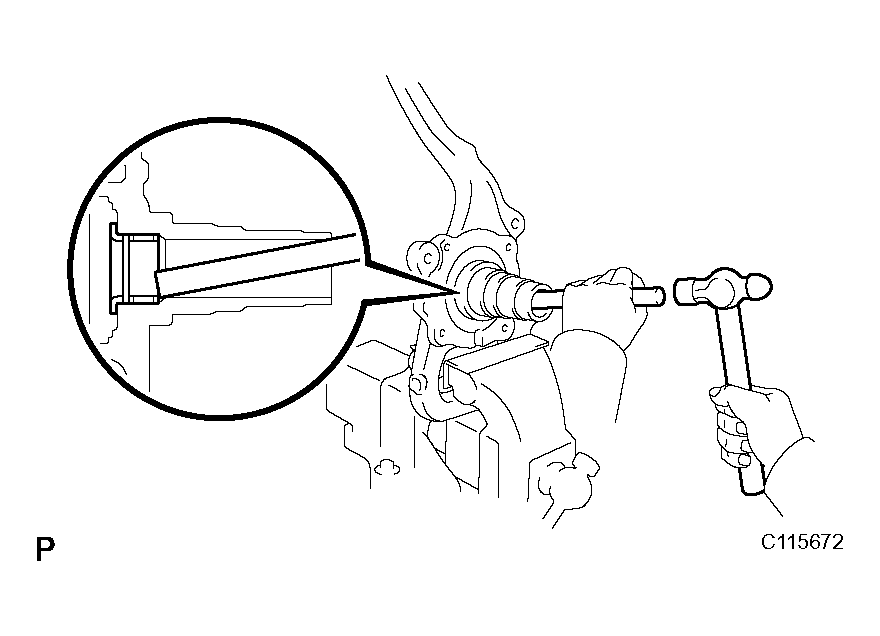

  Fig 1: Tapping Out Bearing And Bushing Using Brass Bar And Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
