Light Auto Turn Off System: Notes

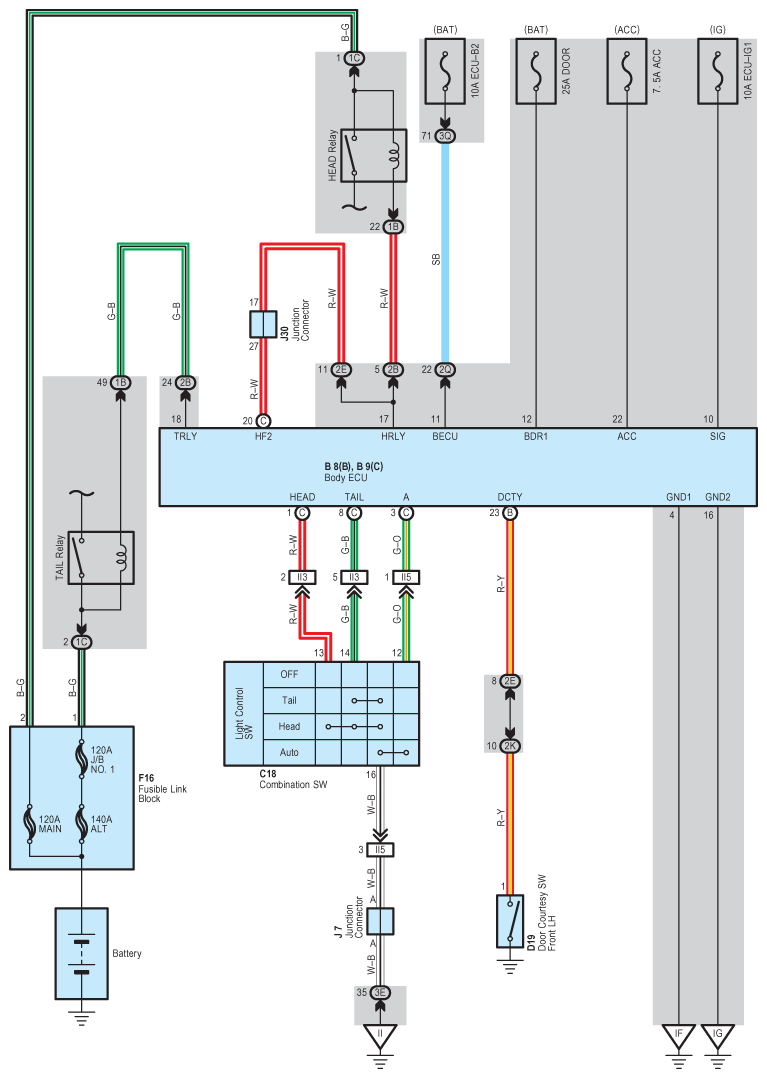

Fig 1: Light Auto Turn Off System - Circuit Diagram
G08928112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
