Accelerator Pedal Position Sensor: Installation

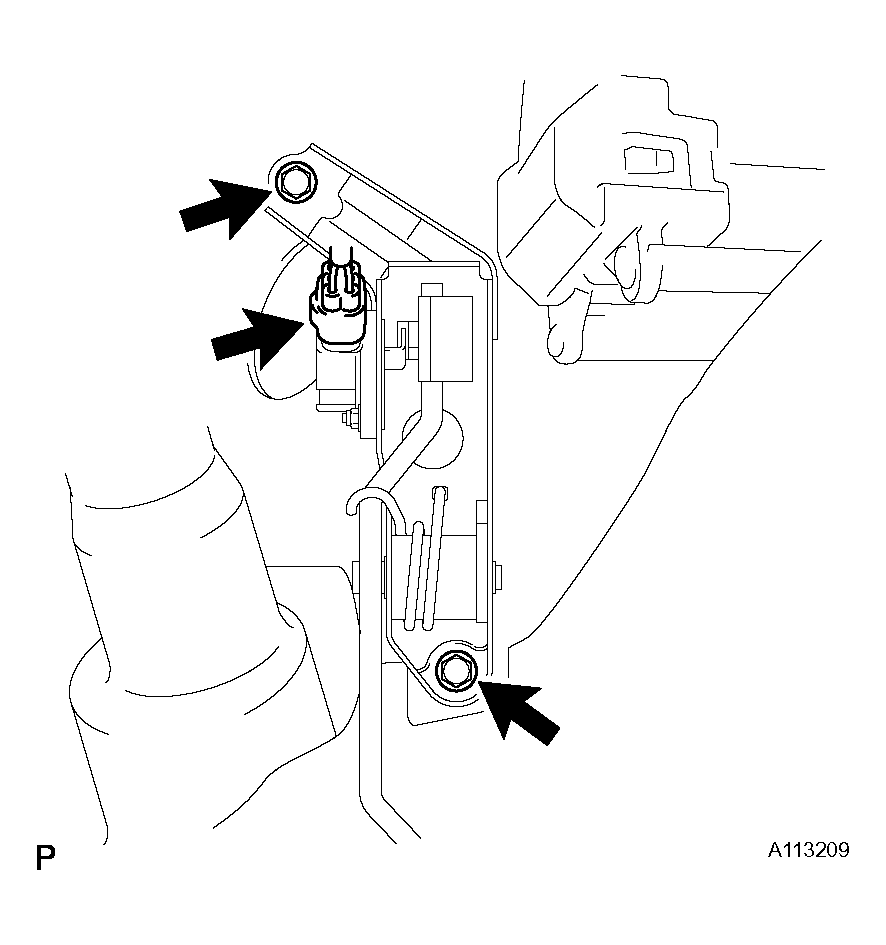

- INSTALL ACCELERATOR PEDAL
- Install the accelerator pedal with the 2 bolts.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
- Connect the accelerator pedal position sensor connector.
- Install the accelerator pedal with the 2 bolts.
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
