Camshaft Position Sensor: Components

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
G04061649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

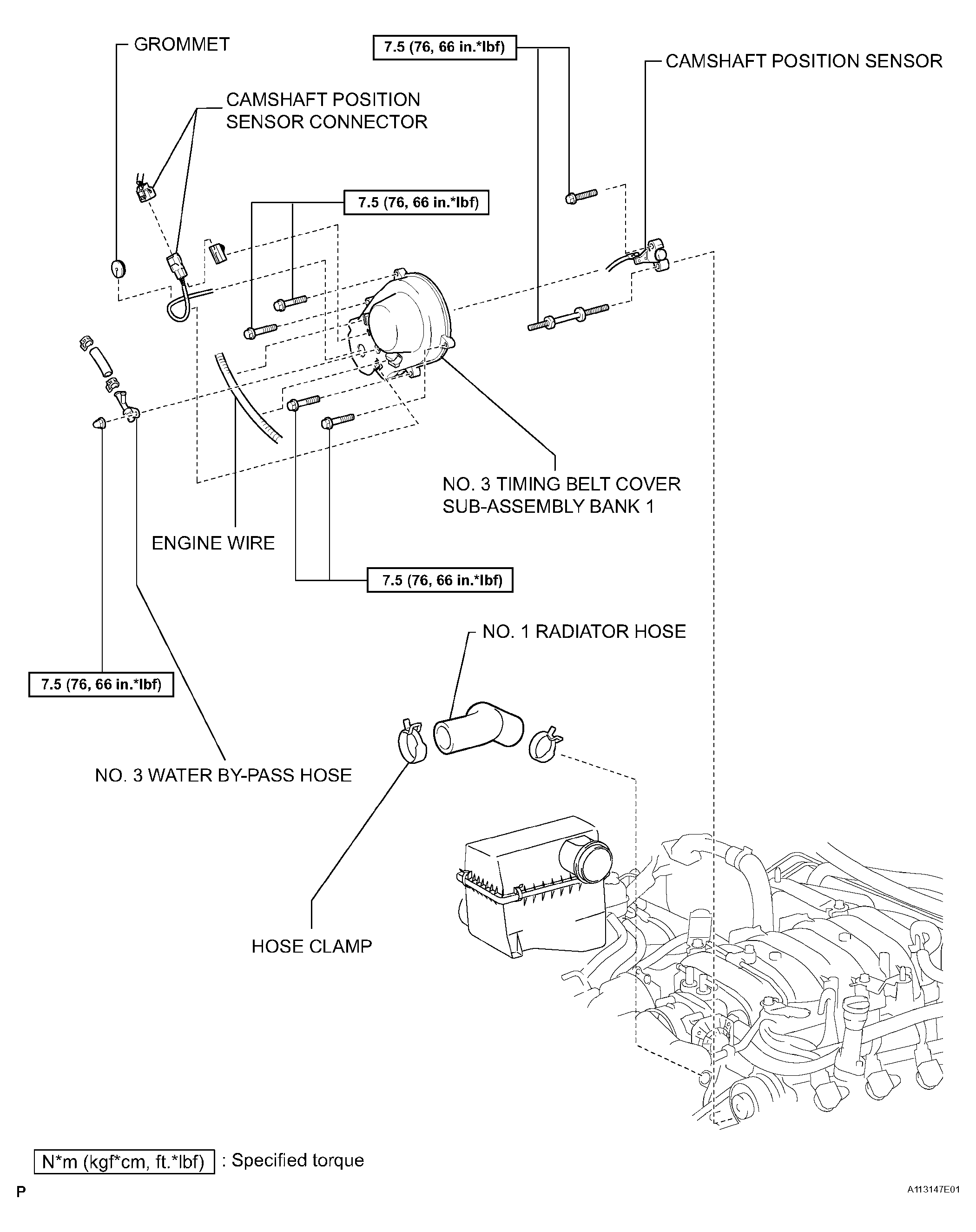

Fig 2: Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
G04061650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
