ECM Power Source Circuit: Wiring Diagram

Fig 1: Identifying ECM Power Source Circuit Wiring Diagram
G04061604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. CHECK ECM (+B VOLTAGE)
    1. Turn the ignition switch ON.
    2. Measure the voltage of the ECM connectors.

    Standard voltage

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    E10-1 (+B) - E6-1 (E1) 9 to 14 V

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE

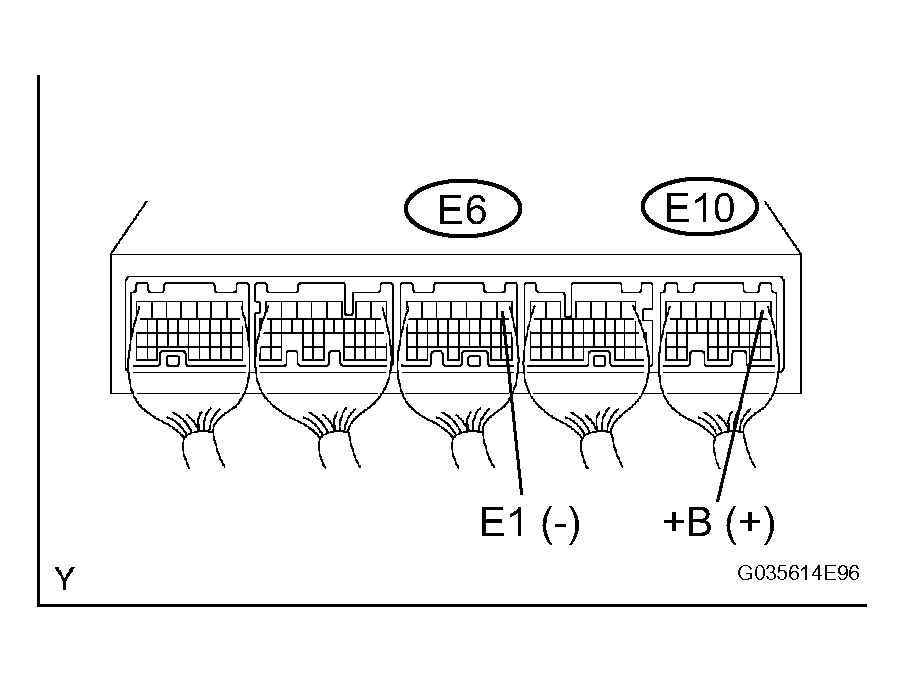

    Fig 2: Measuring Voltage Of ECM Connectors
    G04061605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go To Next Step

    OK: Go To Next Step

  2. CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
    1. Disconnect the E6 ECM connector.
    2. Measure the resistance of the wire harness side connector.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    E6-1 (E1) - Body ground Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

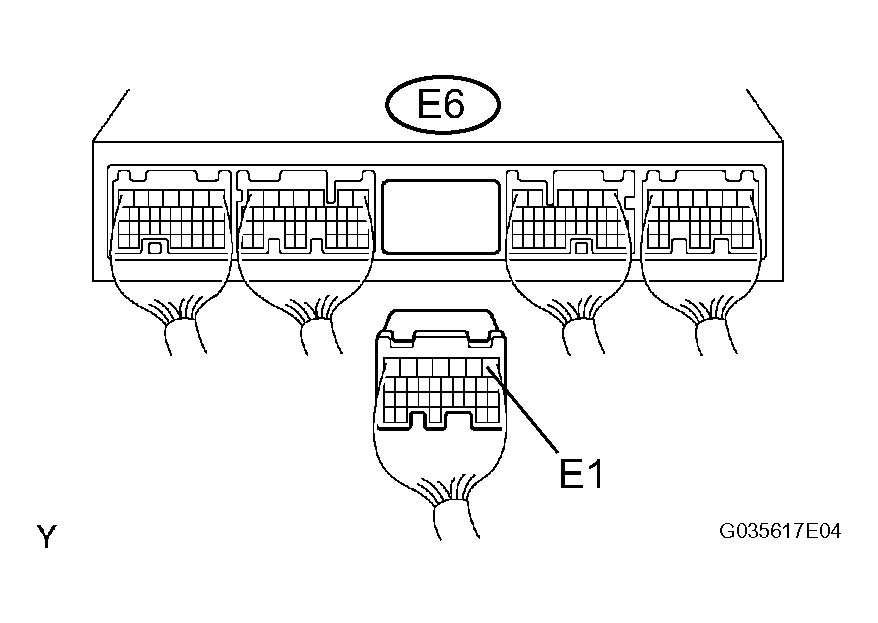

    Fig 3: Measuring Resistance Of Wire Harness Side Connector
    G04061606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CHECK ECM (IGSW VOLTAGE)
    1. Turn the ignition switch ON.
    2. Measure the voltage of the ECM connectors.

    Standard voltage

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    E10-9 (IGSW) - E6-1 (E1) 9 to 14 V

    NG: GO TO STEP   6

    Fig 4: Measuring Voltage Of ECM Connectors
    G04061607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step

  4. INSPECT FUSE (IGN)
    1. Remove the IGN fuse from the cowl side junction block RH.
    2. Measure the resistance of the IGN fuse.

    Standard resistance: Below 1 Ω

    NG: CHECK FOR SHORT IN ALL HARNESS AND COMPONENTS CONNECTED TO IGN FUSE, AND REPLACE IGN FUSE

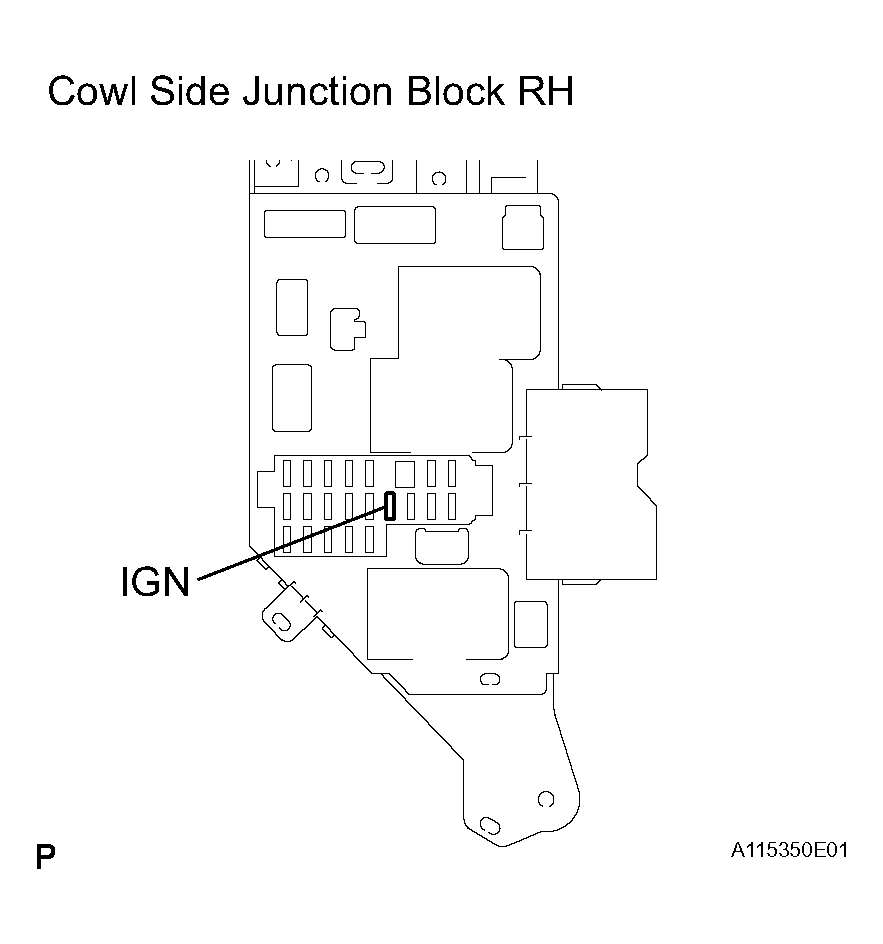

    Fig 5: Inspecting Fuse (IGN)
    G04061608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT IGNITION SWITCH ASSEMBLY
    1. Remove the I18 ignition switch connector.
    2. Measure the resistance of the ignition switch.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Switch position Tester Connection Specified Condition
    ON 6-7 Below 1 Ω
    START 6-7 Below 1 Ω

    NG: REPLACE IGNITION SWITCH ASSEMBLY

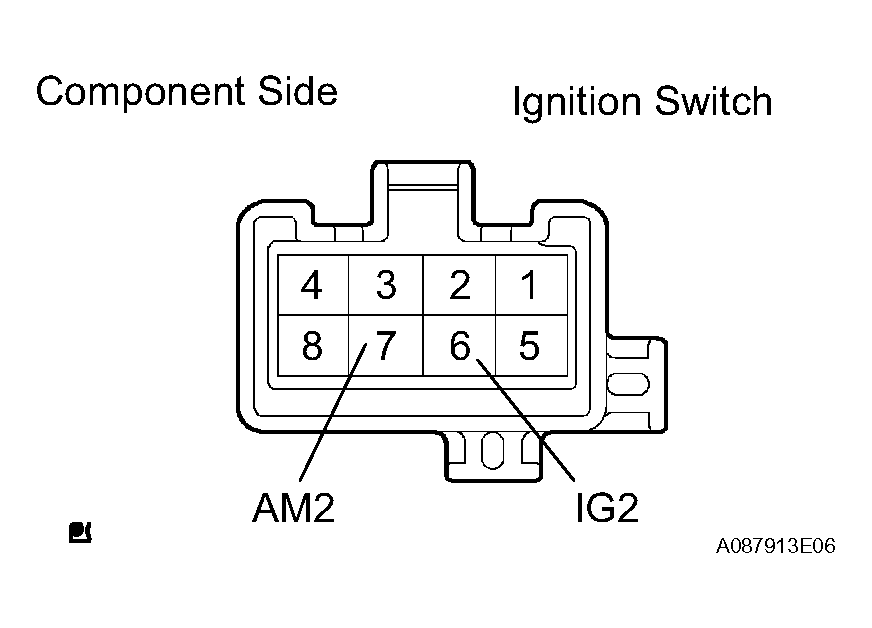

    Fig 6: Identifying I18 Ignition Switch Connector
    G04061609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - IGNITION SWITCH, IGNITION SWITCH - ECM)

  6. CHECK ECM (MREL VOLTAGE)
    1. Turn the ignition switch ON.
    2. Measure the voltage of the ECM connectors.

    Standard voltage

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    E10-8 (MREL) - E6-1 (E1) 9 to 14 V

    NG: REPLACE ECM

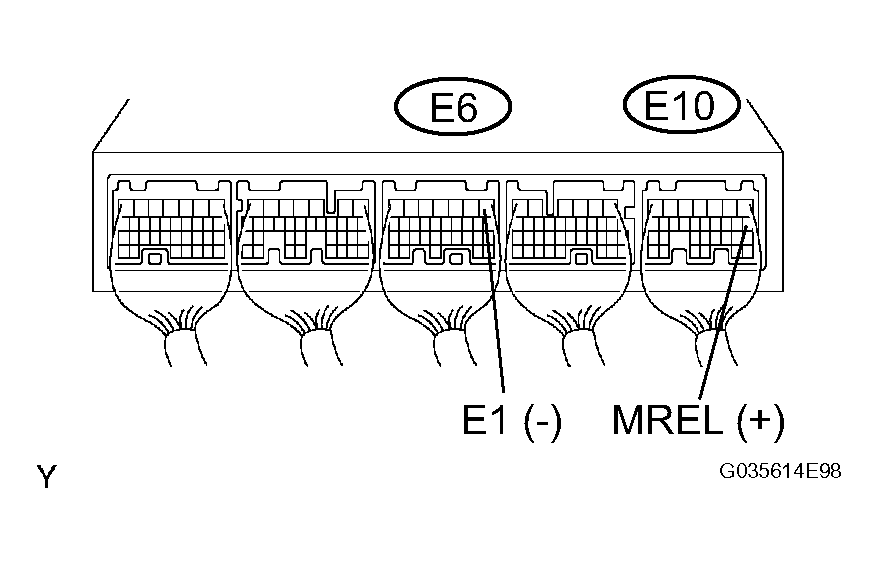

    Fig 7: Measuring Voltage Of ECM Connectors
    G04061610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go To Next Step

  7. INSPECT FUSE (EFI OR ECD NO. 1)
    1. Remove the EFI OR ECD NO. 1 fuse from the engine room junction block.
    2. Measure the resistance of the EFI OR ECD NO. 1 fuse.

    Standard resistance: Below 1 Ω

    NG: CHECK FOR SHORT IN ALL HARNESS AND COMPONENTS CONNECTED TO EFI OR ECD NO. 1 FUSE, AND REPLACE EFI OR ECD FUSE

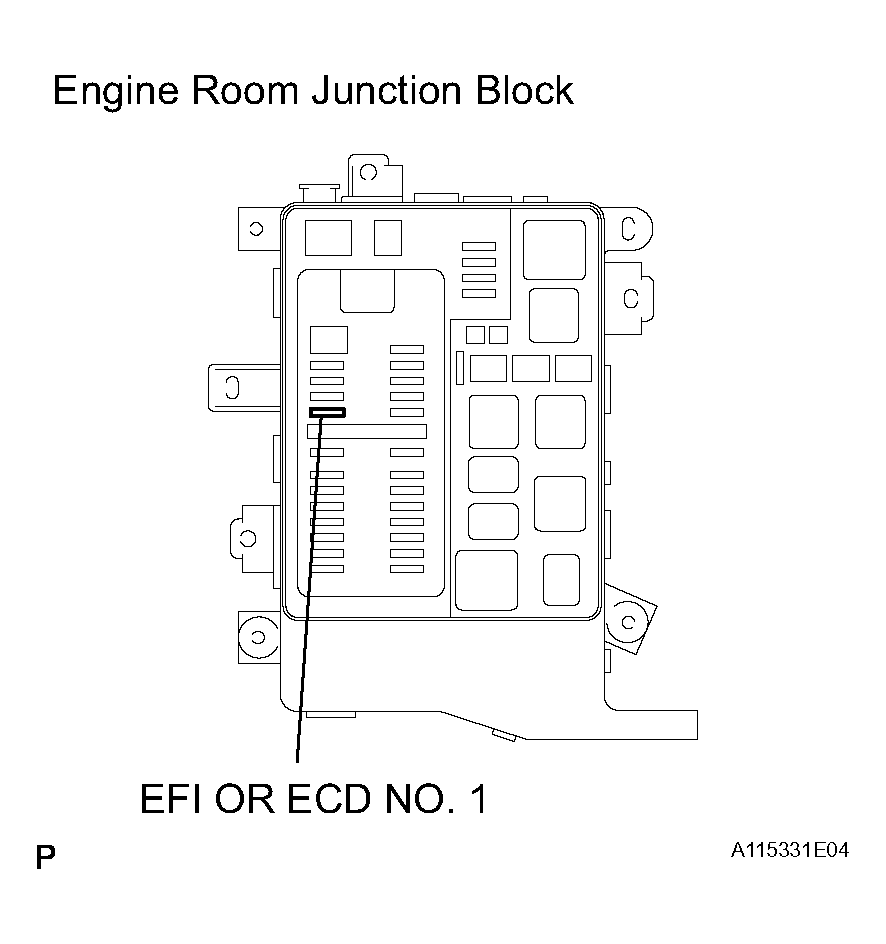

    Fig 8: Removing EFI Or ECD Fuse From Engine Room Junction Block
    G04061611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go To Next Step

  8. INSPECT EFI RELAY (Marking: EFI OR ECD)
    1. Remove the EFI relay from the engine room relay block.
    2. Measure the resistance of the EFI relay.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Terminal Connection Specified Condition
    1 - 3 10 kΩ or higher
    1 - 3 Below 1 Ω (when battery voltage is applied to terminals 2 and 4)

    NG: REPLACE EFI RELAY

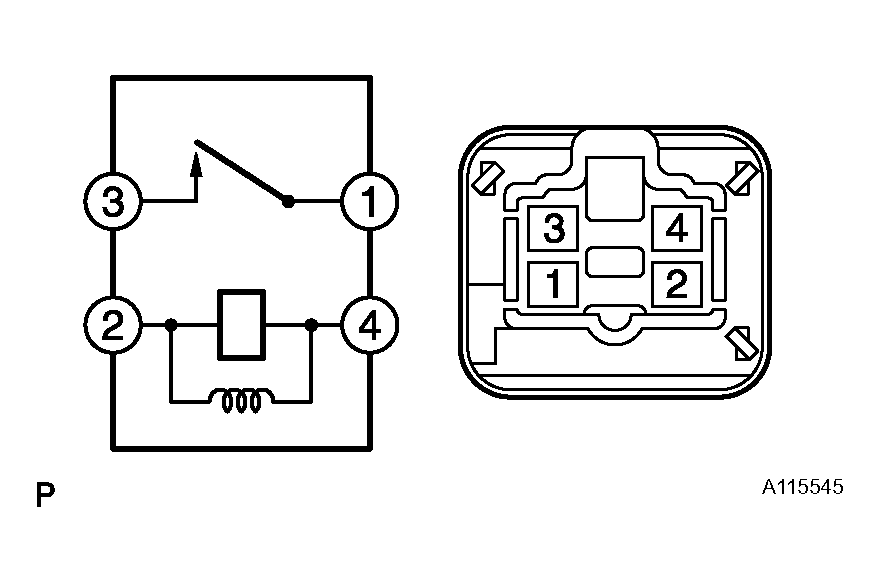

    Fig 9: Inspecting EFI Relay
    G04061612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go To Next Step

  9. CHECK HARNESS AND CONNECTOR (EFI RELAY - ECM, EFI RELAY - BODY GROUND)
    1. Check harness and connector (ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR

    NG: CHECK AND REPLACE HARNESS OR CONNECTOR (TERMINAL +B OF ECM - POSITIVE BATTERY TERMINAL)
