Engine Control System (2UZ-FE) - System And CIRUIT Testing, On-Vehicle Inspection, Removal, Inspection And Installation: ECM: Installation

INSTALL ECM ASSEMBLY
1. Install the ECM with the 3 screws.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
2. Connect the 5 ECM connectors.
NOTE: Be sure to securely connect the connectors.

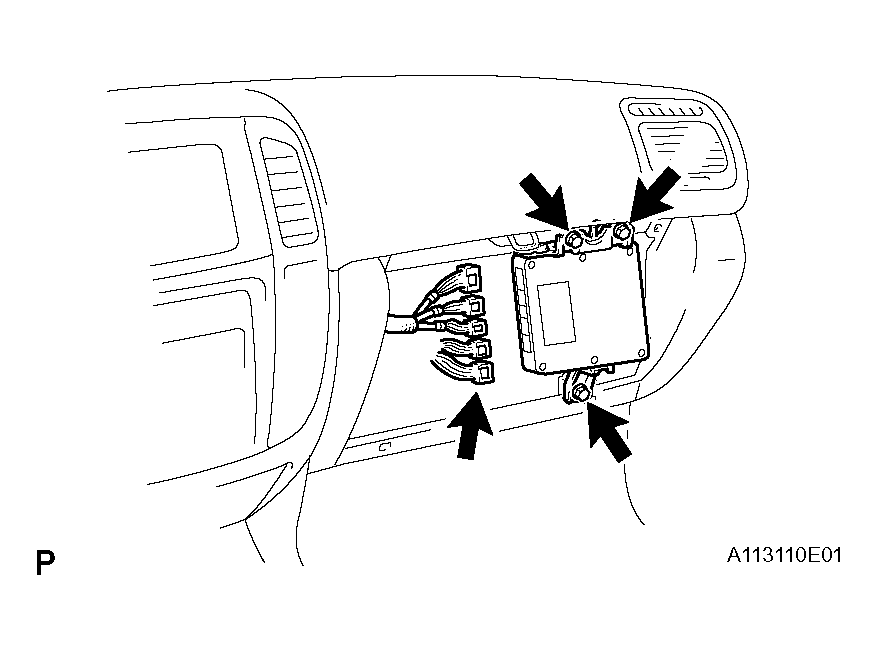

Fig 1: Identifying ECM Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 FINISH PANEL LOWER
1. Install the No. 2 finish panel lower with the 3 screws.

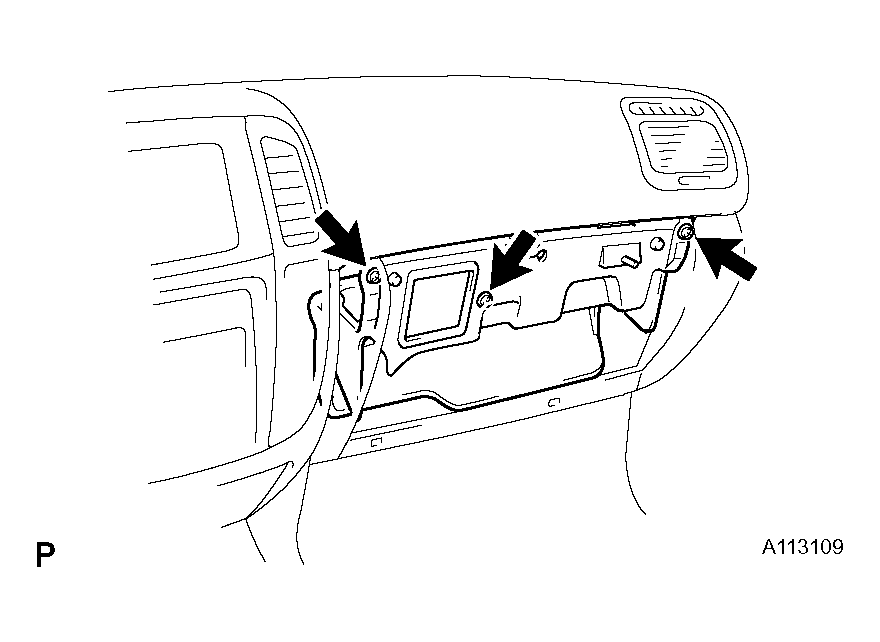

Fig 2: Identifying Finish Panel Lower
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GLOVE BOX COMPARTMENT DOOR
1. Install the glove compartment door with the 2 screws.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
Perform initialization (INITIALIZATION ).

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

Fig 3: Connecting Cable From Negative Battery Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
