Transfer Shift Lever Assembly: Components

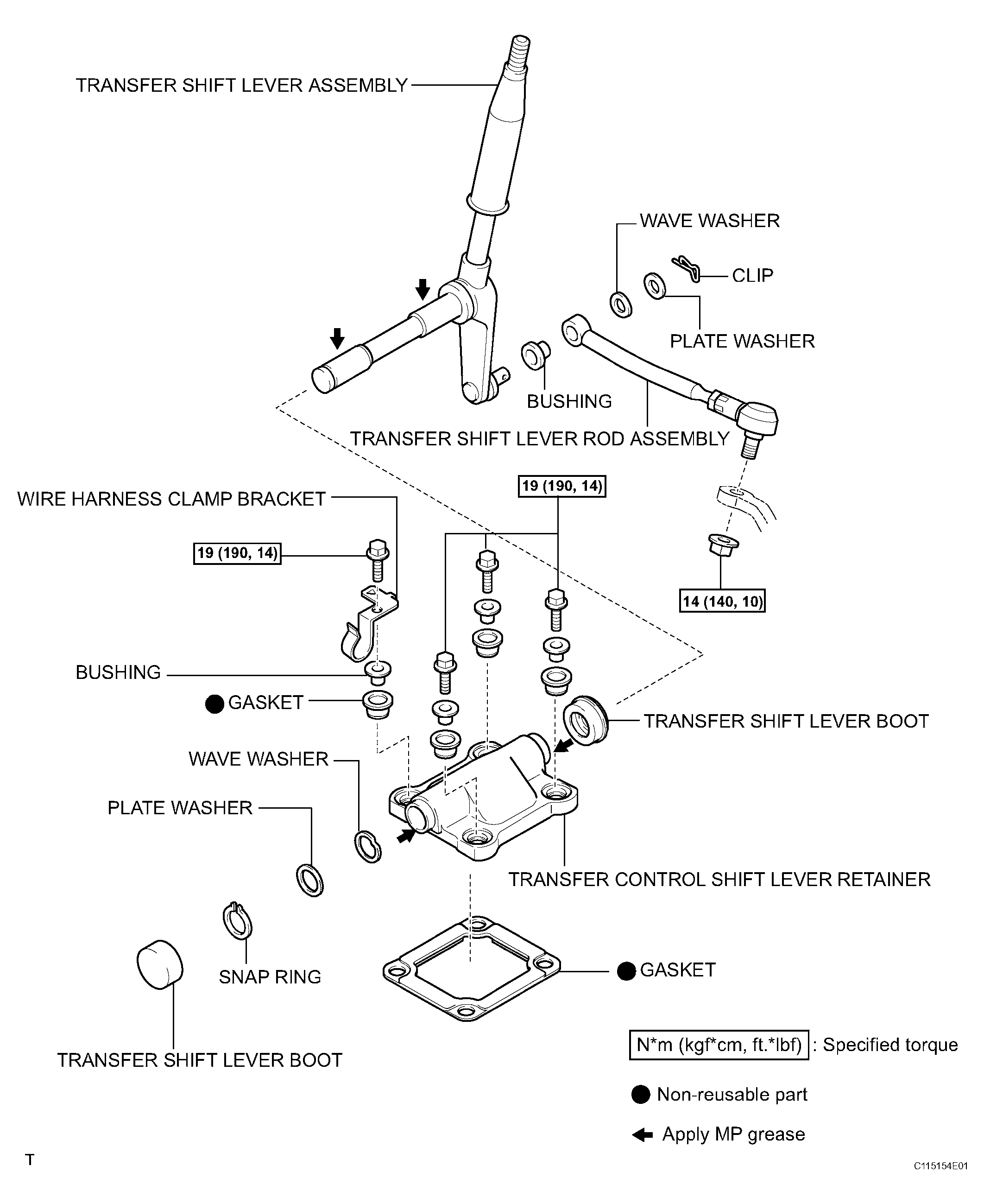

Fig 1: Transfer Shift Lever Assembly Replacement Components With Torque Specifications
G04063077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
