Seats

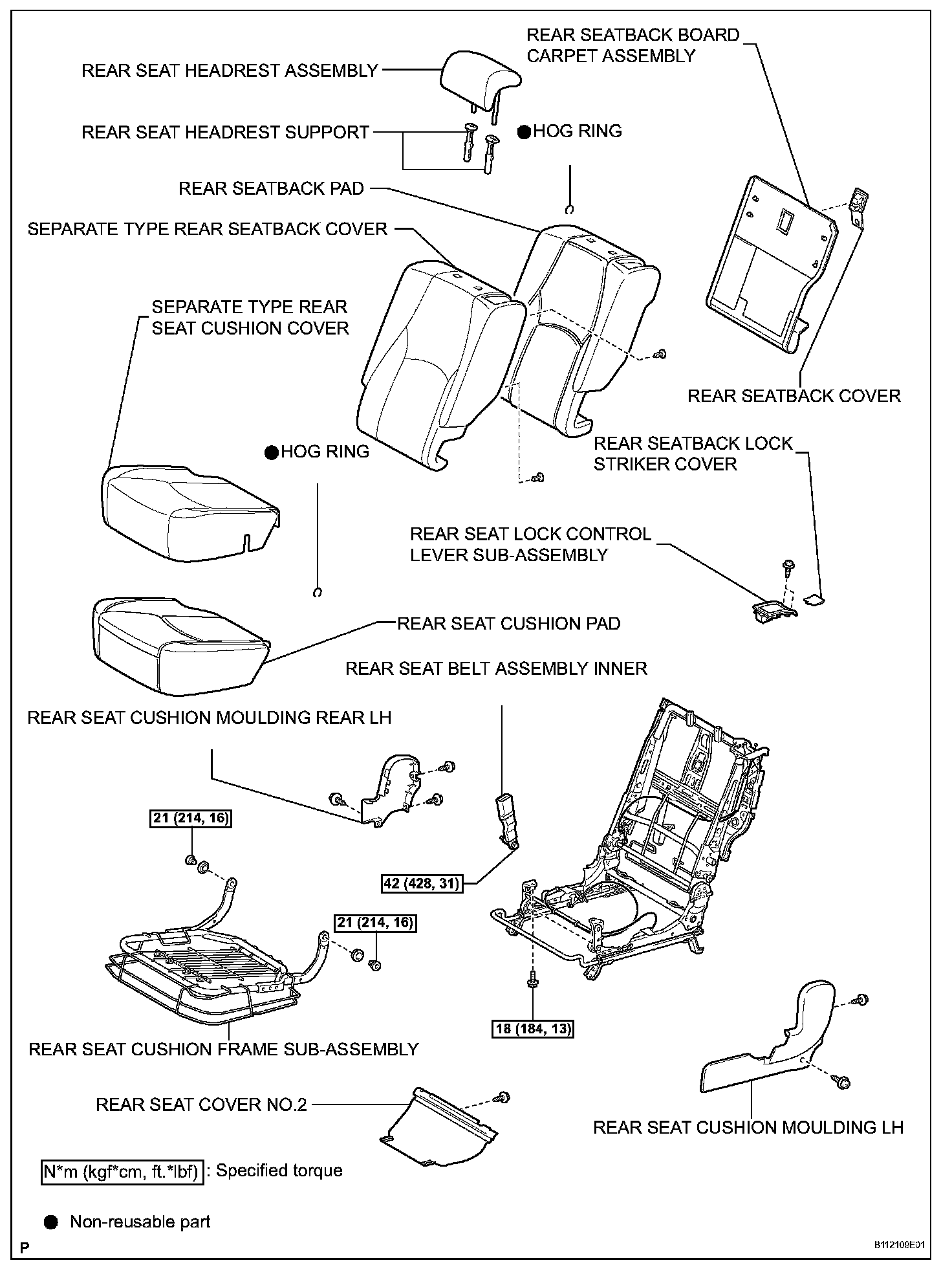

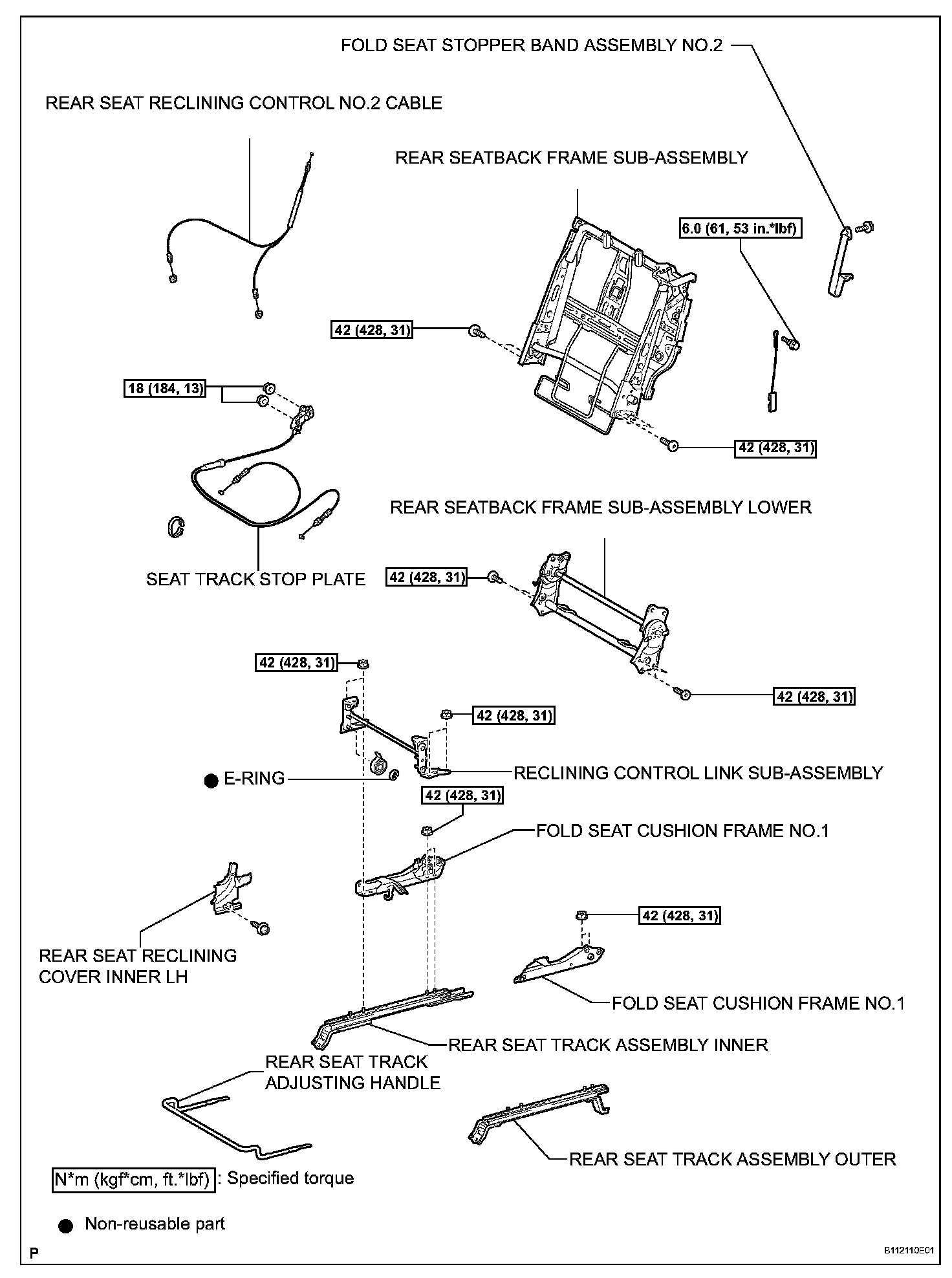

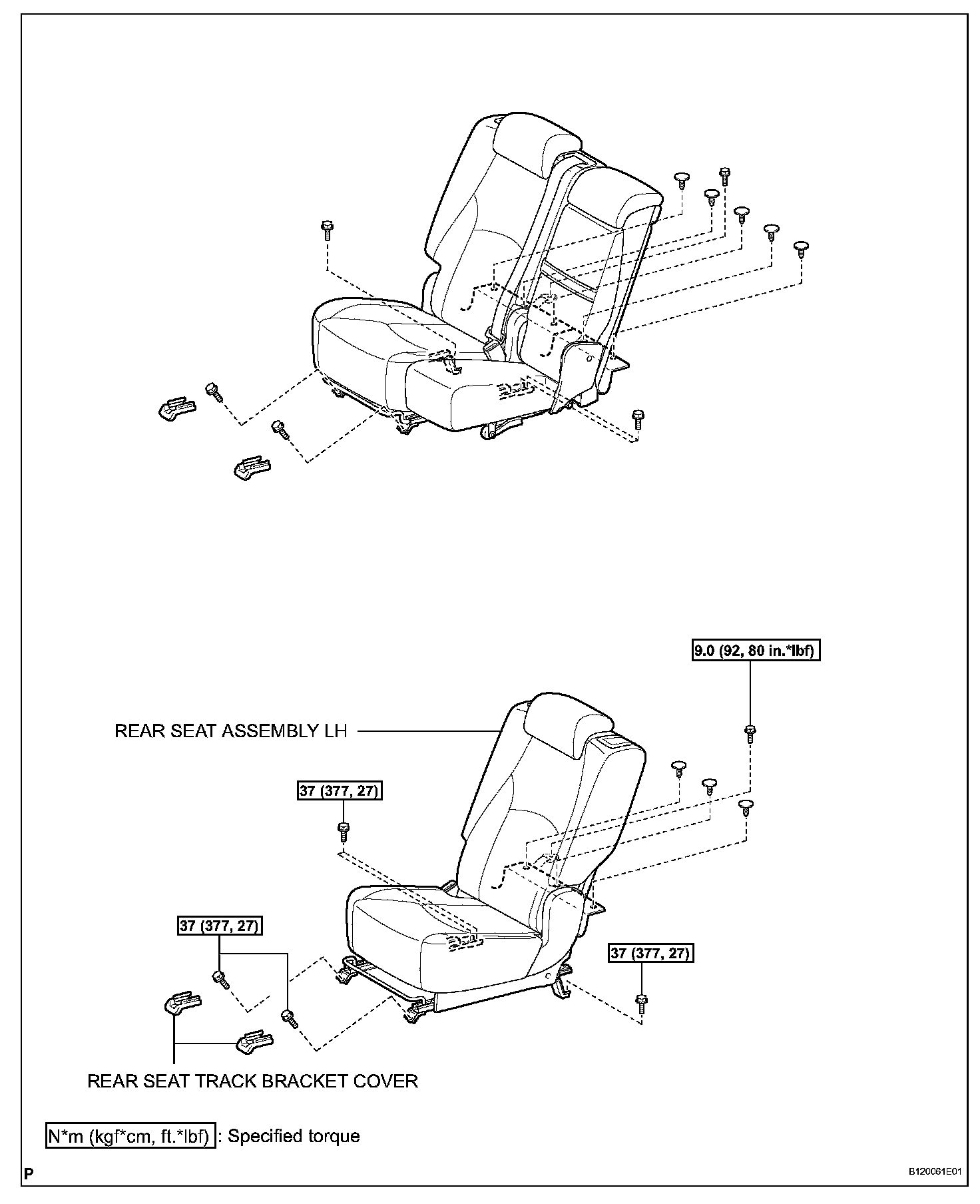

Rear Seat Assembly (for LH Side):



Rear Seat Assembly (for LH Side):



Rear Seat Assembly (for LH Side):

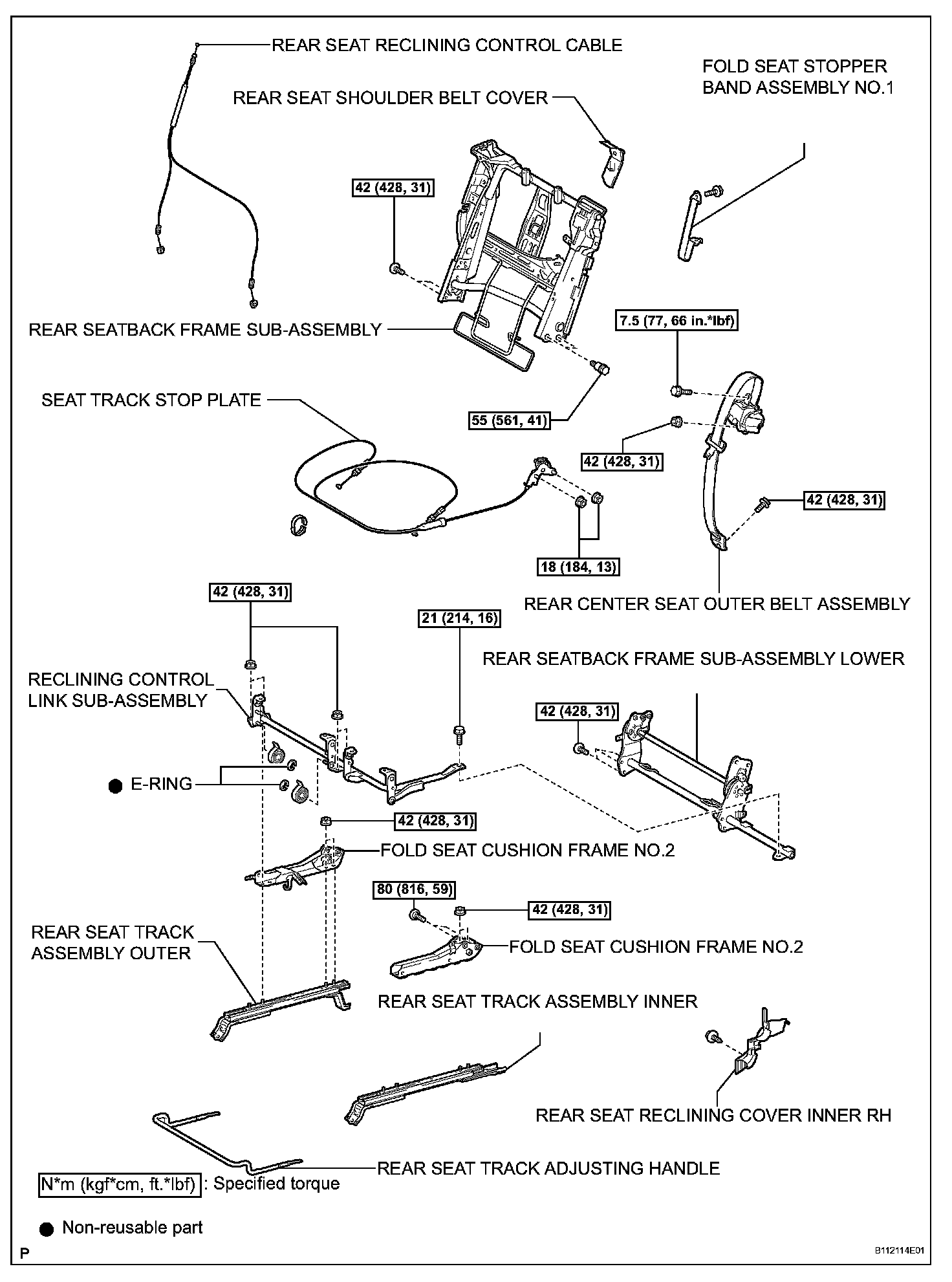

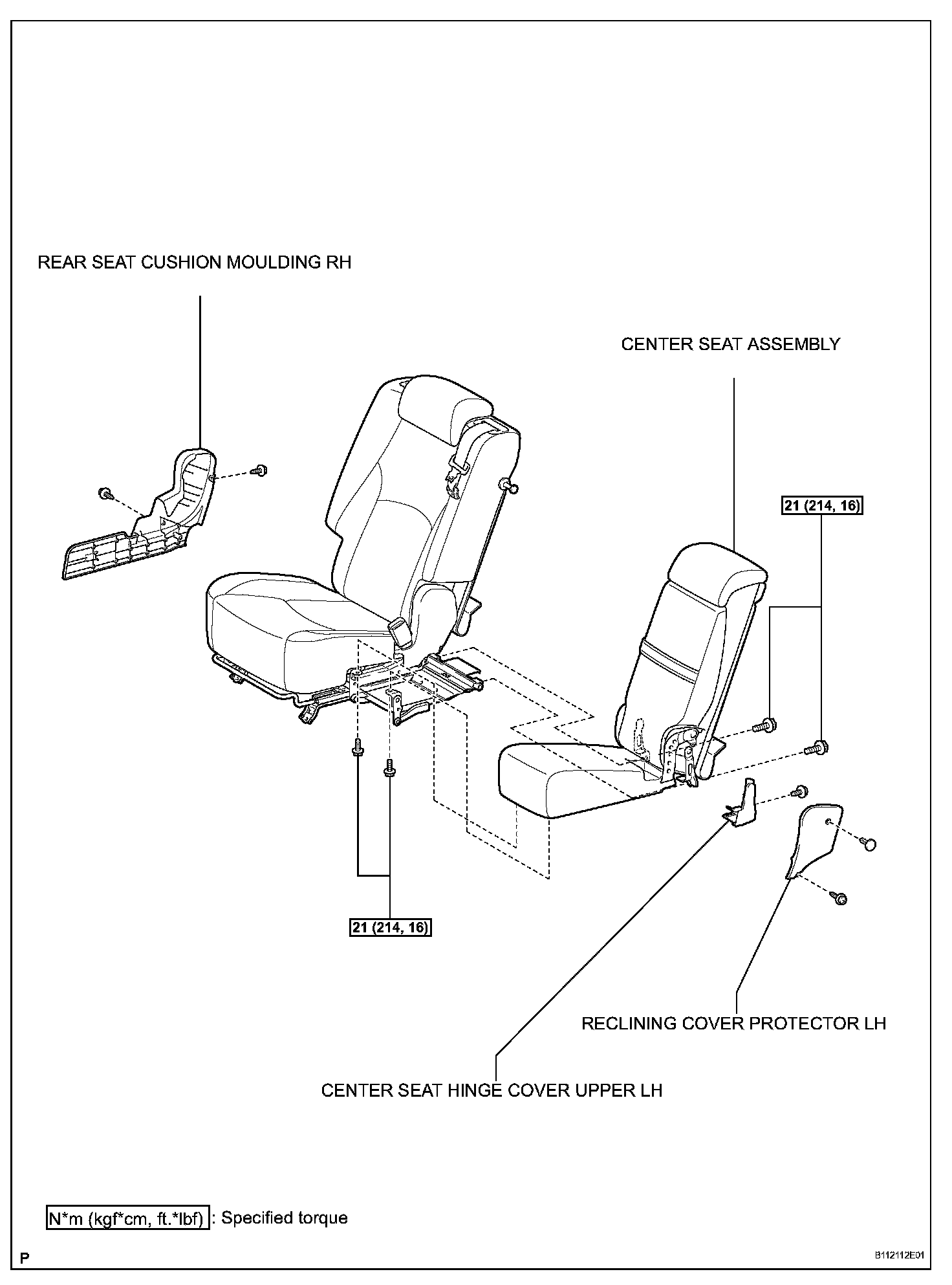

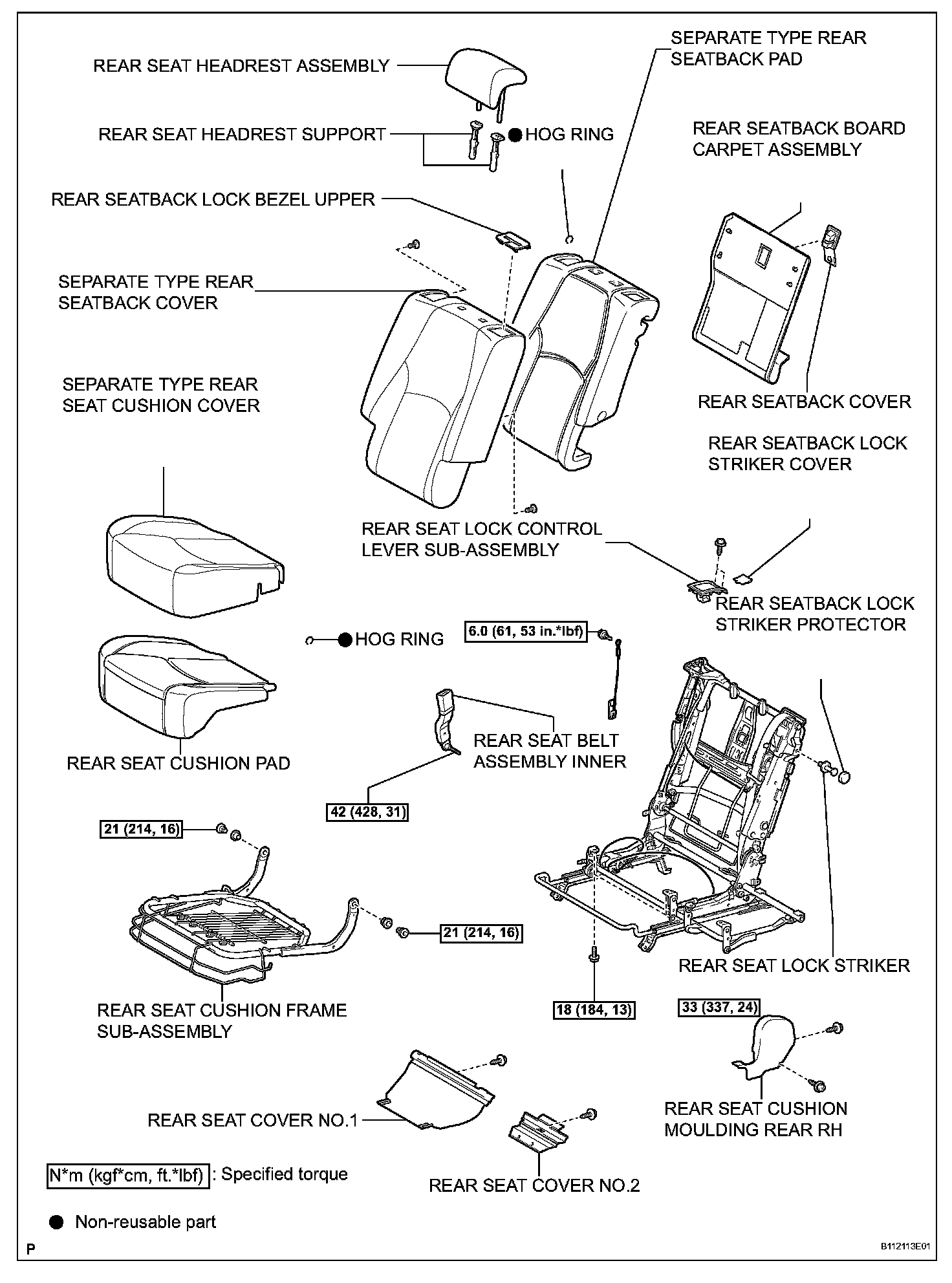

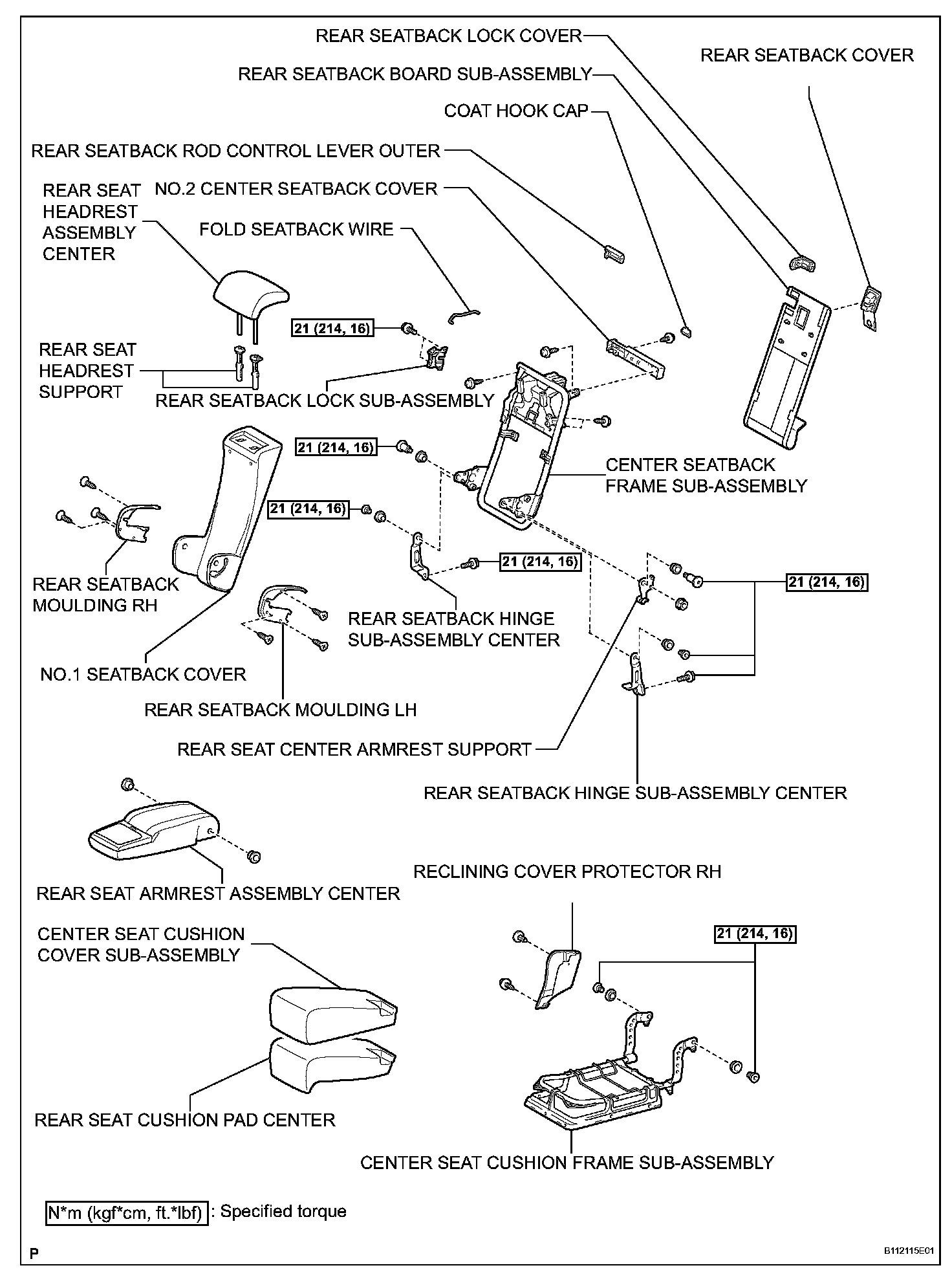

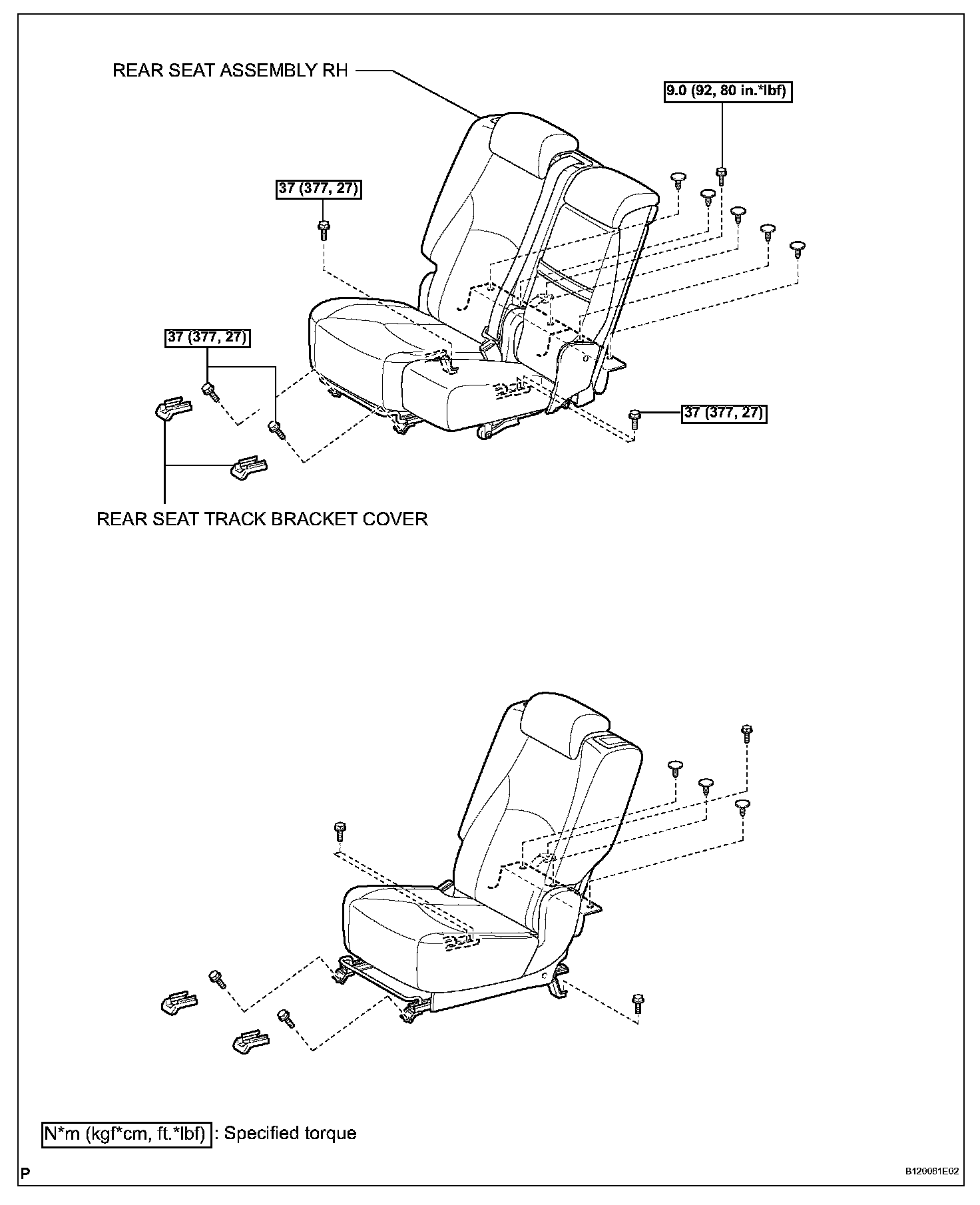

Rear Seat Assembly (for RH Side):



Rear Seat Assembly (for RH Side):



Rear Seat Assembly (for RH Side):



Rear Seat Assembly (for RH Side):



Rear Seat Assembly (for RH Side):

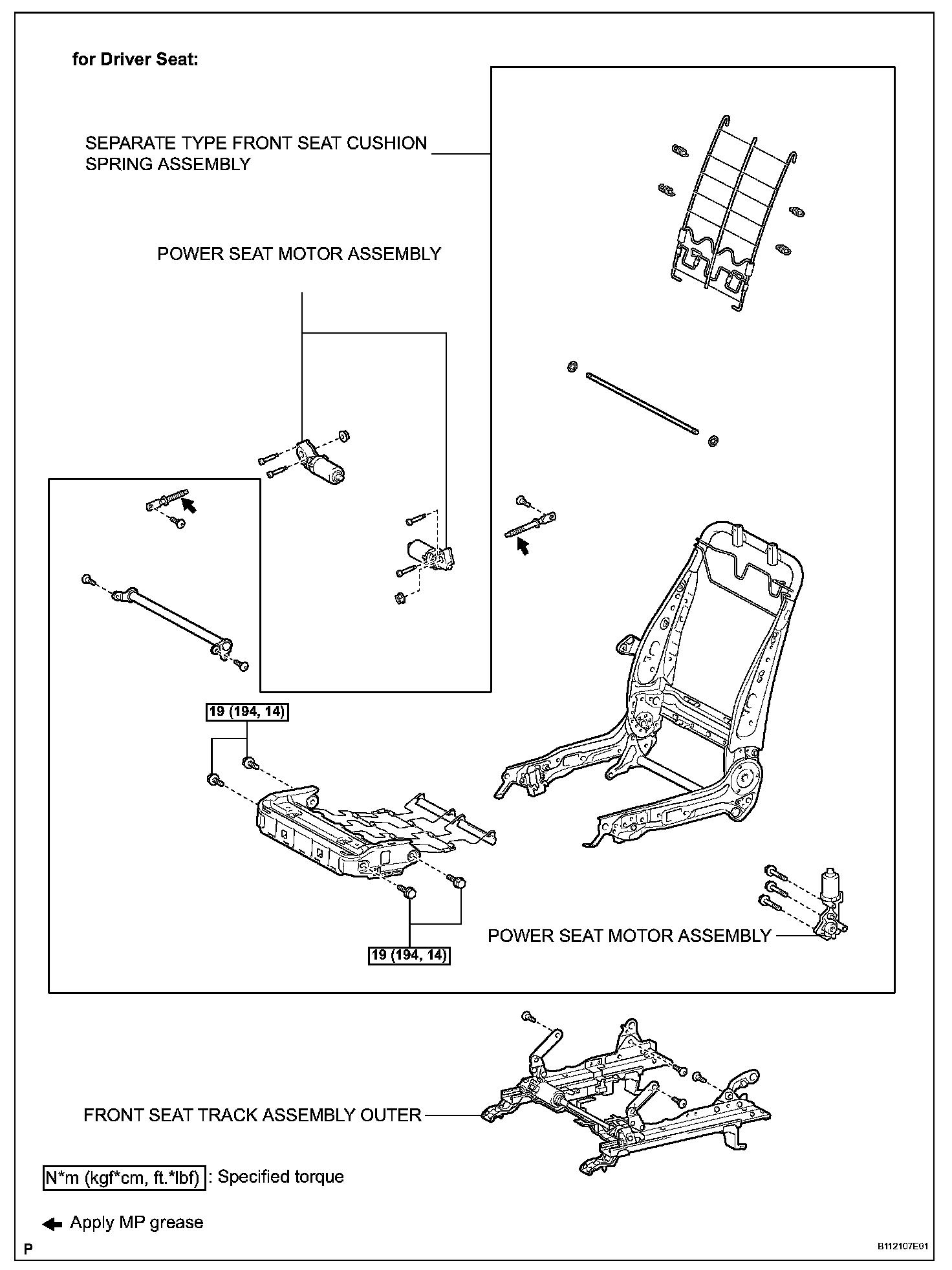

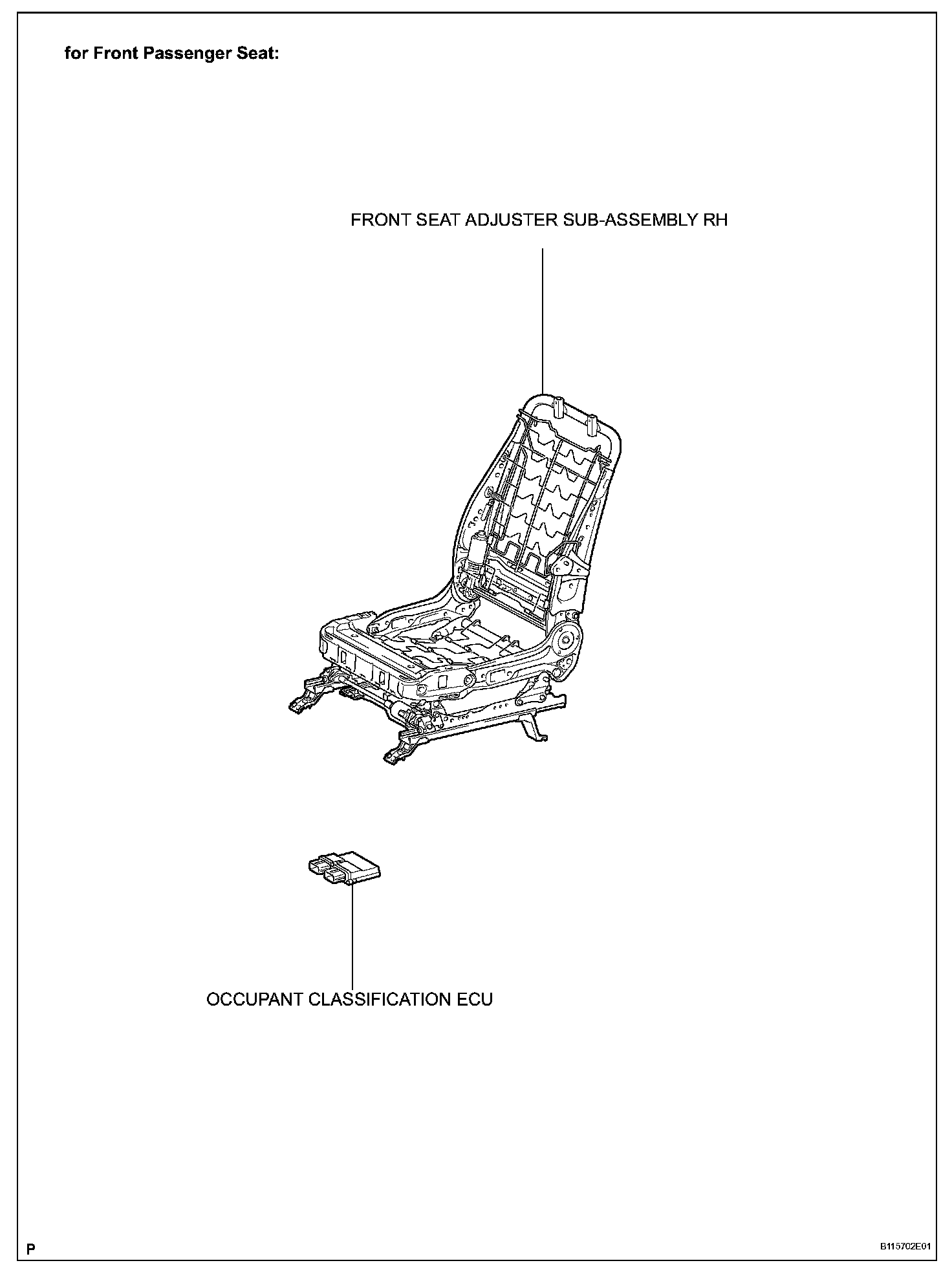

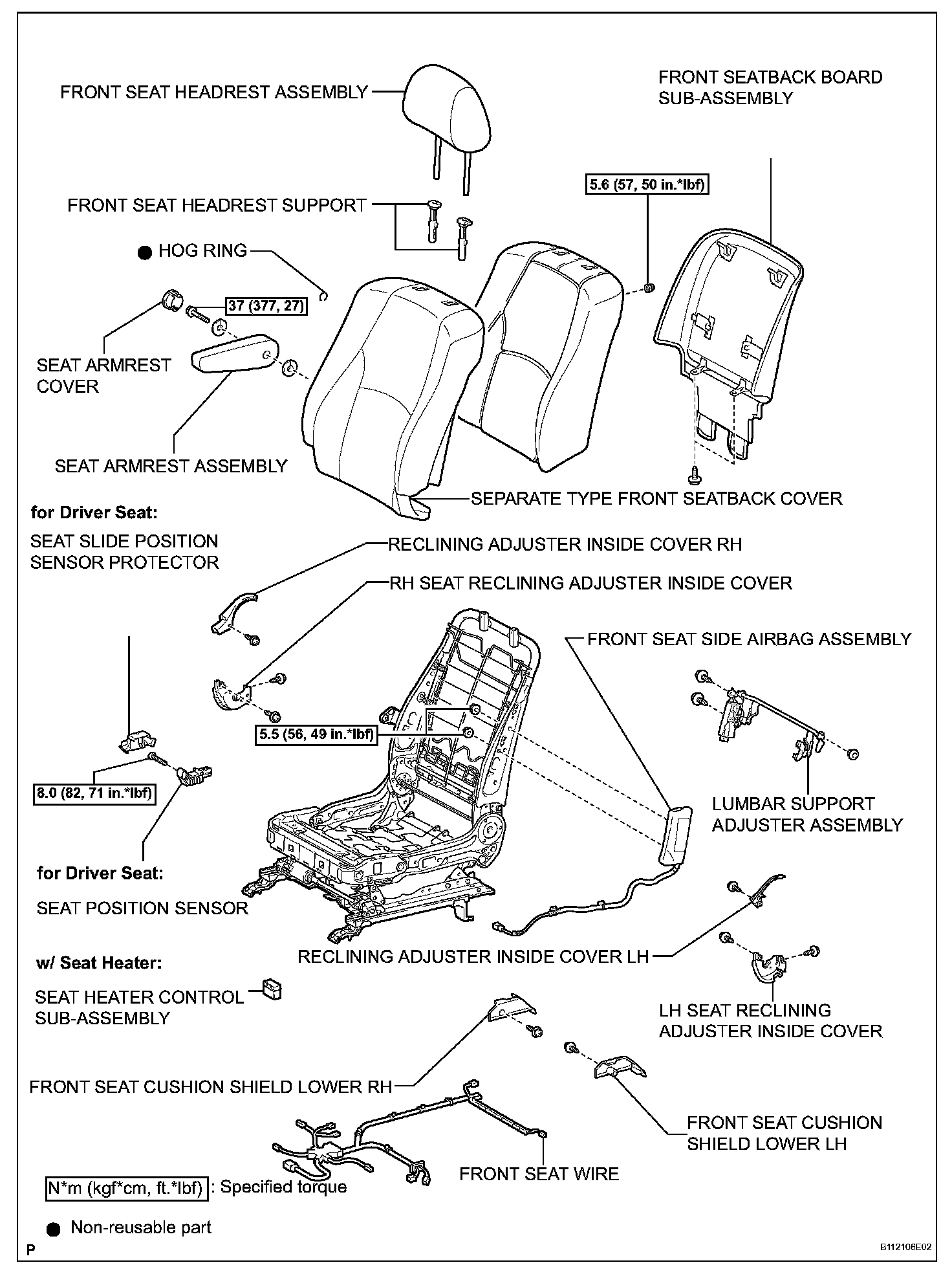

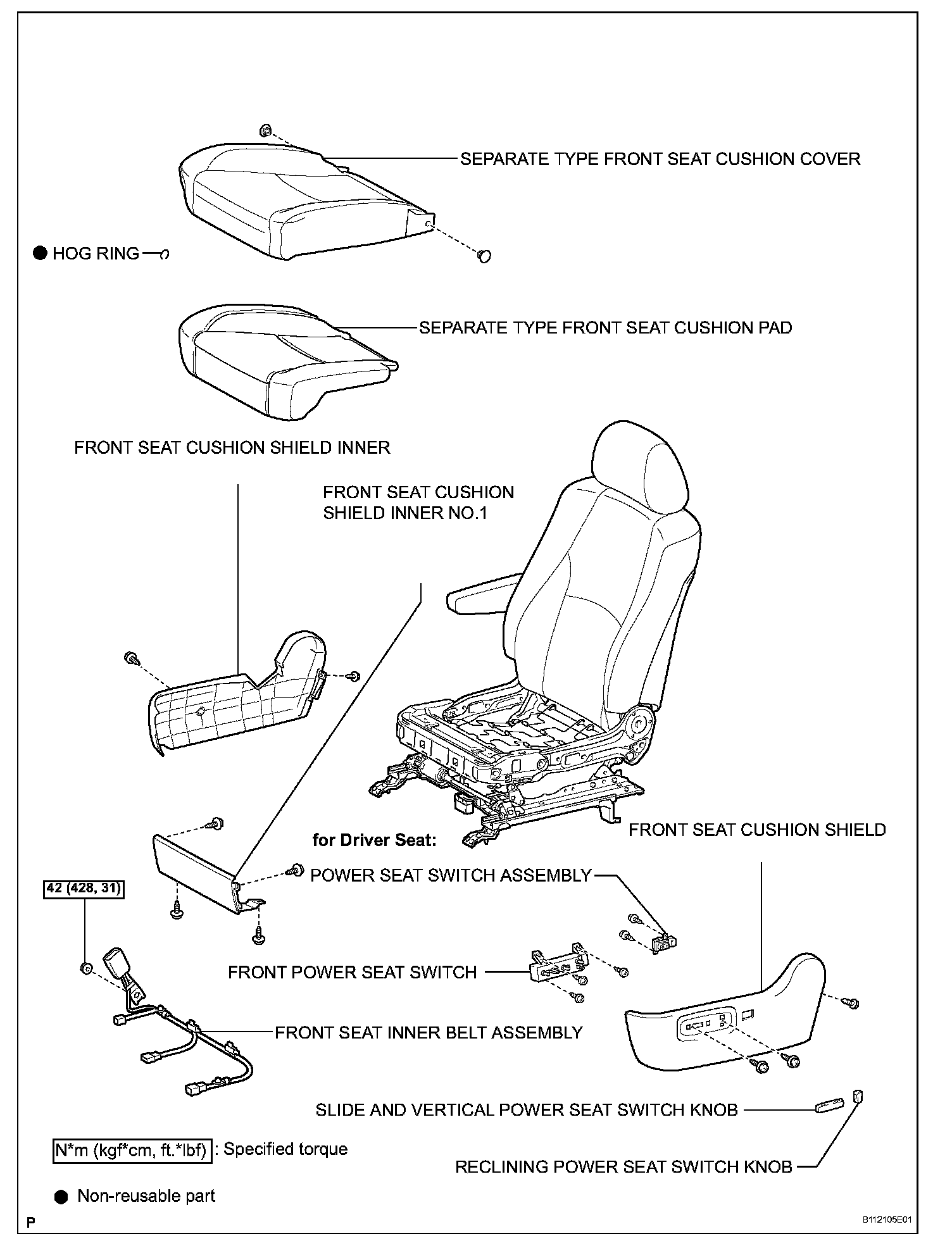

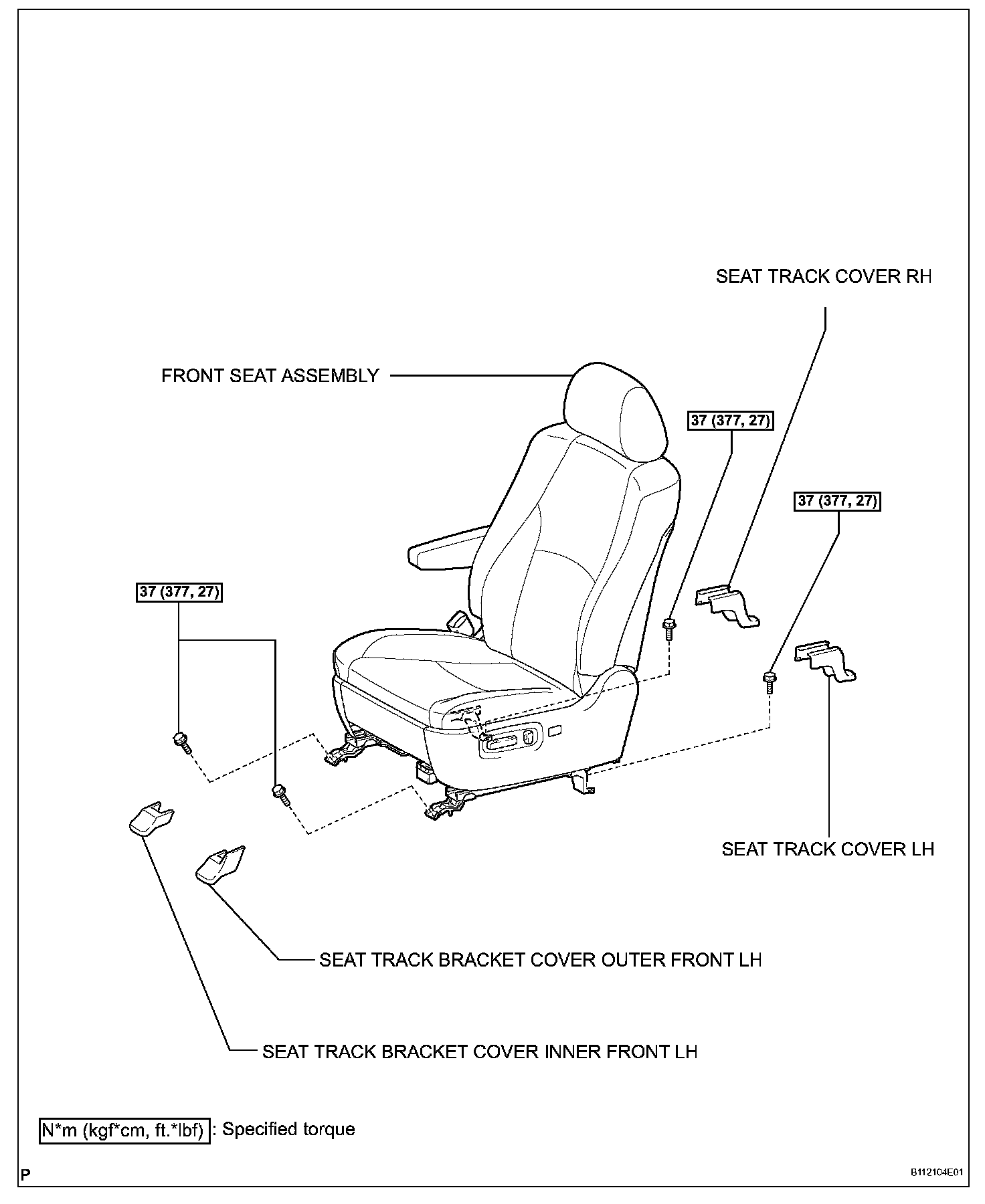

Front Seat Assembly:



Front Seat Assembly:



Front Seat Assembly:



Front Seat Assembly:



Front Seat Assembly:
