CAN Main Bus Line For Disconnection

CAN Main Bus Line for Disconnection

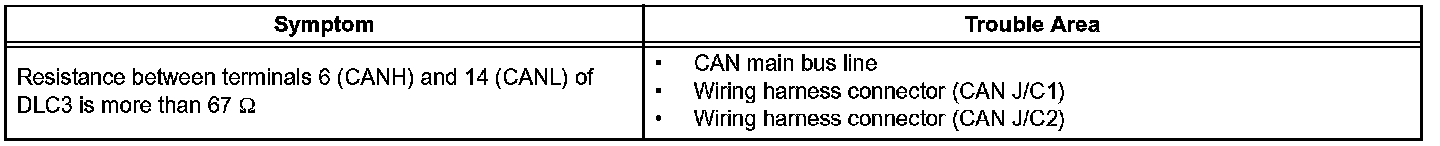

DESCRIPTION

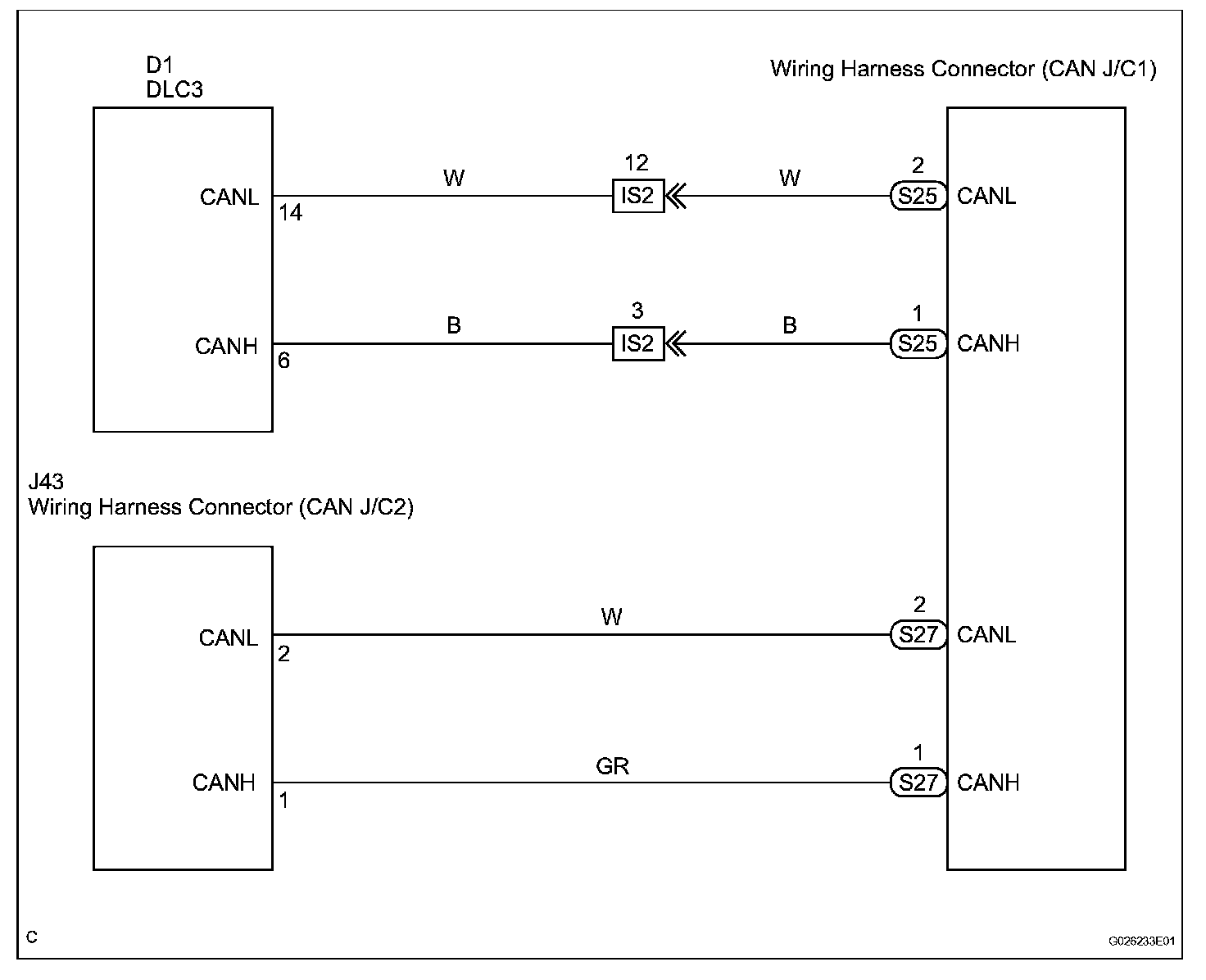

Wiring Diagram:

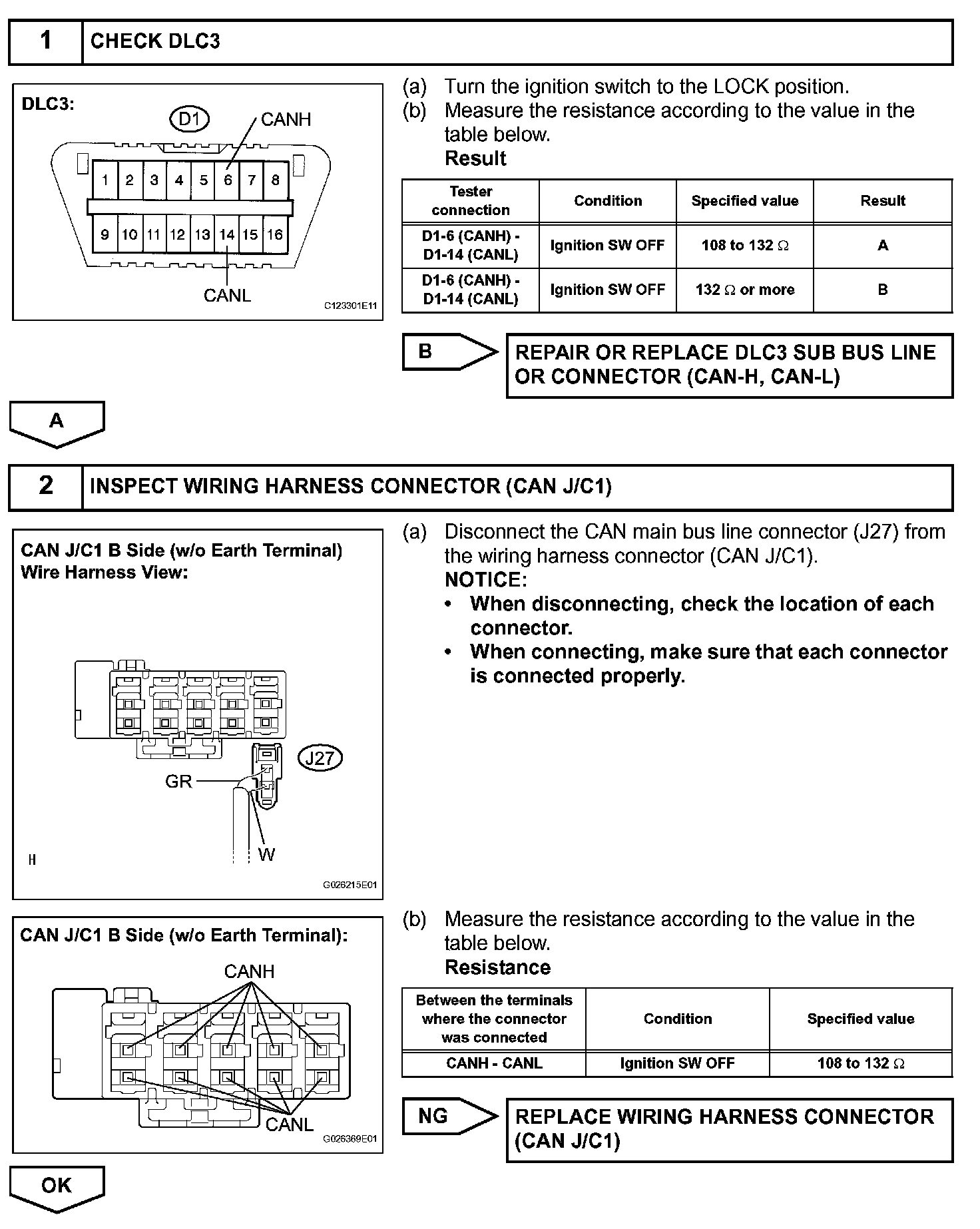

Step 1-2:

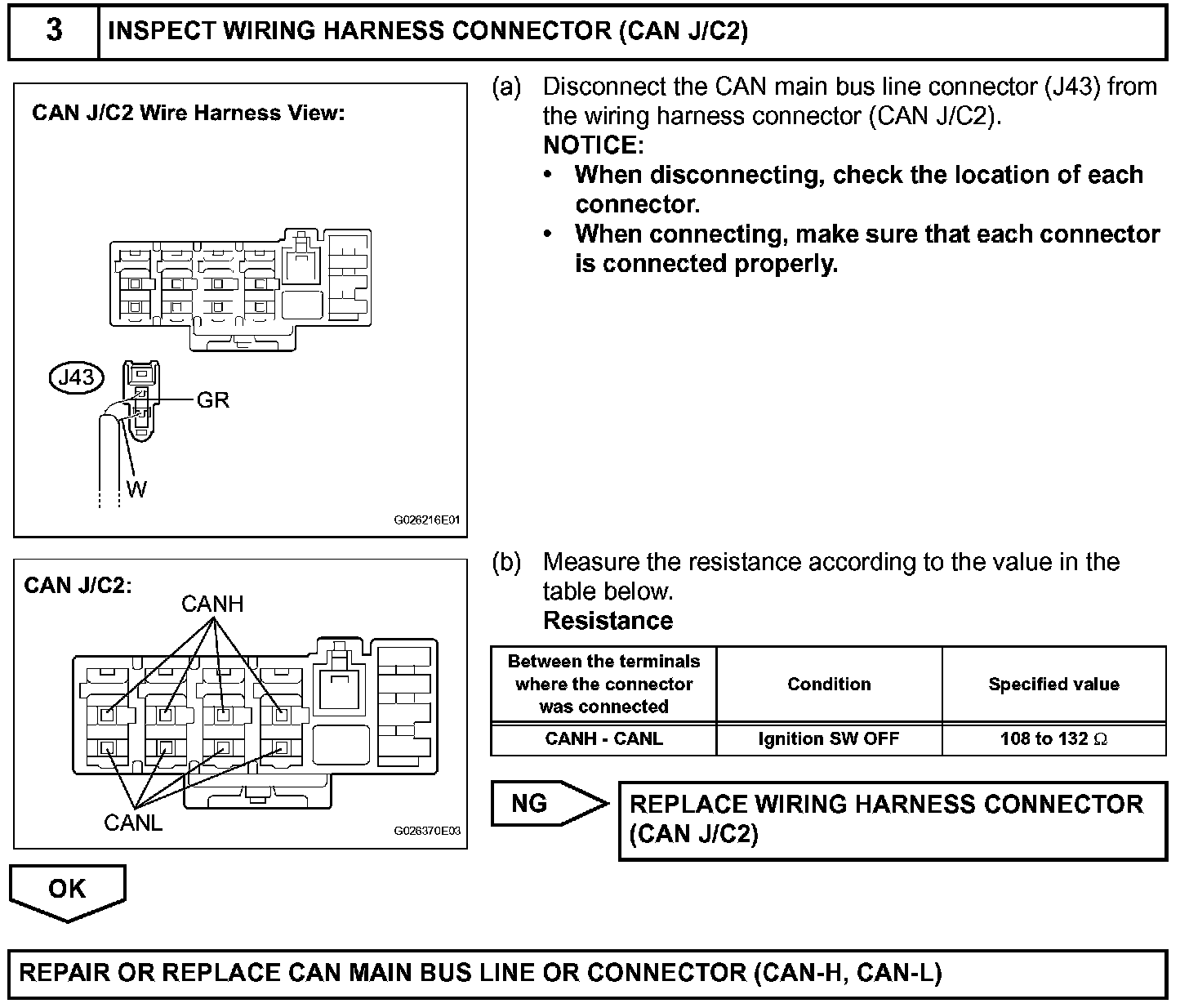

Step 3:




INSPECTION PROCEDURE

HINT: Identify the connector to be checked by its color of the wire and shape of the junction on the CAN J/C because the locations of the connectors to the CAN J/C are confusing.
