Skid Control ECU Communication Stop Mode

Skid Control ECU Communication Stop Mode

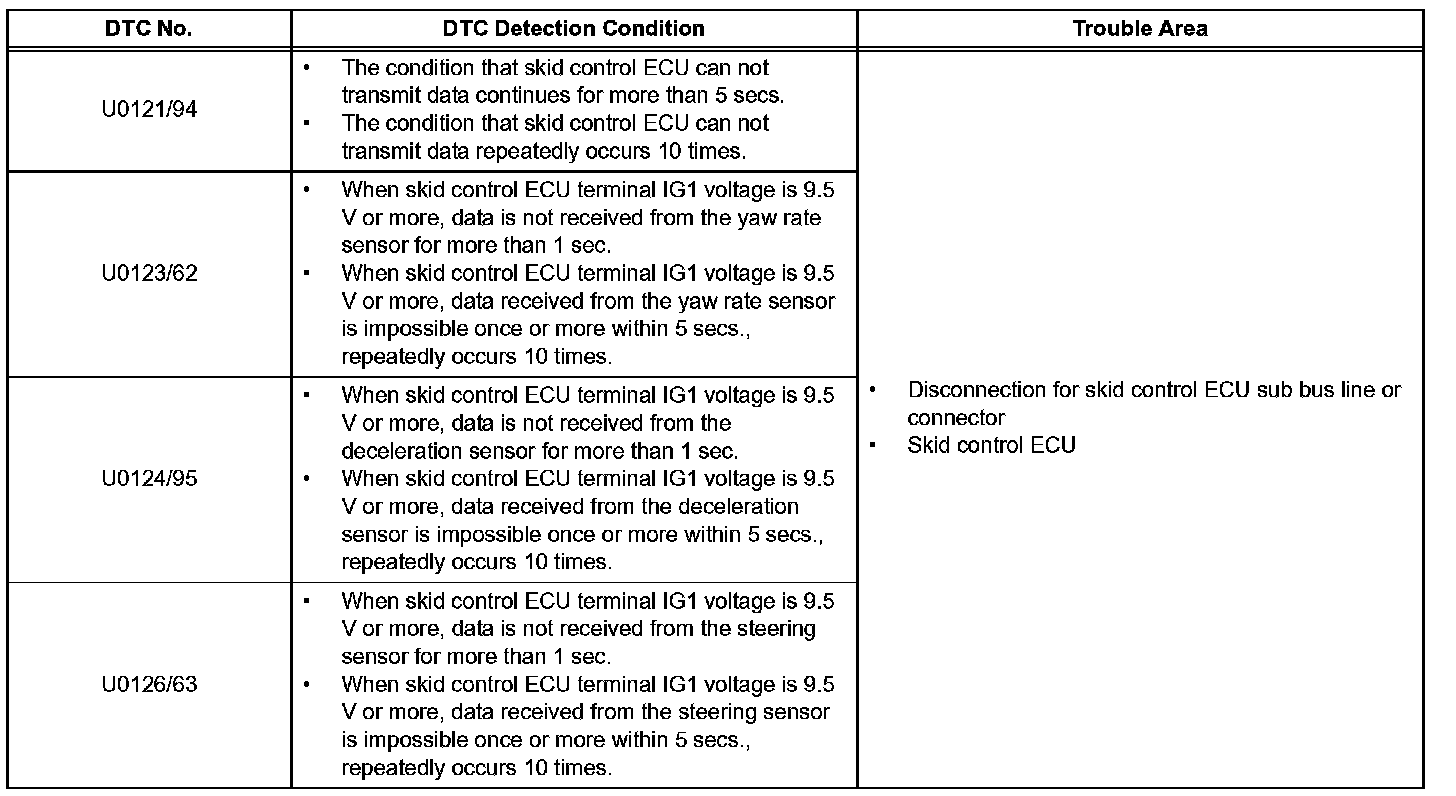

DTC Detection Condition:




DESCRIPTION

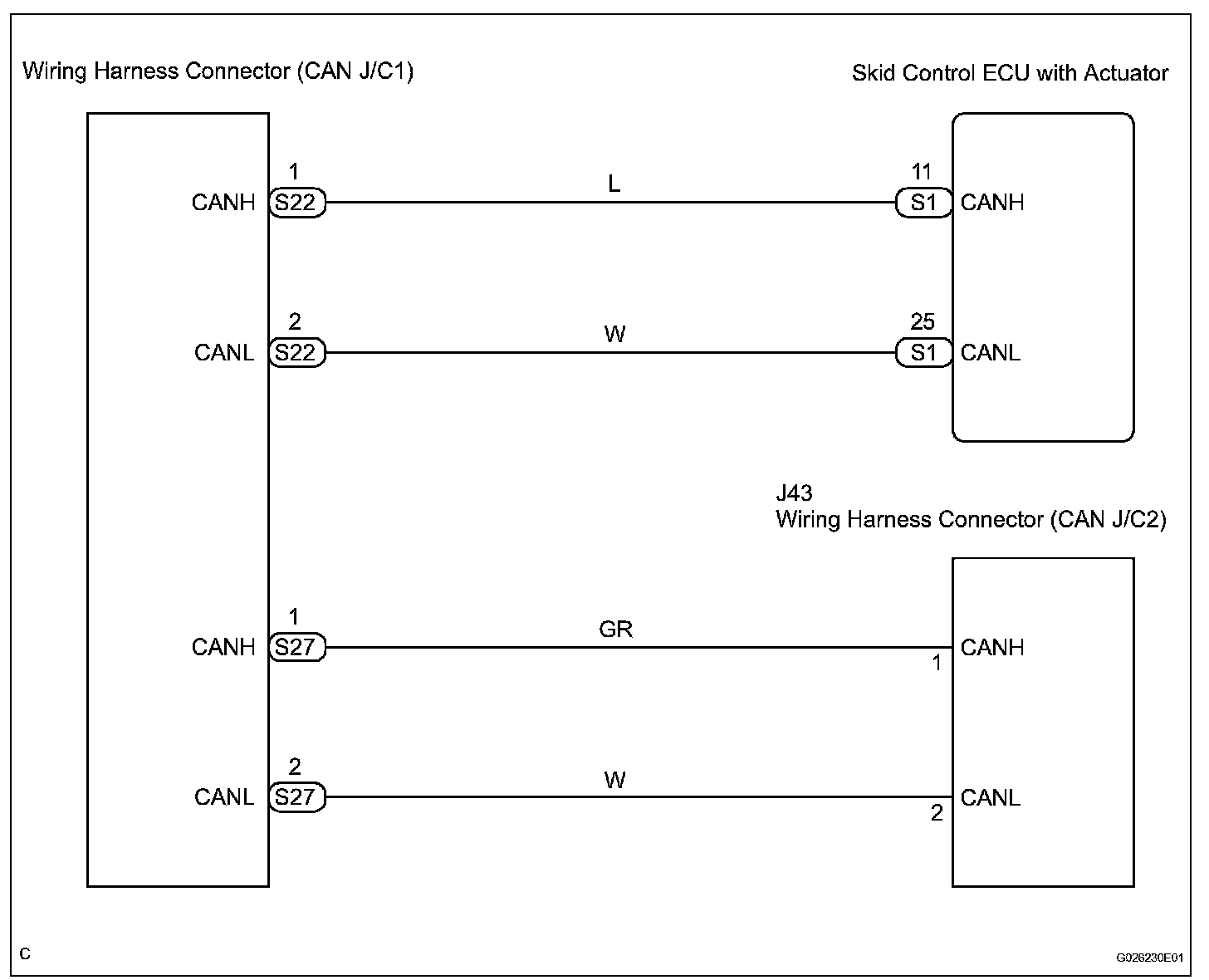

Wiring Diagram:

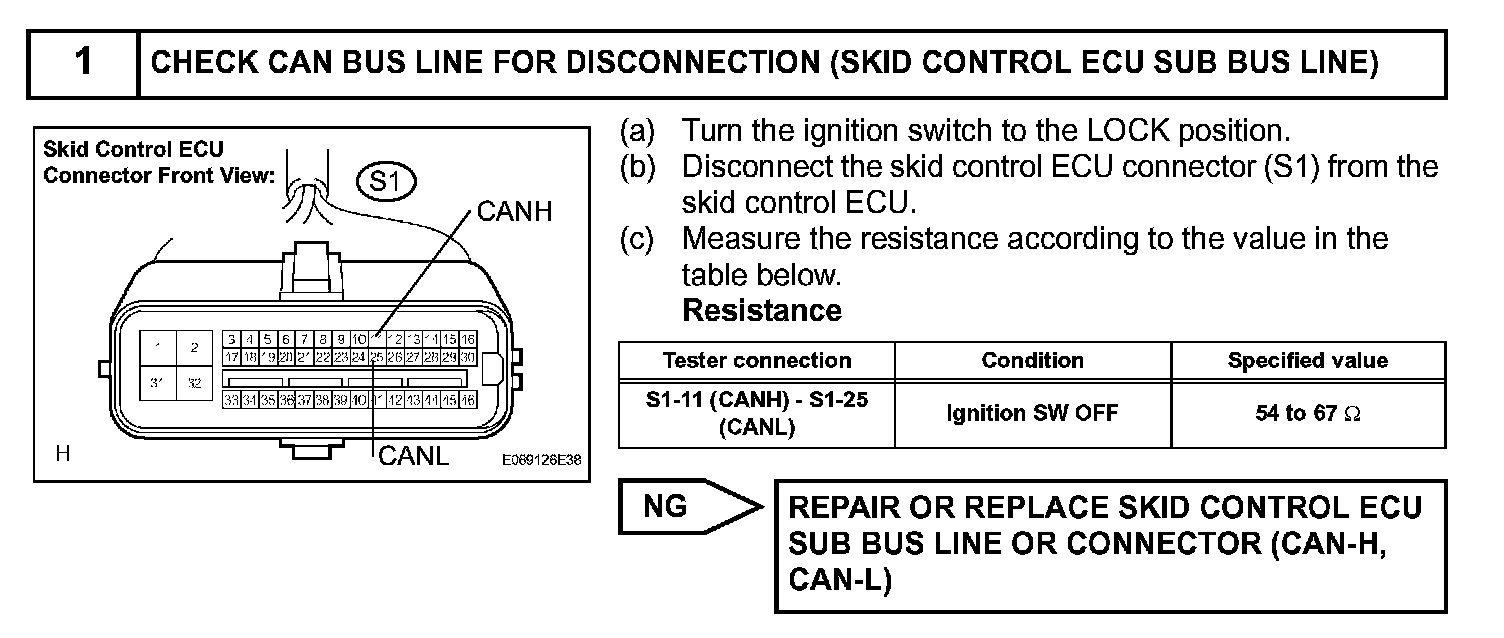

Step 1:

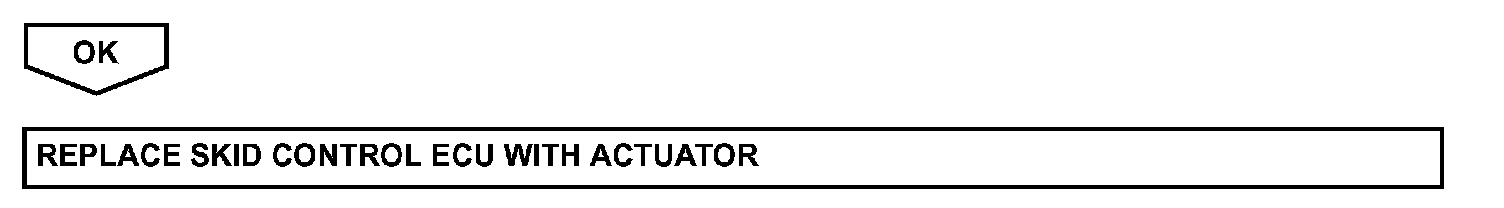

Step 1(continued):




INSPECTION PROCEDURE
